23. Programme unit
438 9145-41/03
03.11
PAY PER WASH ALARM 0
LOCK TEST DELAY 0:10
DRAIN TIME WHEN OVERFILL 0:05
OIL LUBRICATION HOURS 100
PULSE TIME OIL LUBR. SEC 0:01
AMOUNT OF I/O MODULES (1-3) 3
DELAY CLEAR DOOR TEXT 04:00
MAX DRAIN TIME 4:00
TIMEOUT DURING PAUSE 1:00
MINIMUM TEMPERATURE INCREASE 5°C
DOOR OPEN DELAY FOR MOTOR LOST 1:00
ERROR, NO WATER Y
1 2 3
4 5 6
7 8 9
0
PAY PER WASH ALARM 0
LOCK TEST DELAY 0:10
DRAIN TIME WHEN OVERFILL 0:05
OIL LUBRICATION HOURS 100
PULSE TIME OIL LUBR. SEC 0:01
AMOUNT OF I/O MODULES (1-3) 3
DELAY CLEAR DOOR TEXT 04:00
MAX DRAIN TIME 4:00
TIMEOUT DURING PAUSE 1:00
MINIMUM TEMPERATURE INCREASE 5°C
DOOR OPEN DELAY FOR MOTOR LOST 1:00
ERROR, NO WATER Y
1 2 3
4 5 6
7 8 9
0

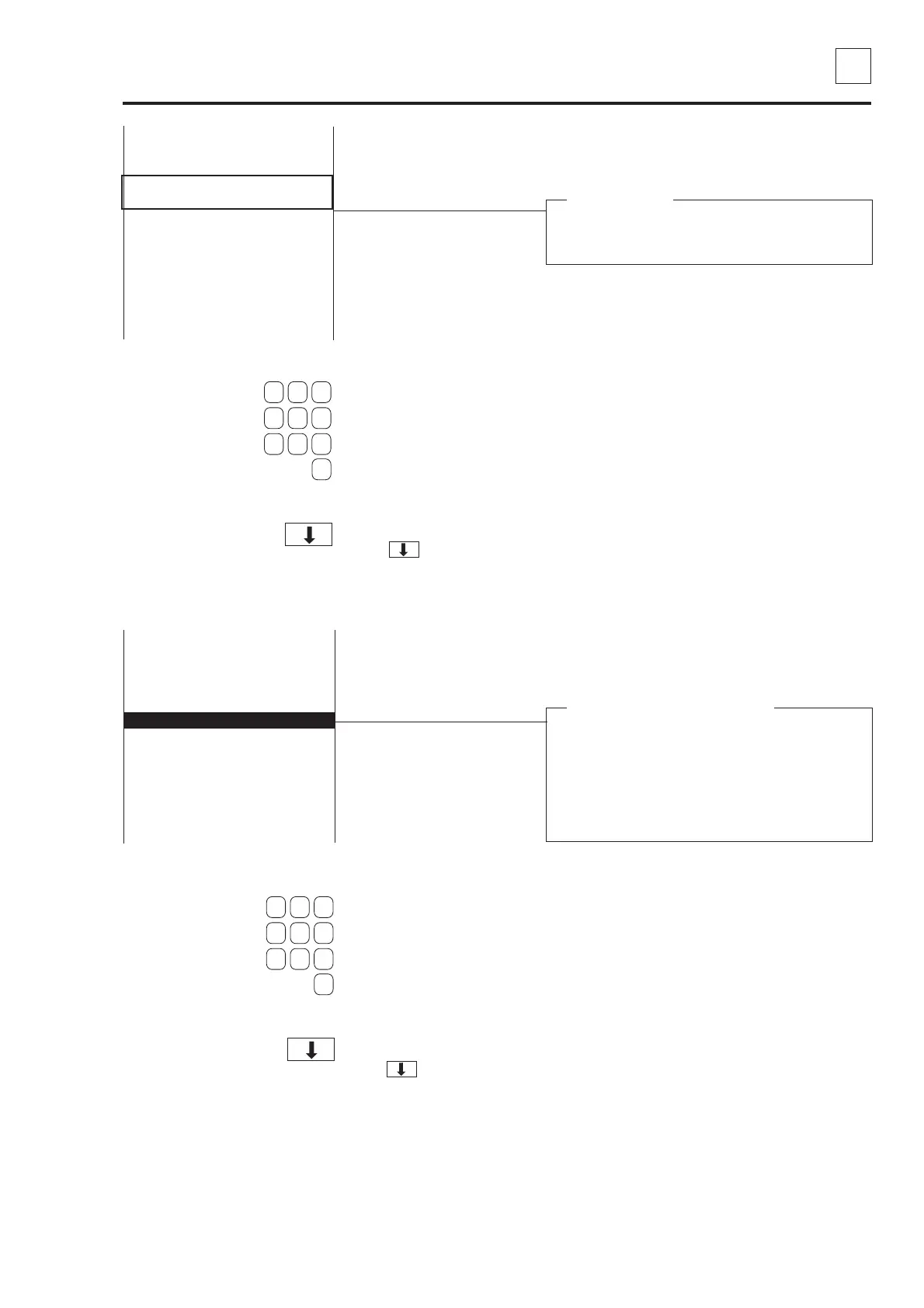

Oil lubrication
Here you determine the lubrication interval and
pulse time for the oil lubrication systems used on
larger washer extractors.
Number of I/O circuit boards
Here you specify how many I/O circuit boards the
PCU has.
Different types of washer extractor may be
equipped with one, two or three I/O boards,
according to how many inputs and outputs the
particular machine needs (e.g. for external liquid
supply, tilt function and extra water valves).
Use the numeric keys to
enter the value.
If you make a mistake while
entering digits:
Press ERASE.
When you have finished:
Press .
Use the numeric keys to
enter the value.
If you make a mistake while
entering digits:
Press ERASE.
When you have finished:
Press .
