2. The User Interface
10
iConnect User Manual


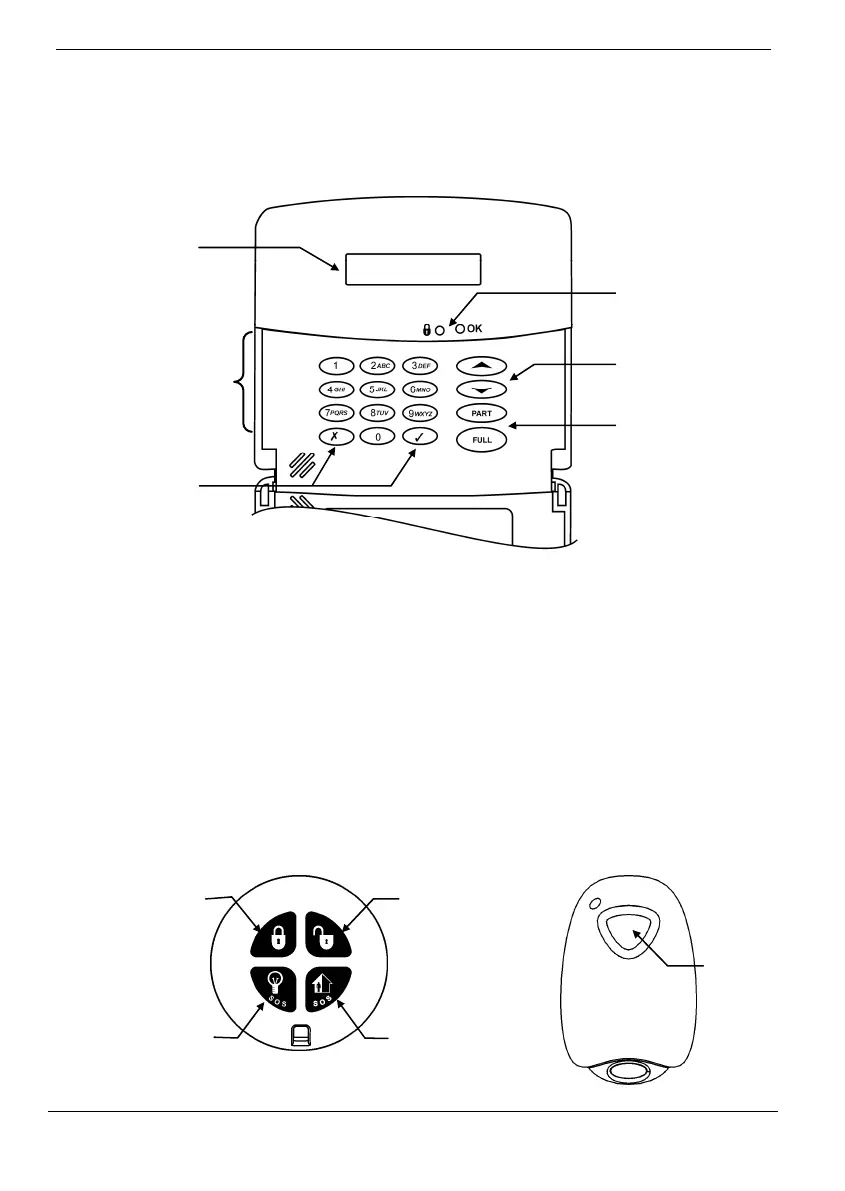

2.4. LCD Keypad
In addition to the front panel keypad, your system may include one or more LCD
keypads.ThelayoutoftheLCDkeypadissimilartothefrontpanelkeypadandmostof
thefunctionalityisidentical.

2.5. Keyfobs
The iConnect supports two types of keyfob transmitter. The EL‐2714 includes two
buttons(B1andB2)thatyoucanprogramindividually.ThedefaultfunctionsforB1and
B2 buttons are arming functions. Arming functions of the keyfob for partitioned and
unpartitioned systems are described in p. 17, Arming with the Keyfob. Alternatively,
your installer can program these buttons to control a specific HA unit or PGM output.
TheEL‐2611hasonebuttonusedforMedicalAlarm.

Thefunctionsofthebuttonsoneachkeyfobareshownbelow:

EL-2714 EL-2611
Medical
B2: Perimeter Arm,
HA/PGM, Arm/Disarm
Partition 2
B1: Part Arm, HA/PGM,
Arm/Disarm
Partition 1
Full Arm
Disarm
LCD
Display
Menu
Navigation
Keys
Menu
Navigation
Keys
System
Status
LEDs
Arming
Keys
Alphanumeric
Keypad
