11.6.3 SUS
Sustain Level sets the sustain level of the filter envelope. (0–127)
11.6.4 REL
Release Time sets the length of the release phase of the filter envelope. (0–126, INF)
11.6.5 FREQ
Frequency sets the cuto frequency of the multimode filter. (0.00–127.00)
11.6.6 RESO
Resonance sets the resonance behavior of the filter. Resonance introduces a peak in the spectrum at
the cuto frequency. (0.00–127.00)
11.7.7 TYPE
Filter Type selects the type of filter. (OFF, 2-pole (12 dB) Lowpass, 2-pole (12 dB) Highpass, 4 pole (24
dB) Lowpass)
11.7.8 ENV
Env. Depth sets the amount of cuto frequency modulation from the filter envelope. The parameter is
bipolar, both negative and positive modulation depths are available. Range (64.00–63.00)
11.7 FLTR PAGE 2
On the FILTER page 2, you find the parameters that control the 1-pole (6 dB) base-width filter.
Press [FLTR] twice to access this parameter page.
The base-width filter is basically a Highpass filter and a Lowpass filter connected in series. The filters BASE
and WIDTH parameters defines the base-width filters frequency range.

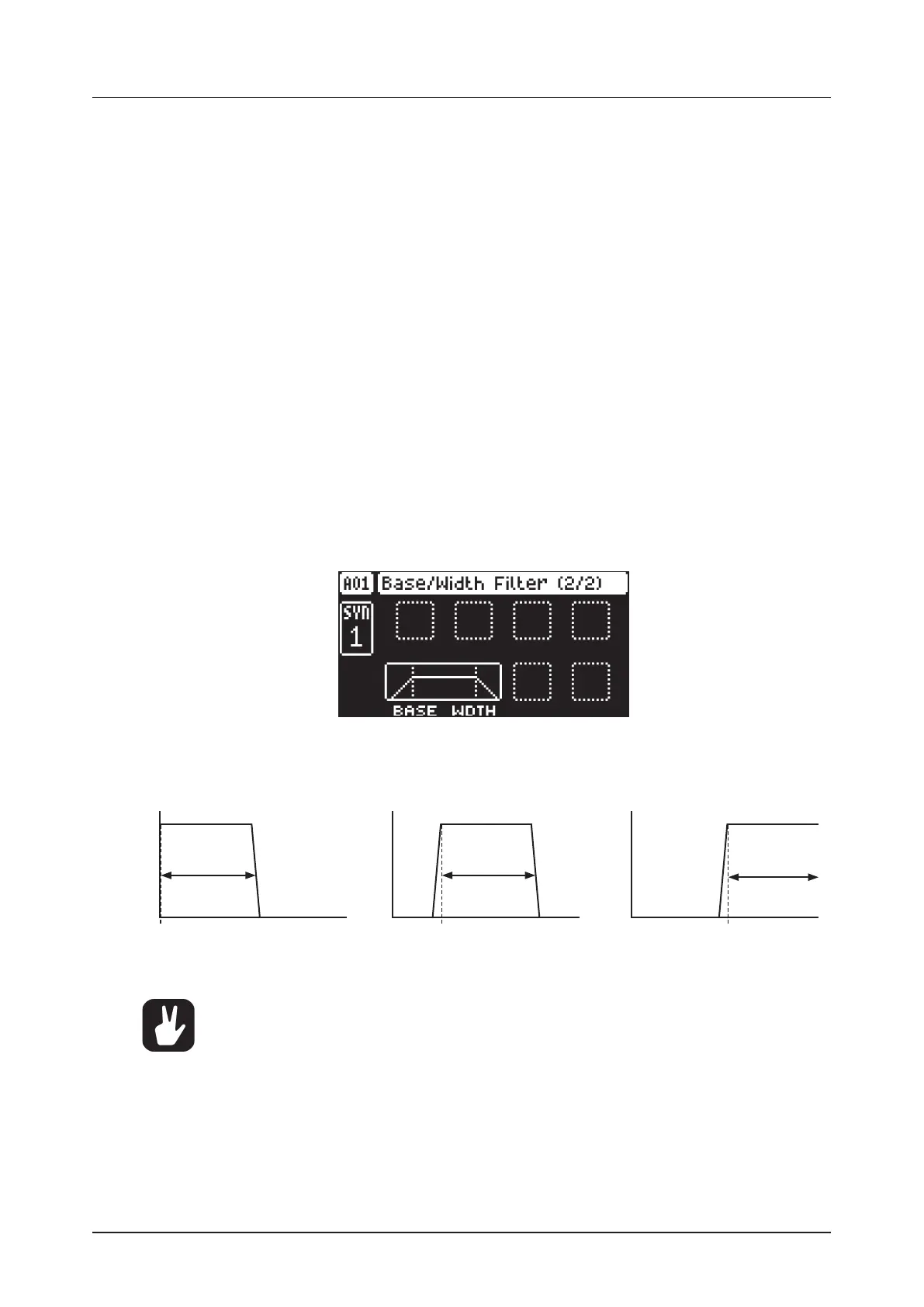

Examples of how the BASE and WIDTH parameters aect the filter frequency range:
FREQUENCY
AMPLITUDE
Base
Width
FREQUENCY
AMPLITUDE
Base
Width
FREQUENCY
AMPLITUDE
Base
Width
• With BASE set to 0, the filter functions as a low pass filter with WIDTH adjusting the fre-
quency range.
• With WIDTH set to 127, the filter functions as a high pass filter with BASE adjusting the
frequency range.
• With BASE set to 0 and WIDTH set to 127 the filter does not aect the sound.
11.7.1 BASE
Sets the base frequency of the filter. (0–127)
11.7.2 WIDTH
Sets the frequency width above the base frequency. (0–127)
