Eliwell EWCM 4150 - Inverter Compressor Control

One or more digital inputs can be configured as compressor block inputs:
 Digital inputs DI1…DI7.
 Analogue inputs AI3 …AI4 if configured as digital inputs.
It is also possible to configure a relay as compressor INVERTER enabling output.
Inverter compressor control
The operating mode depends on parameter ST02. Cold mode St02=1. Hot mode St02=0.

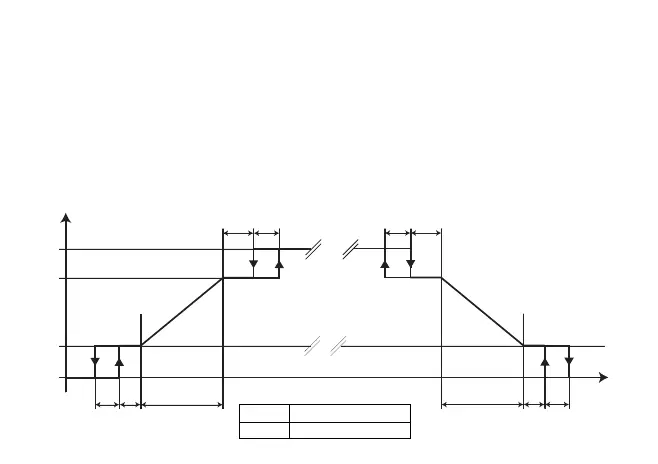

The inverter compressor control is proportional as a function of the inlet probe value. The following diagram
indicates the compressor speed as a function of the regulation probe in the case of regulation with lateral set point
(St01=1). In the case of central set point (St01=0), the proportional band is centred in the set point:
CP06
CP04
CP03
CP00
CP20
CP19
CP18
OFF
CP07CP05
A
B
CP06
CP04
CP03
CP00
CP07 CP05
A
B
Cooling (St02 = 1)
Heating (St02 = 0)
Speed
%
(°C/°F/Bar/Psi)
Ke
y
s
A Minimum cut-off
B Saturation cut-off
32
