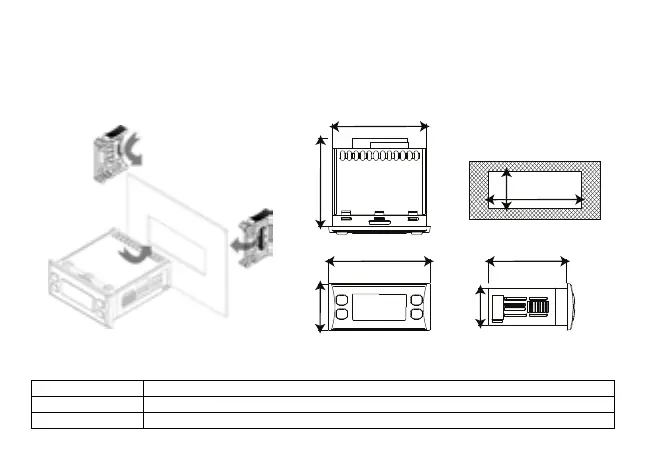

MECHANICAL ASSEMBLY
The instrument is designed for panel mounting. Make a 29x71 mm hole and insert the instrument; secure it with the
special brackets provided. Do not mount the instrument in damp and/or dirt-laden areas; it is suitable for use in
places with ordinary or normal levels of pollution. Keep the area around the instrument cooling slots adequately
ventilated. The TTl serial port is located on the left side of the instrument.
7
WIRING DIAGRAMS
Circuit diagram key
12Va 12Va power supply
5Vc 5Vc power supply for 10A max ratiometric transducer
12Vc Auxiliary 12Vc power supply for AO1 or DO5 output
76.4mm
70mm
28mm
35mm
29mm
71mm
67mm
59mm
