Elmo MX-P User Manual

12
➌ PREPARATION AND CONNECTION
◆SETTING UP

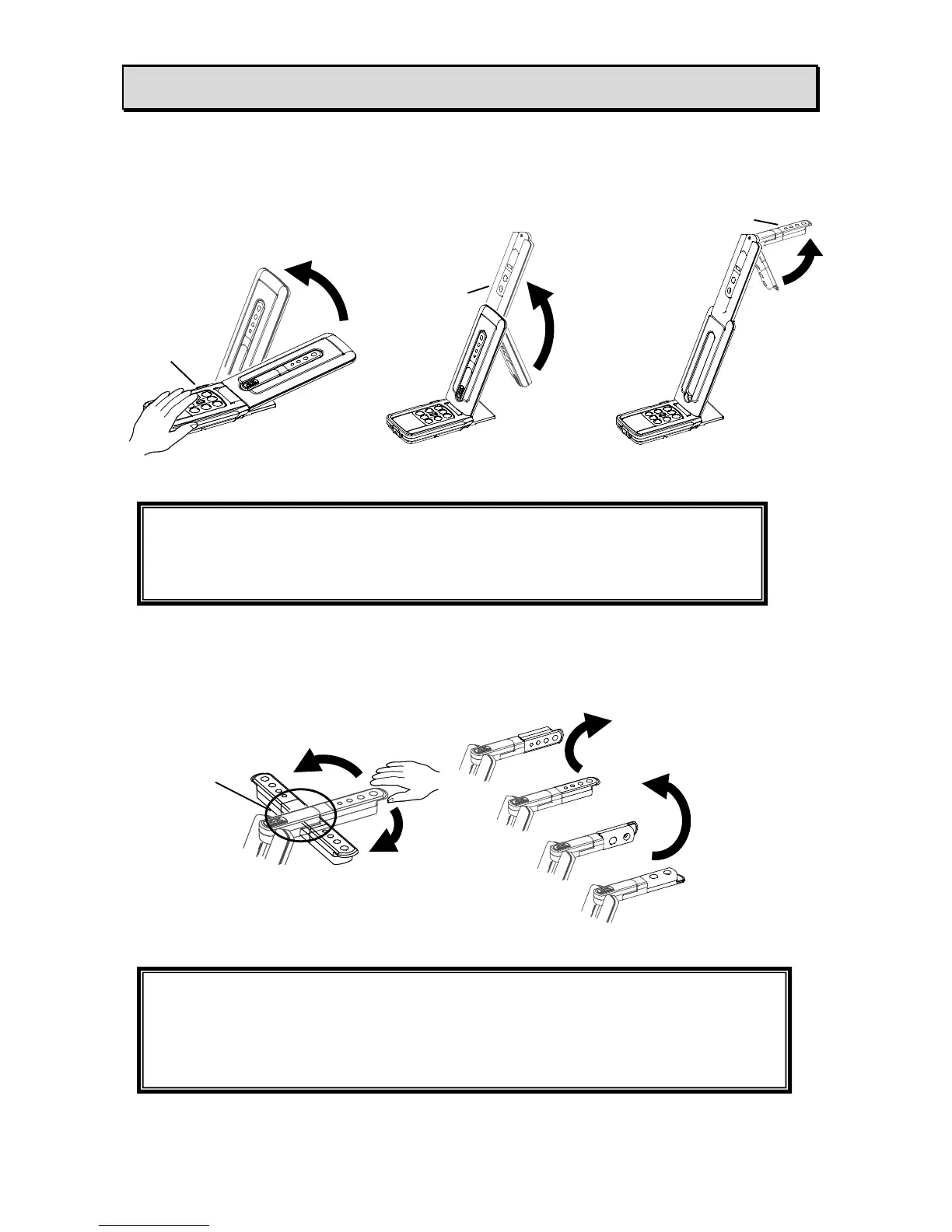

STEP1．Raise the body while holding the operating panel.
STEP2．Raise the arm as indicated by an arrow.
STEP3．Raise the camera head. Set it horizontally.
STEP4. Rotate the camera head according to the shooting direction.
CAUTION
・Be careful not to pinch your fingers when moving the arm.
・Do not hold the arm or camera head when carrying the MX-P.
・Be careful not to give an impact to the camera head.
CAUTION
This product uses static electricity sensitive components.
In order to avoid malfunction from static electricity, hold the edge of the
camera head to rotate the camera head.
Do not touch the rotating part.
STEP４
STEP１
STEP 2
STEP 3
Operating
panel
Camera head
Arm
Rotating part
90°
90°
120°
180°

Elmo MX-P Specifications

General

Auto focus	Yes
Digital zoom	16 x
Shooting area (WxD)	373.3 x 281.9 mm
Lamp type	LED
Product color	White
Sensor type	-
Maximum frame rate	60 fps
Optical sensor size	- \
Supported graphics resolutions	1920 x 1080 (HD 1080), 3840 x 2160
Interface	USB 3.2 Gen 1 (3.1 Gen 1)
USB connector type	Micro-USB B
VGA (D-Sub) output ports	1
Operating voltage	5 V
Power supply type	DC
Power consumption (typical)	4.6 W

Weight and Dimensions

Depth	81.2 mm
Width	324.9 mm
Height	302 mm
Weight	544 g
Dimensions folded (WxDxH)	289.5 x 81.2 x 22.8 mm
