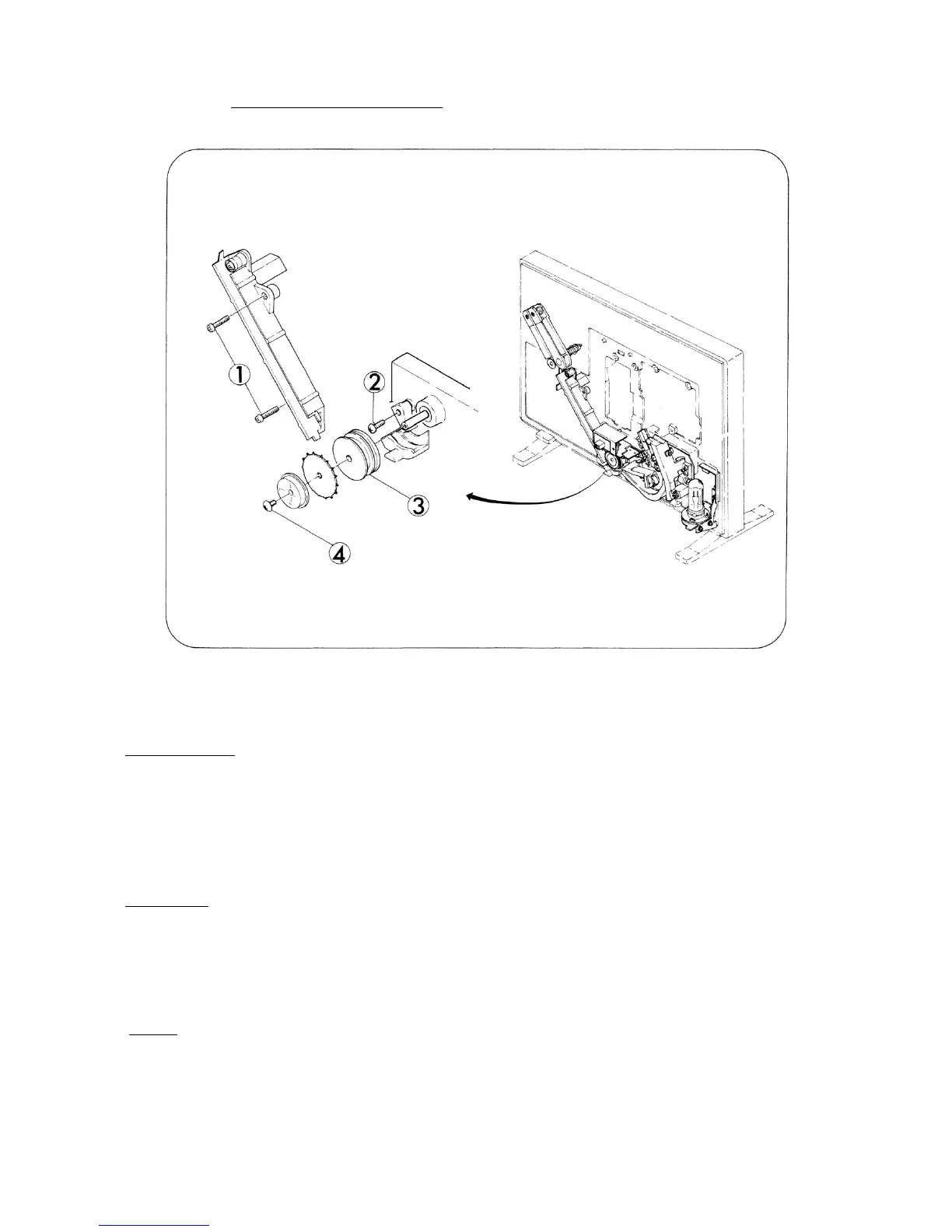

2. SECOND SPROCKET (Fig. 14)
Fig. 14
DISASSEMBLY
1. Take out attaching screws (Fig.14-1,x2) and remove Film guide 4.
2. Take out attaching screw (Fig.14-2) and remove Sprocket presser and Sprocket presser washer.
3. Pull out Second sprocket boss (Fig.14-3) as directed by the arrow in Fig. 14 and take out
attaching screw (Fig.14-4), then remove Second sprocket cap and Second sprocket.
ASSEMBLY
1. Attach Second sprocket and Second sprocket cap and pull out Second sprocket shaft as directed
in Fig. 14, then tighten attaching screw (Fig.14-4).
2. To carry out the rest, follow the reverse way of the above steps. (Disassembly: 2, 1)
NOTE: Even if attaching screw (Fig.14-4) would be loosened or tightened without performing pulled
out Second sprocket shaft, wow in sound reproduction might be developed.
- 14 -
