B. PROJECTION LAMP & LENS

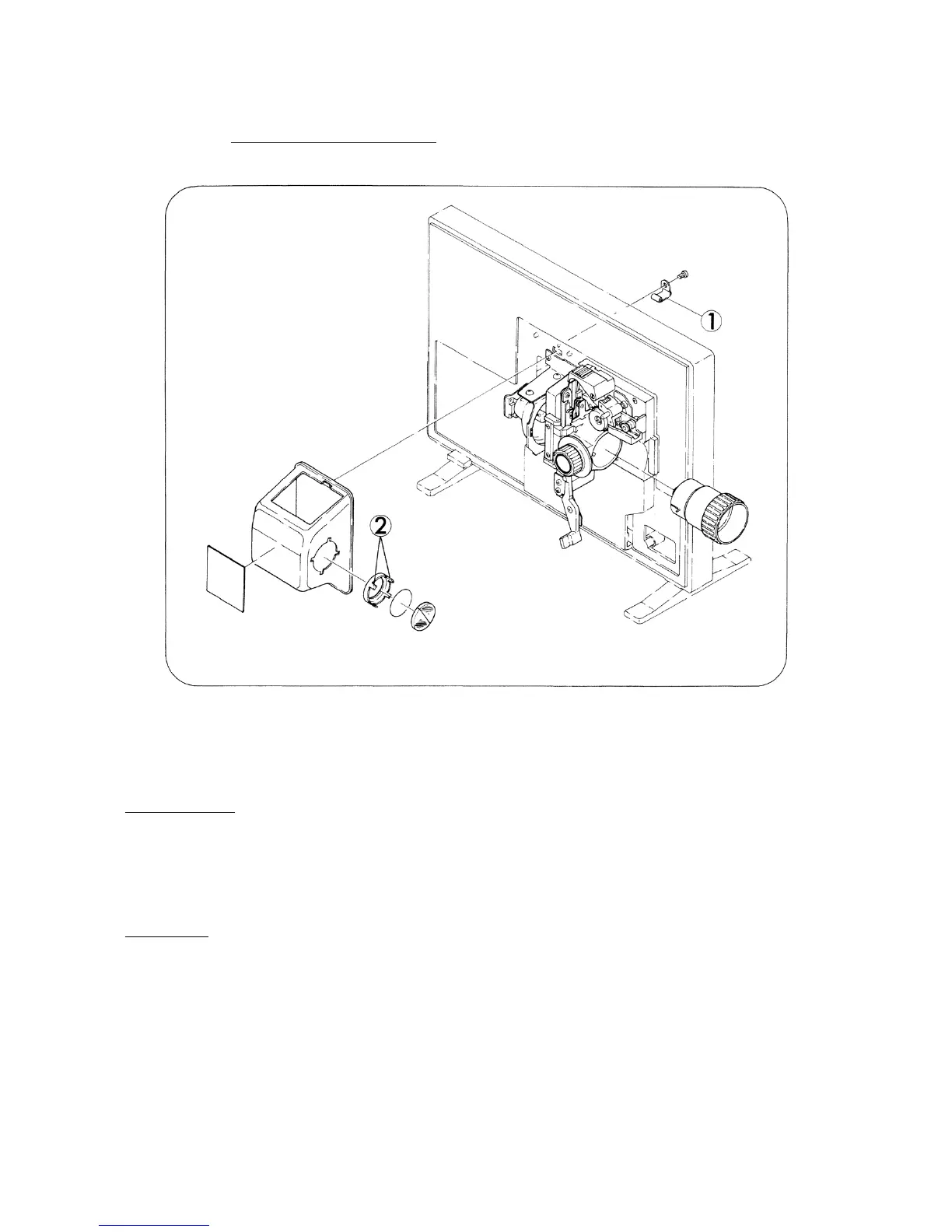

1. HEAT PROOF GLASS (Fig. 5)
Fig. 5
DISASSEMBLY
1. Push lamp cover stopper (Fig.5-1) and take off Lamp cover.
2. Straighten out the latches (Fig.5-2,x4) of Heat proof glass holder and take out LC heat proof
glass and Heat proof glass presser.
ASSEMBLY
1. As to the assembling, follow the reverse way of the above steps.
2. When replace LC heat proof glass, of which divided crack should not be captured by the latches
of Heat proof glass holder.
