Elmo st-I200 - Disassembly & Assembly; Front & Rear Arm

I. DISASSEMBLY & ASSEMBLY
A. FRONT & REAR ARM
1. FRONT ARM (Fig. 1)

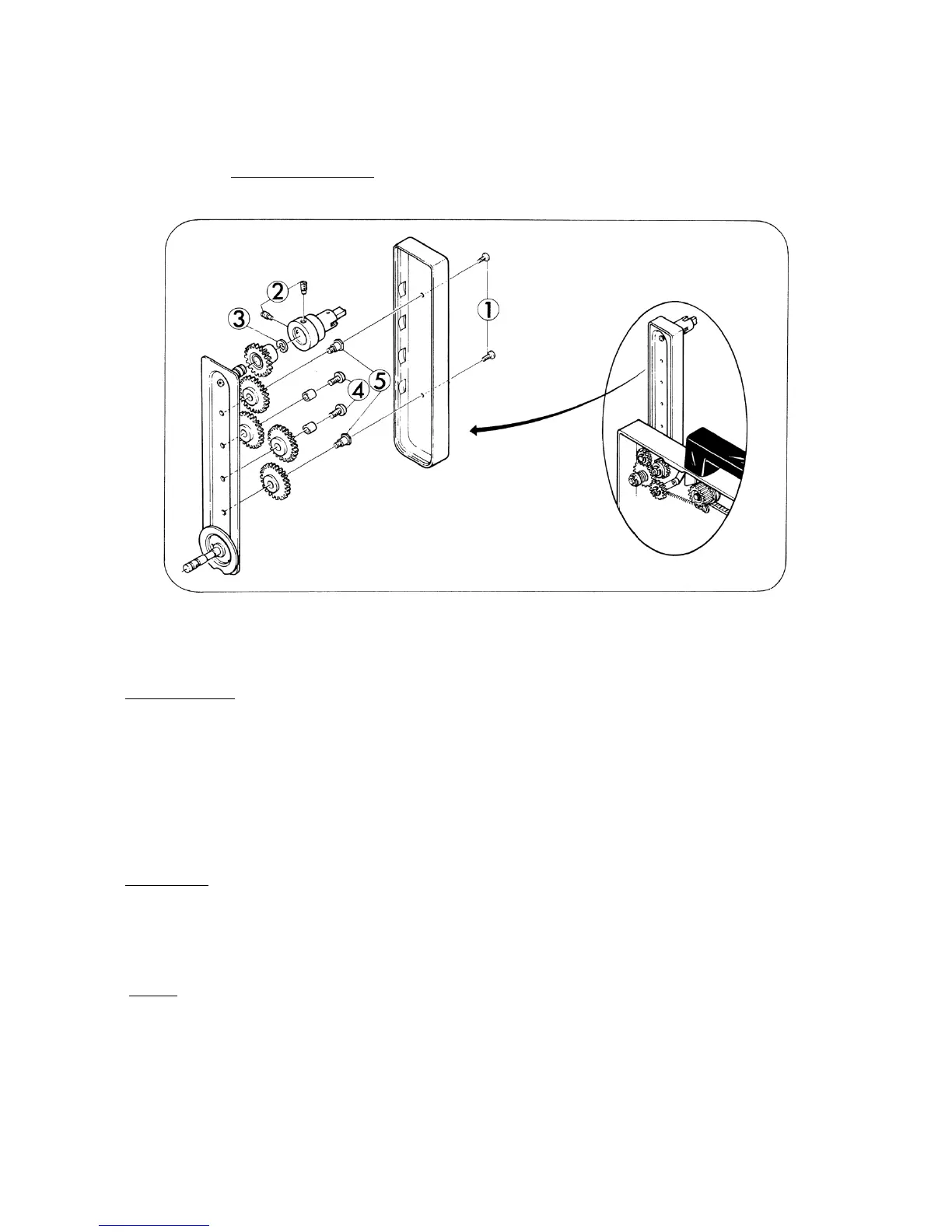

Fig. 1
DISASSEMBLY
1. Take out attaching screws (Fig.l-l,x2) and remove Front arm.
2. Take out Reel shaft pins (Fig.1-2,x2) and remove Reel shaft assy.
3. Take out attaching E-ring (Fig.1-3) and remove Reel shaft gear.
4. Take out attaching screws (Fig.1-4,x2) and remove Arm gears (x2).
5. Take out Arm gear shafts (Fig.1-5,x2) and remove Arm gears (x2).
ASSEMBLY
1. As to the assembling, follow the reverse way of the above steps.
2. Lubricate all the gears with aluminum grease.
NOTE: In comparison with the rear arm, Front arm, Front arm base plate and Front arm shaft gear
are fundamentally different, but otherwise same.
