Elna International Corps. SA 6004 Service manual

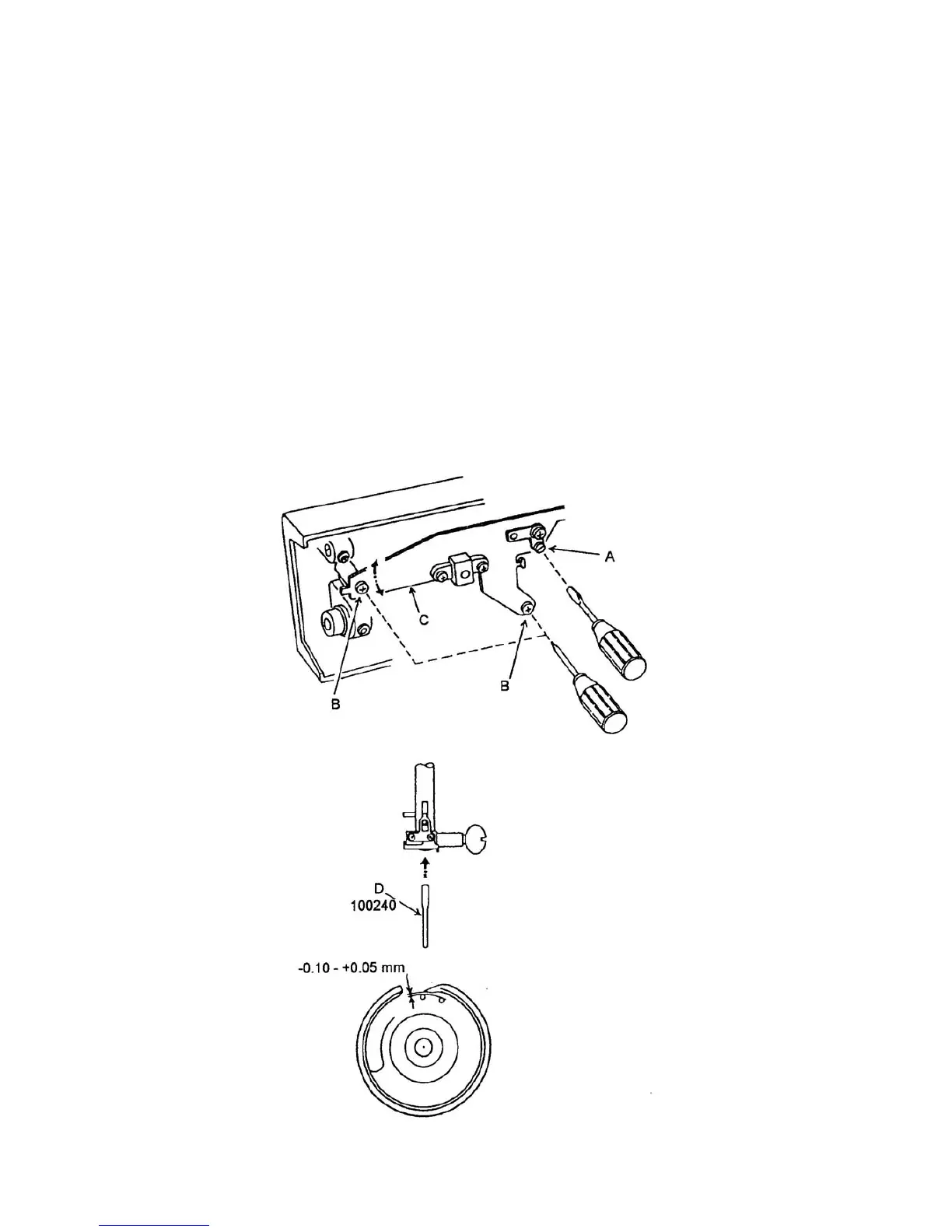

CLEARANCE BEWEEN NEEDLE AND HOOK
The clearance between needle and shuttle hook should be -0.10 mm to +0.05 mm. If not,
adjust as follows:
1. Remove the needie plate and bobbin case
2. Replace the needie with master needle D
3. Turn on the power switch and select pattern 14
4. Loosen the set screws B and slightly loosen the hinge screw A
5. Turn the handwheel and adjust the clearance between the master needle and the point of
shuttle hook in the left and right needle positions to -0.1 mm to +0.05 mm by moving the
shuttle hook set plate C up or down.
6. Tighten the set screws A and B
7. Replace the master needie D with the needle
8. Insert the bobbin case and attach the needle plate
Page 09
