STRETCH STITCH BALANCE

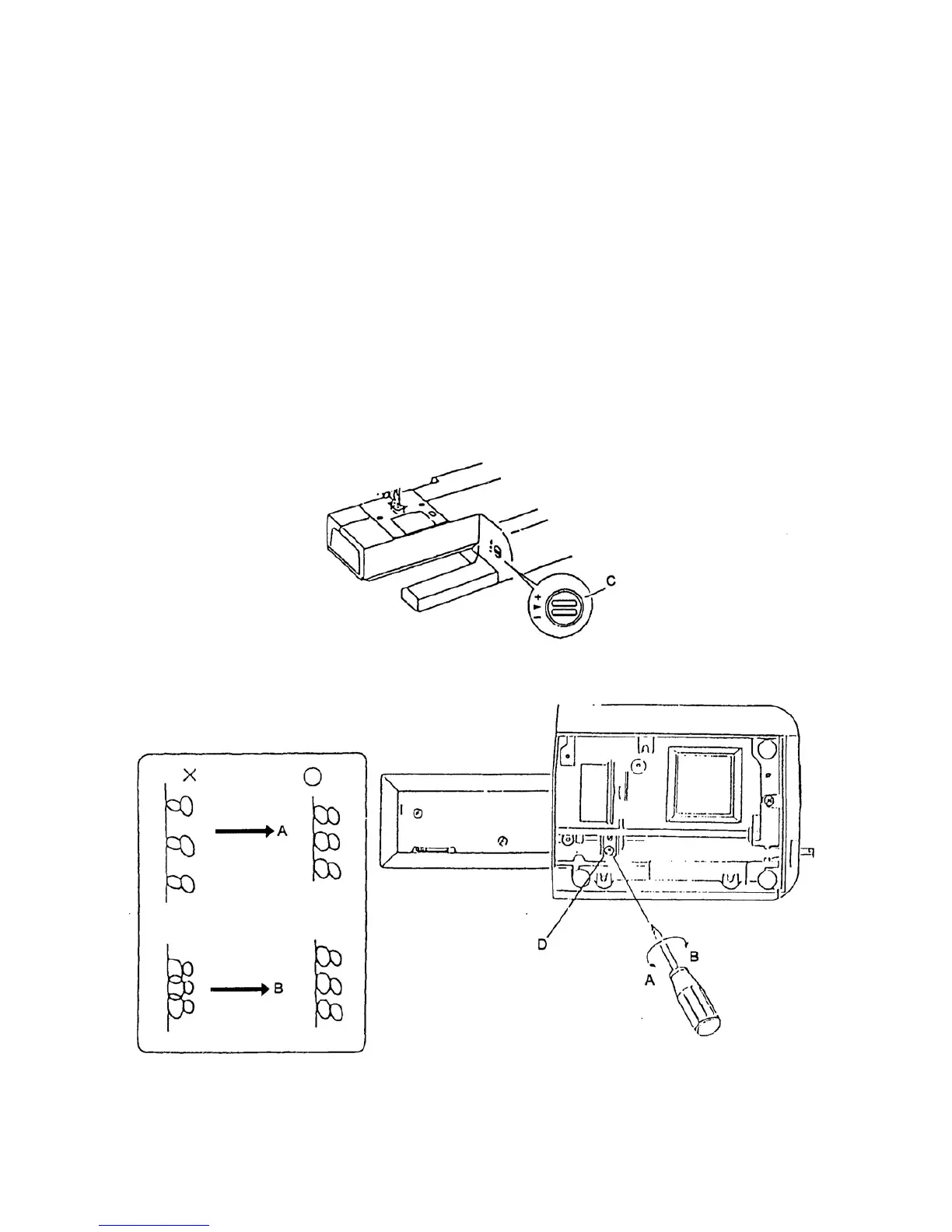

When pattern "8" is sewn with the feed balancing dial D at the normal setting mark (►) the
sewn pattern should be as indicated in the mark 0 in the following figure.
1. Set the adjustable pattern mode.
(Turn on the power switch while pressing the reverse button. Choose pattern 8
within 2.5 seconds. Display screen should read "CHECK PATTERN 8").
2. Set the feed balancing dial at normal setting mark (►)
3. Depress the controller. (Eight patterns "8" will be sewn and stop automatically).
4. Remove the base. (See page 2).
5. Adjust the stretch stitch feed balance by turning the adjusting screw D in direction A or B.
6. Attach the base (See page 2)
Note: If you know the position of adjusting screw C, this adjustment can al so be made by
removing only the oblong metal plate on the base cover.
