Elna International Corps. SA 6004 Service manual
NEEDLE THREADER PLATE
When needle threader plate is broken or bent, replace it in the following manner:
To replace:
1. Turn the handwheel toward you until the needle bar reaches its highest position and lower
the needle threader knob as far as it will go.

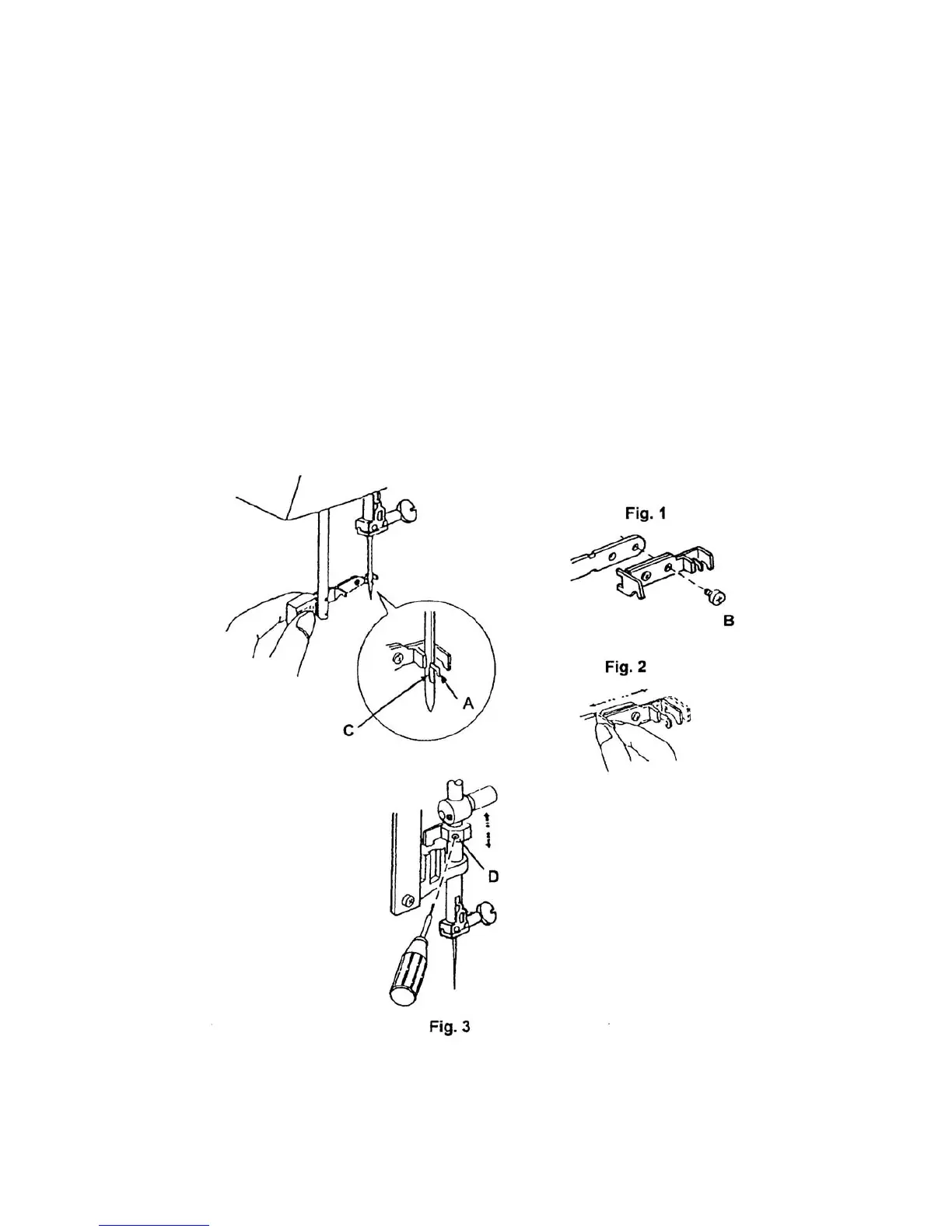

2. Loosen the set screw B and replace needle threader plate (Fig. 1).
3. To adjust:
4. If the hook touches the right side or left side of needle eye, loosen set screw A and adjust
the needle threader plate (Fig. 2).
5. If the hook touches the tap or bottom of needle eye, loosen set screw D and adjust the
position set plate (Fig. 3).
