Elna International Corps. SA 6004 Service manual

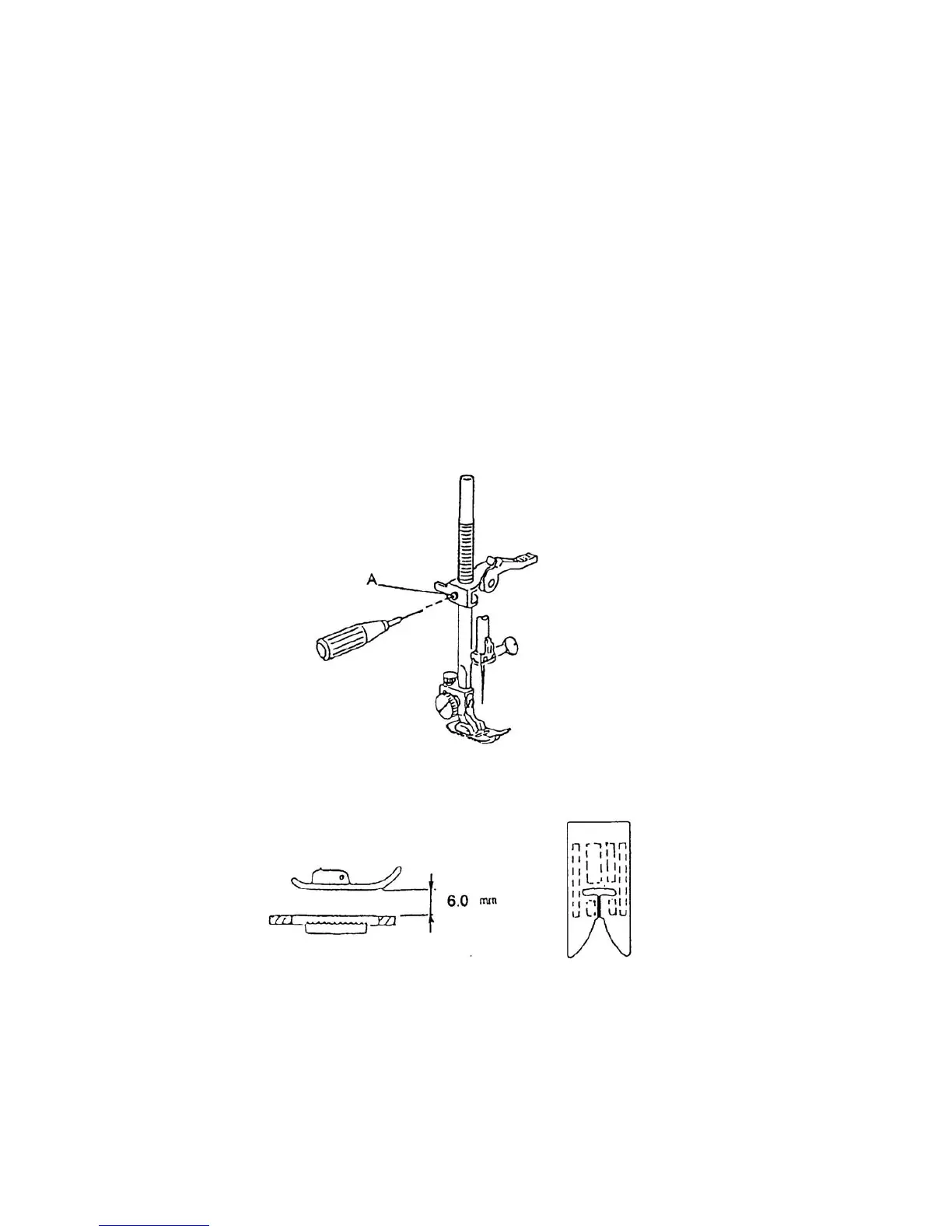

PRESSER BAR HEIGHT
The standard presser bar height is 6.0 mm between the bottom surface of the foot and
needle plate when presser bar lifter is in up position
1. Open the face plate
2. Raise the presser foot, loosen the presser bar bracket screw A and adjust the height (6.0
mm)
3. Check if the presser foot is parallel to thé openings for thé feed dog in the needle plate. If
not, adjust it
4. Tighten thé presser bar bracket screw while holding thé presser bar so that foot remains
parallel to thé openings
5. Close thé face plate.
