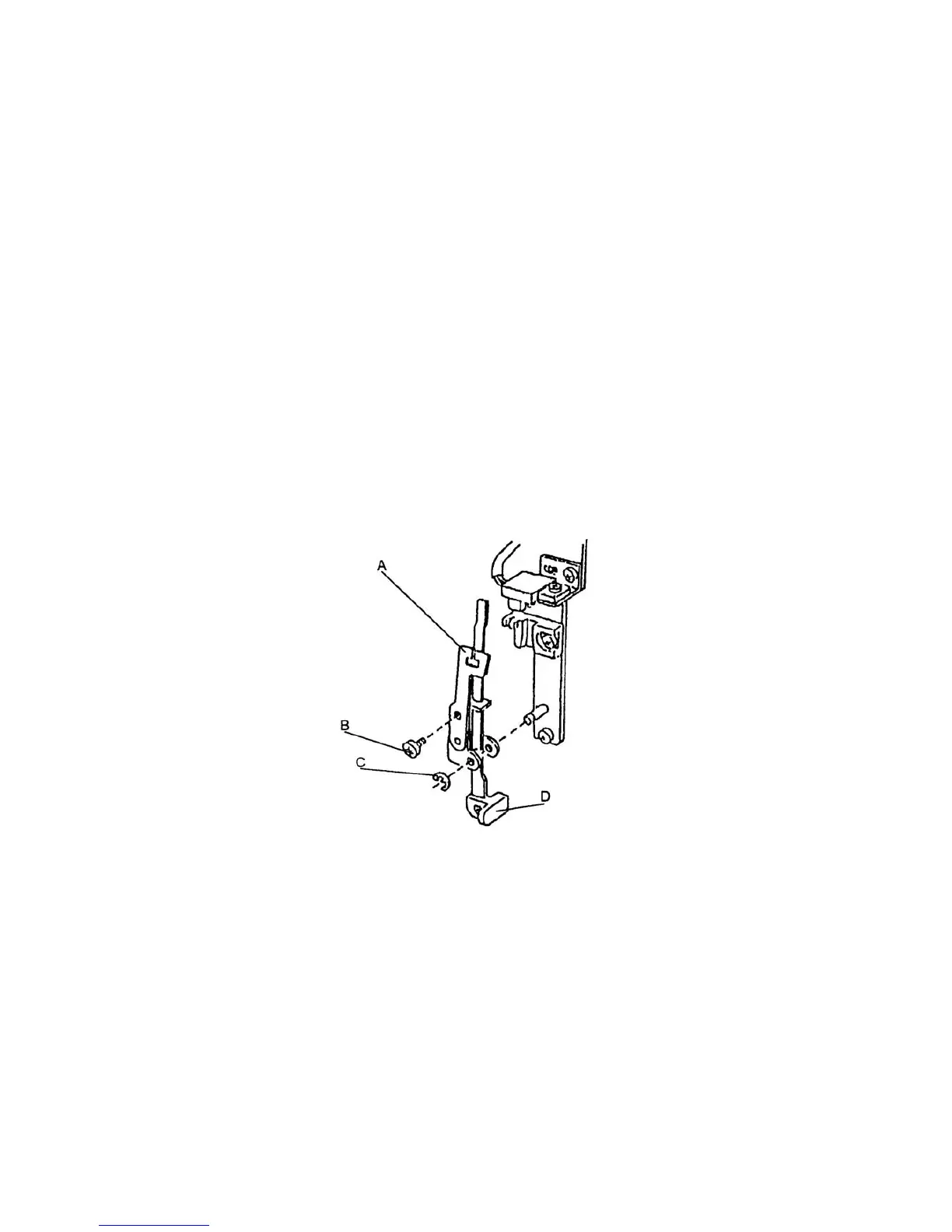

BUTTONHOLE LEVER
To remove:
1. Remove the set screw B and the buttonhole shield plate.
2. Remove the snap ring C.
3. Pull the BH lever toward you and remove it.
To attach:
4. Insert the shaft in the holes of the BH lever A (with the BH shield plate removed) and attach
the BH lever with the snap ring C.
5. Attach the BH shield plate with the set screw B.
Page 23
