Elna International Corps. SA 6004 Service manual
FEED DOG HEIGHT

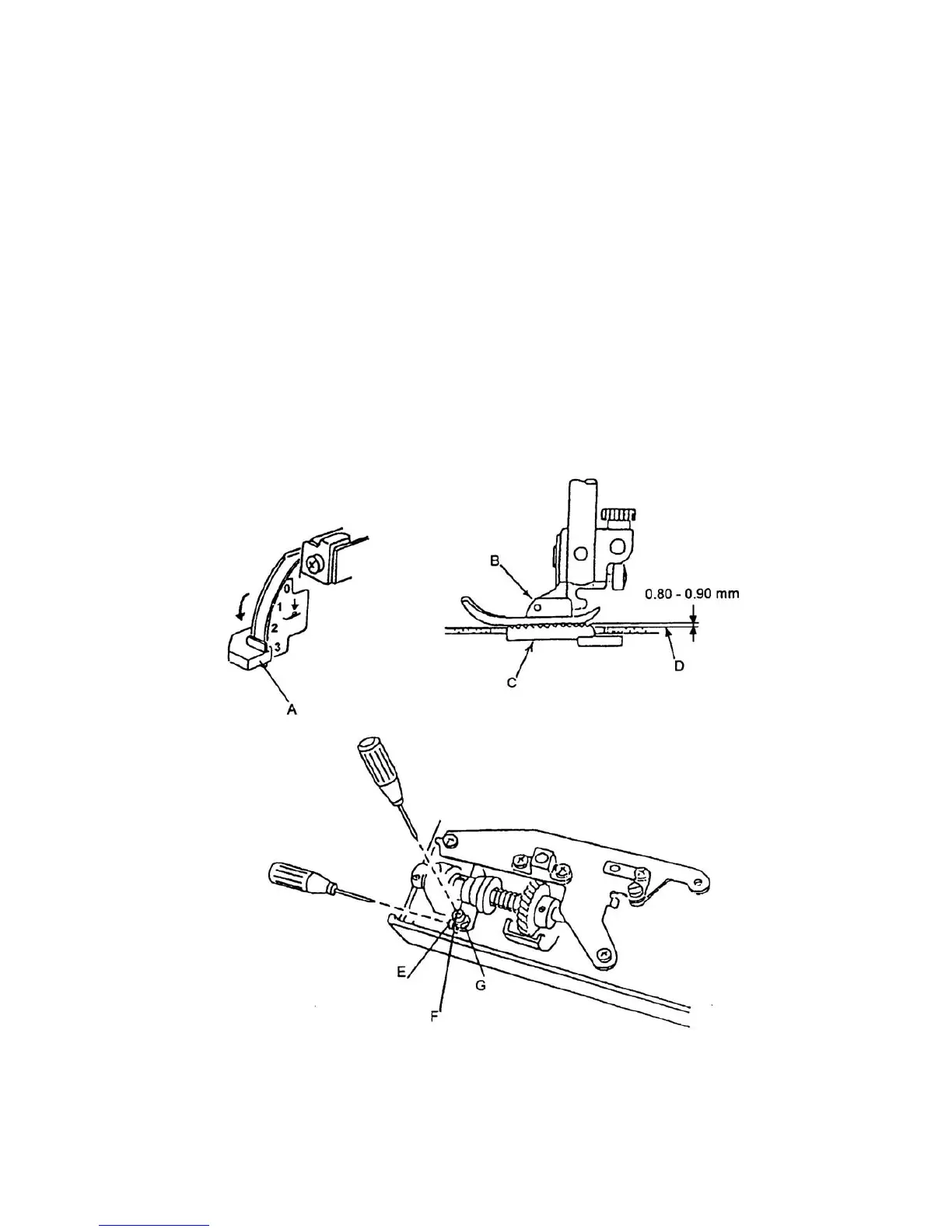

When pressure adjusting lever is at «3 » A and the presser foot B is lowered, the highest
position of the feed dog C should be 0.80 mm to 0.90 mm from the surface of the needle plate
D.
.
1. Set the pressure adjusting lever A at "3 " and lower the presser foot B
2. Tum on the power switch.
3. Tum the handwheel toward you to get the highest position of feed dog C.
4. Remove the bed cover
5. Loosen the set screw E and nut G
6. Adjust the feed dog height to 0.80 mm to 0.90 mm by tuming adjusting screw F.
7. Tighten the nut G and set screw E
8. Attach the bed cover.
Page 11
