Elna International Corps. SA 6004 Service manual
MACHINE SOCKET
To remove

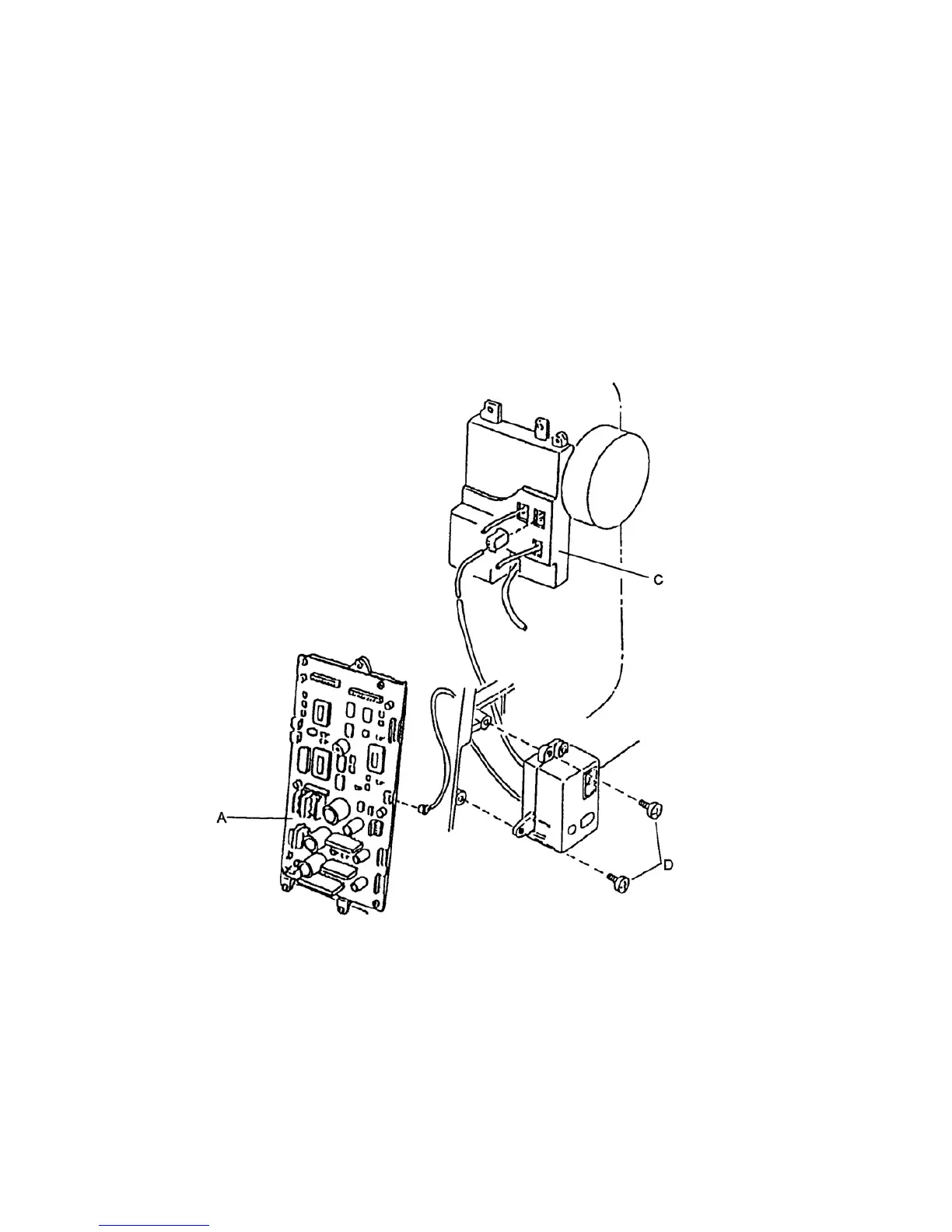

1. Remove the front panel and the rear cover (See pages 4 and 19).
2. Remove the circuit board C (See page 18).
3. Unpliug the connectors of machine socket from circuit board A and C.
4. Remove two set screws D and the machine socket.
To attach
5. Attach the machine socket with two 2 set screws A.
6. Attach the circuit board C.
7. Attach the rear cover and front panel.
Page 22
