Elna International Corps. SA 6004 Service manual

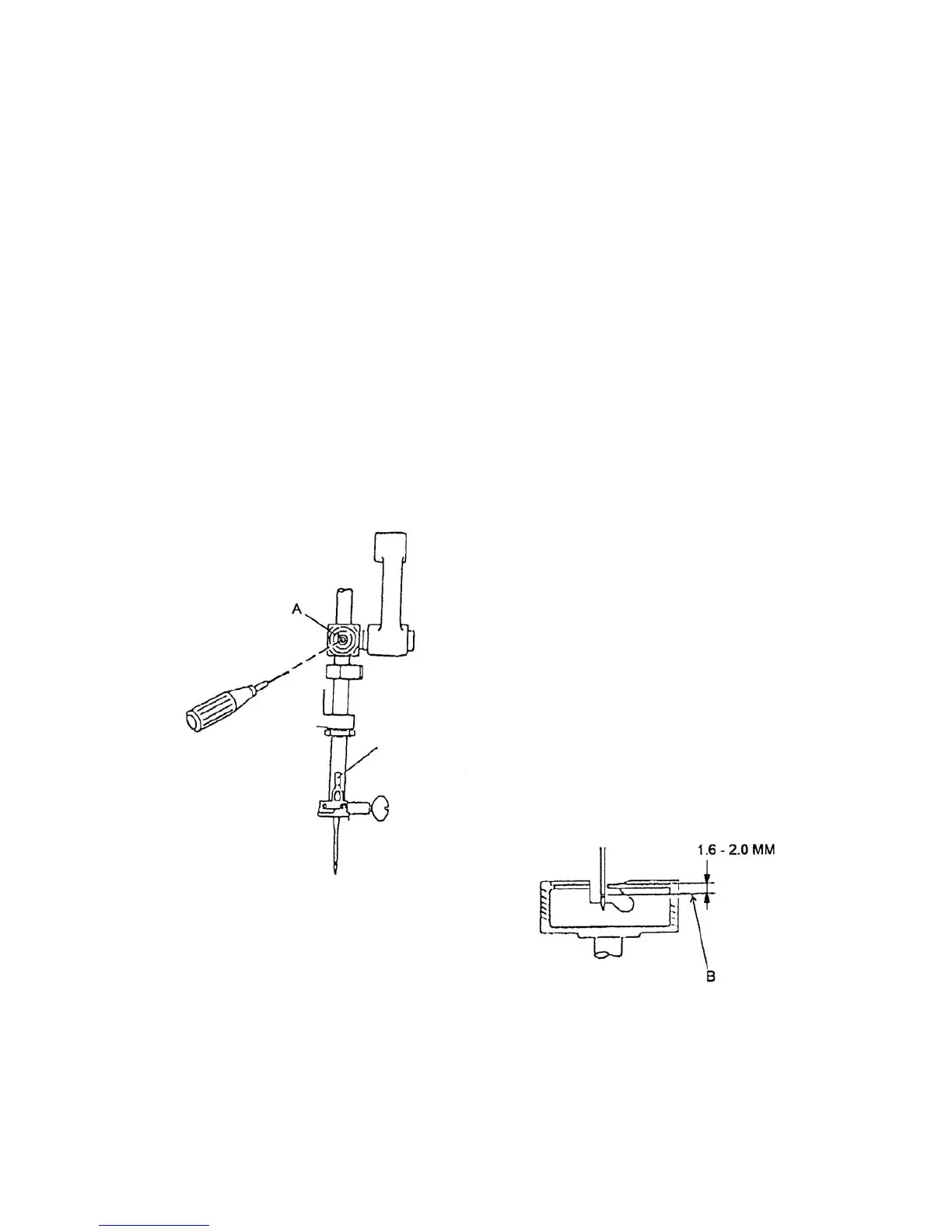

NEEDLE BAR HEIGHT
A regular needie #14 should be used for this adjustment
The distance between the upper edge of needie eye and the tip of shuttle hook should be in the
range of 1.6 - 2.0 mm when the tip of shuttle hook meets the right side of the needie as the
needle is moved up from its left and lowest position by turning the handwheel toward you.
1. Remove the needie plate and bobbin holder
2. Turn on the power switch and select pattern (no. 11)
3. Turn the handwheel toward you until tip of shuttle hook meets the right side of the needie
4. Loosen the needie bar connecting stud set screw A
5. Adjust the height of the needie bar by moving the needie bar upward or downward without
turning it. (Make sure thé needie setting groove of the needie bar is in thé front)
6. Tighten thé set screw A
7. Insert the bobbin holder and attach the needie plate
Page 07
