Adjusting Height of Embroidery Foot P

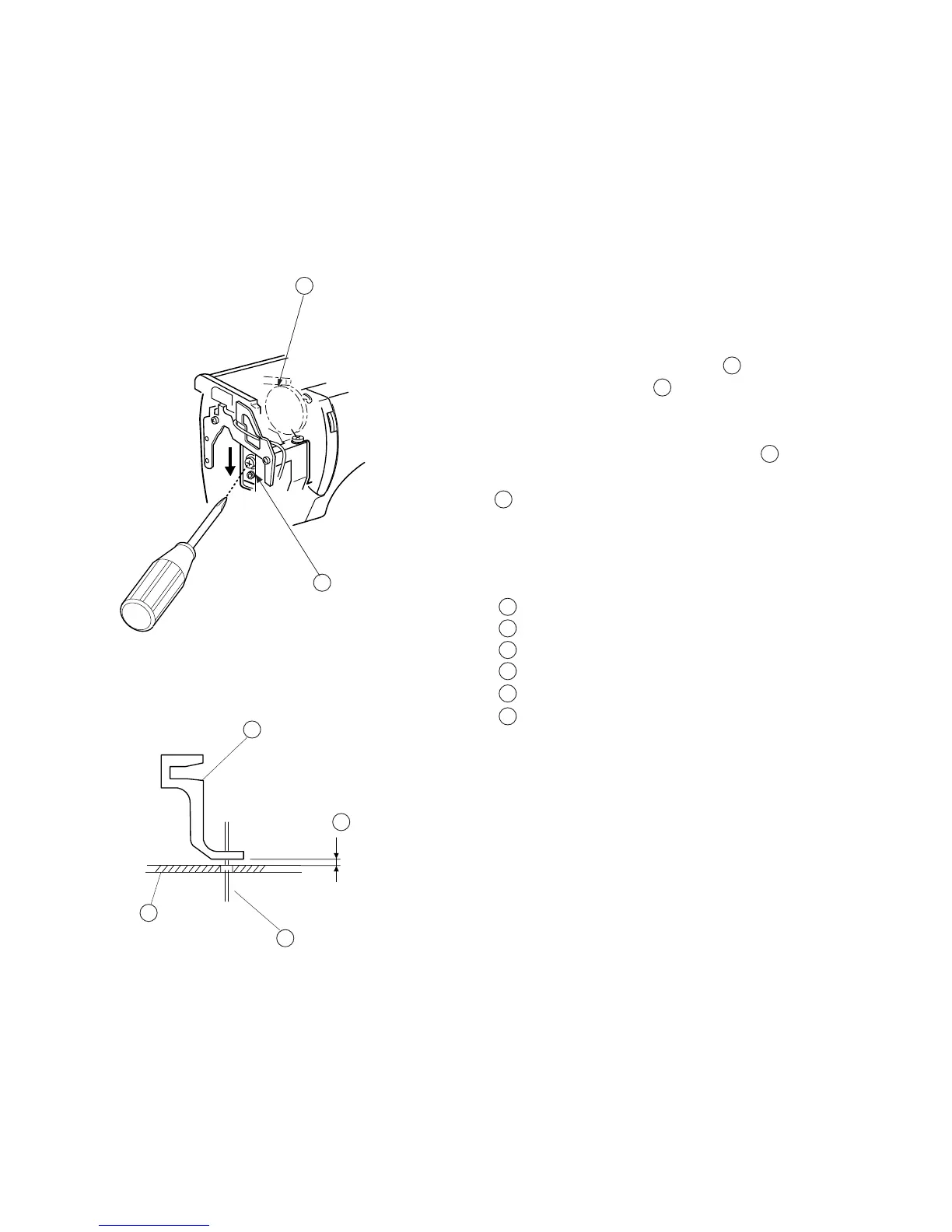

Attach the Foot (P), and the space between the needle plate and the bottom surface of the
Foot (P) should be 1.0 to 1.6 mm, when the needle bar is at its lowest position.
1 Remove the front cover unit. (See page 6)
2Lower the needle bar and lower the presser foot lifter.
3 Insert the 1.2 mm Thickness gauge between
the Embroidery Foot (P) and the needle plate.
4 While pressing the Pressure bar actuator down
against the upper shaft cam, and tighten Screw (A)
again.
5 Reattach the rear cover.
Thickness gauge
Embroidery foot (P)
Pressure bar Actuator
Screw (A)
Needle
Needle plate
