Changing External Parts (2) Belt Cover
Replacing the belt cover

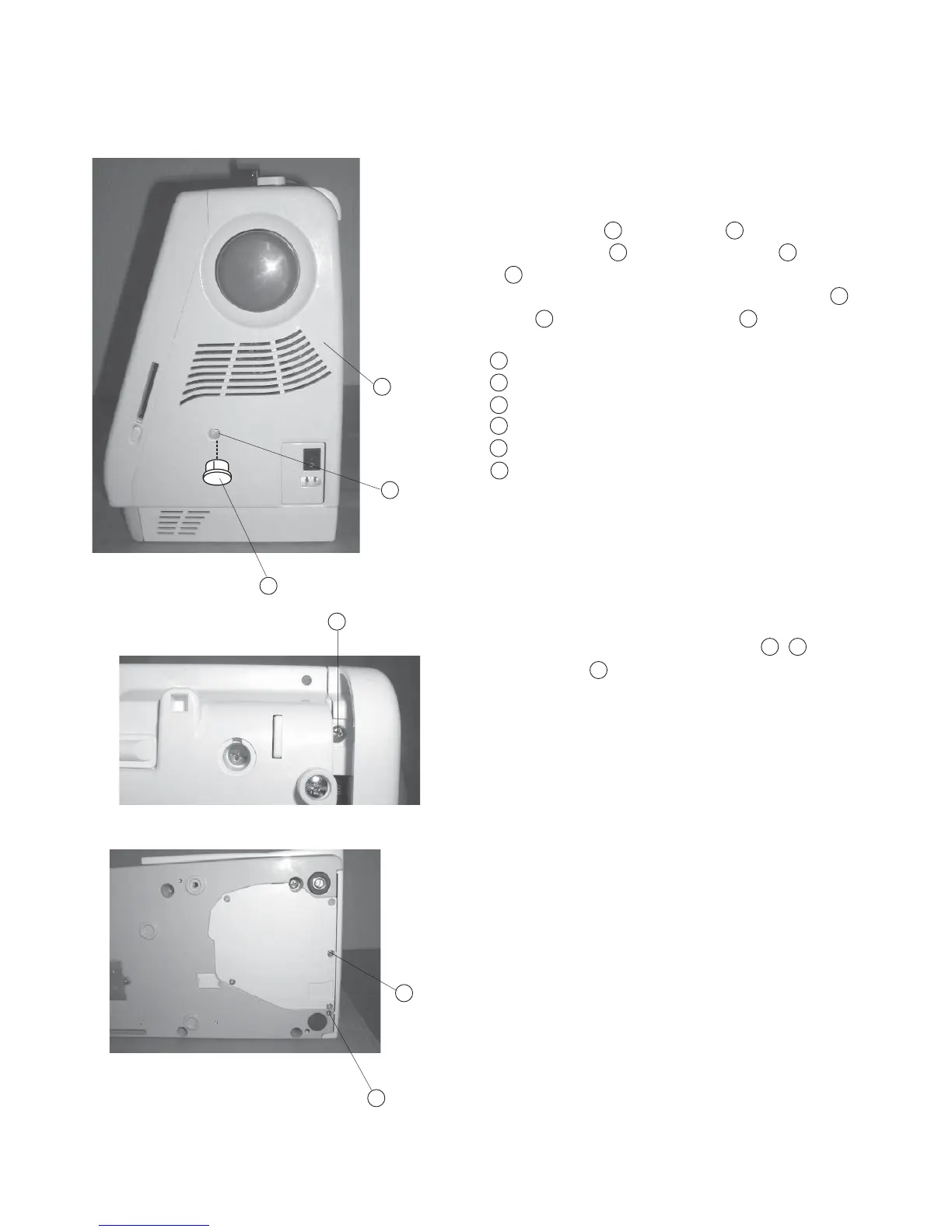

To remove:
1. Remove the Cap and Screw (A) .
2. Loosen Screw (B) and remove Screw (C) and
D .
3. Turn the machine to the back and remove Screws C
and D , then remove the Belt cover .
Cap
Screw (A)
Screw (B)
Screw (C)
Screw (D)
Belt cover
To attach:
4. Attach the Belt Cover with Screws (A - D) - .
5. Attach the Cap .
1
2
6
3
4
5
1 2
3 4
5
6
4
5
2 5
1
1
2
3
4
5
6
