ELNA CE10 - Replacing Printed Circuit Board

20

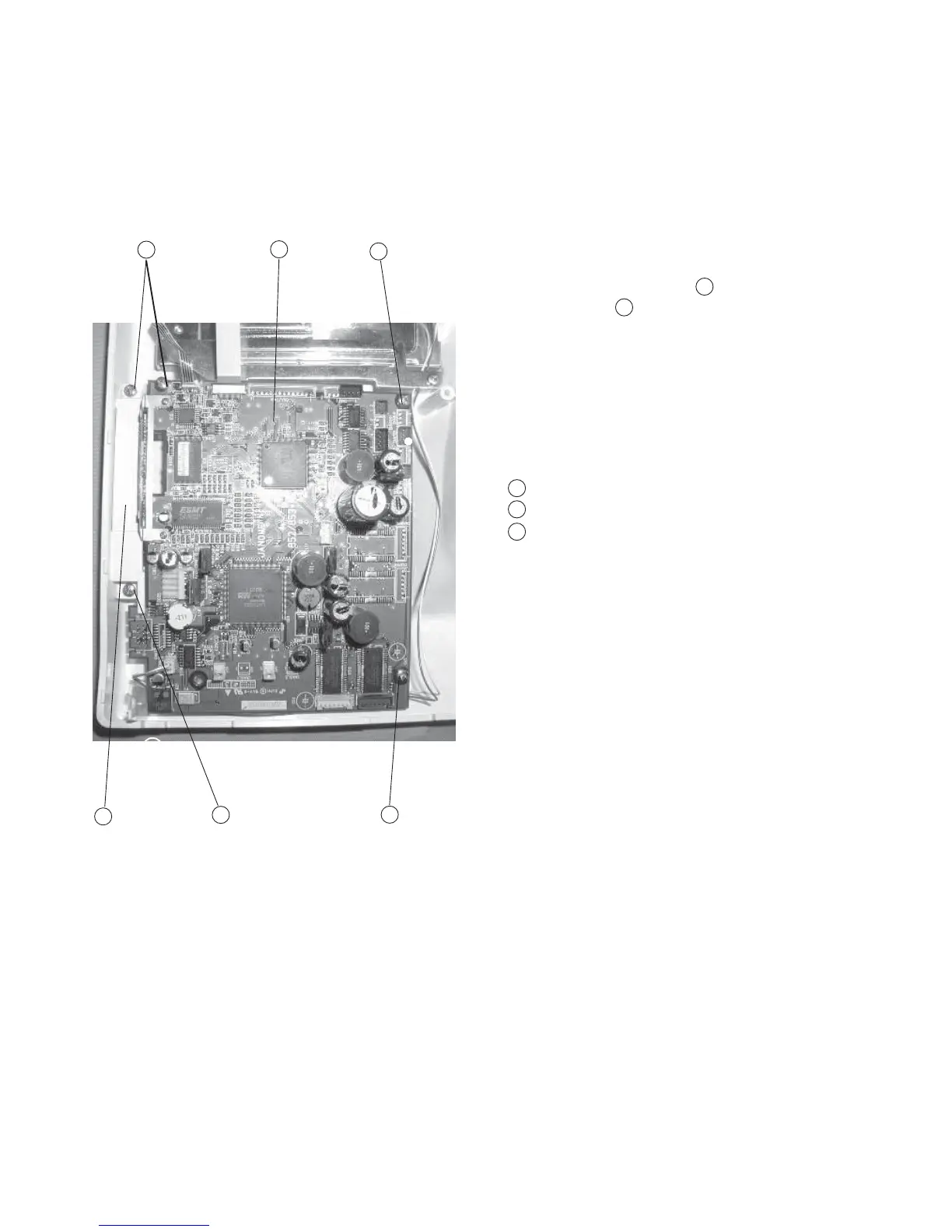

Replacing Printed Circuit Board
To remove:
1 Remove the front cover. (See page 6)
2 Pull out the connectors of printed circuit board F
LCD Harness, Inverter and Touch panel.
3 Remove screws (5 pieces) and the Printed
circuit board A .
To attach:
4Follow the above procedure in reverse.
To replace the printed circuit board A, follow the instructions below.
1
1
2
1
3
1
Screws (5 pieces)
Printed circuit board (A)
Card guide
1
2
1
2
3
