Changing External Parts (7) Rear Cover

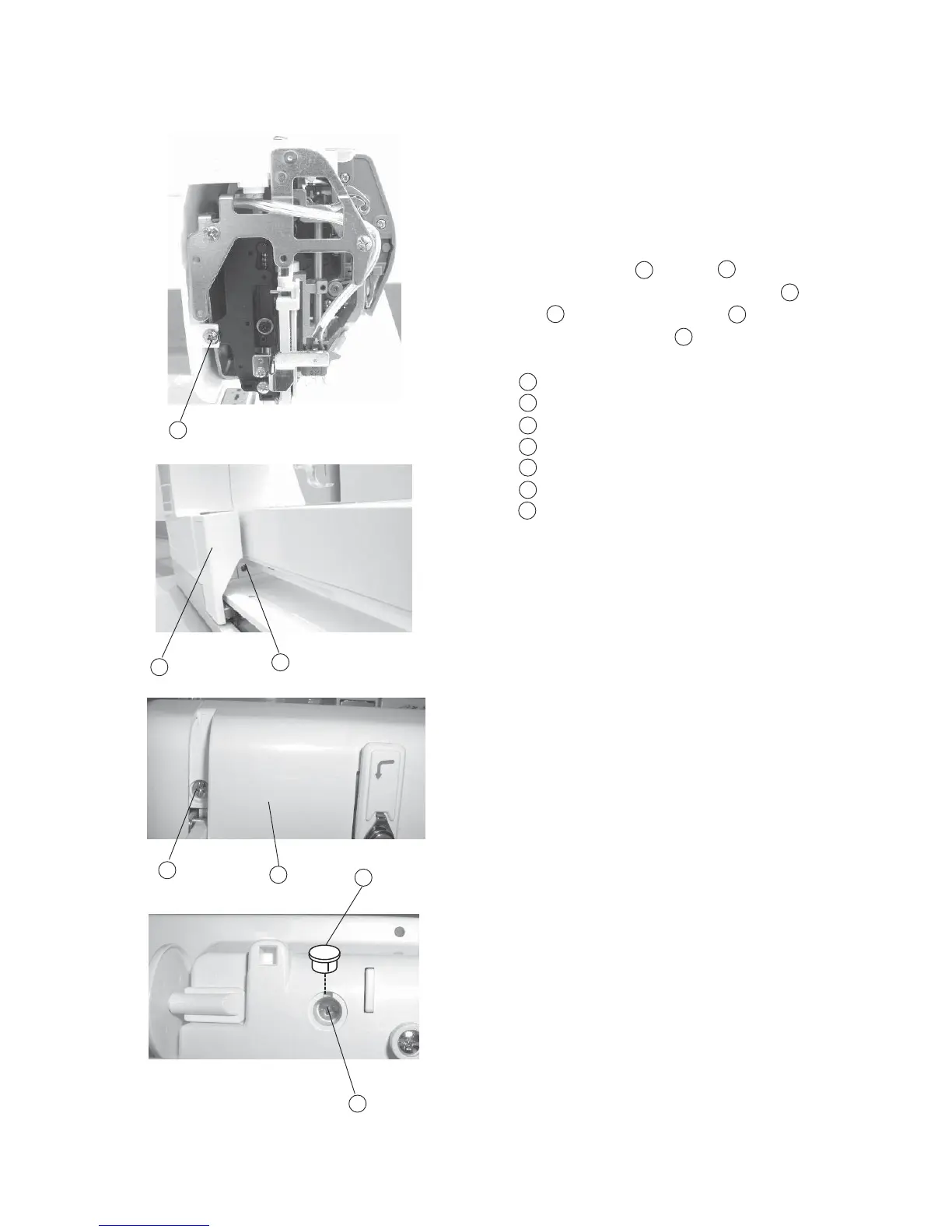

1 Remove the face cover and belt cover.
2 Loosen Screw (A) , and (B) .
3 Raise the handle and remove Screw (C) , and
Cap , then remove Screw (D) .
Remove the Rear cover .
Screw (A)
Screw (B)
Carriage
Screw (C)
Rear cover
Cap
Screw (D)
To attach:
3Follow the above procedure in reverse.
Rear cover
To remove:
2
1
4
3
6
5
7
2
1
4
3
6
5
7
2
1
4
6
5
7
