Analyzer dimension 550 x 1000 x 600mm
Loader dimension 850 x 350 x 450mm (depending on version)
Analyser weight approx. 90kg
Loader weight approx. 55kg
– It is important to install the instrument on a stable place.
– The balance should rest on a vibration free support.
Loader dimensions:
Version 36p: 500x250x460mm
Version 130p: 900x500x460

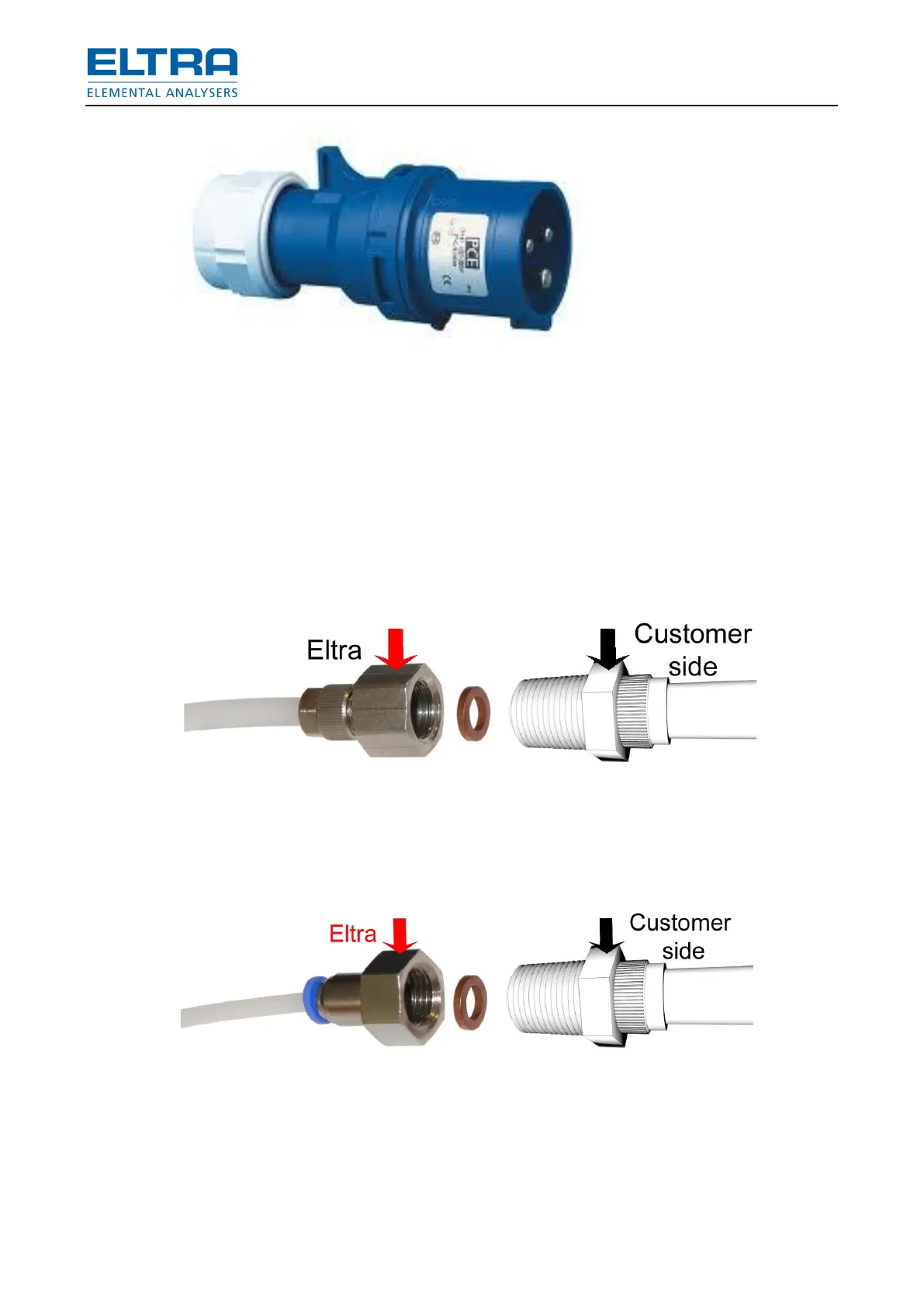

Gas connections:
The supplied tubes carry a connector with G¼" inner diameter ".
Connections for compressed air:
The tubes supplied together with the analyzer, carry a connector with G¼" inner diameter.
