62
9.2

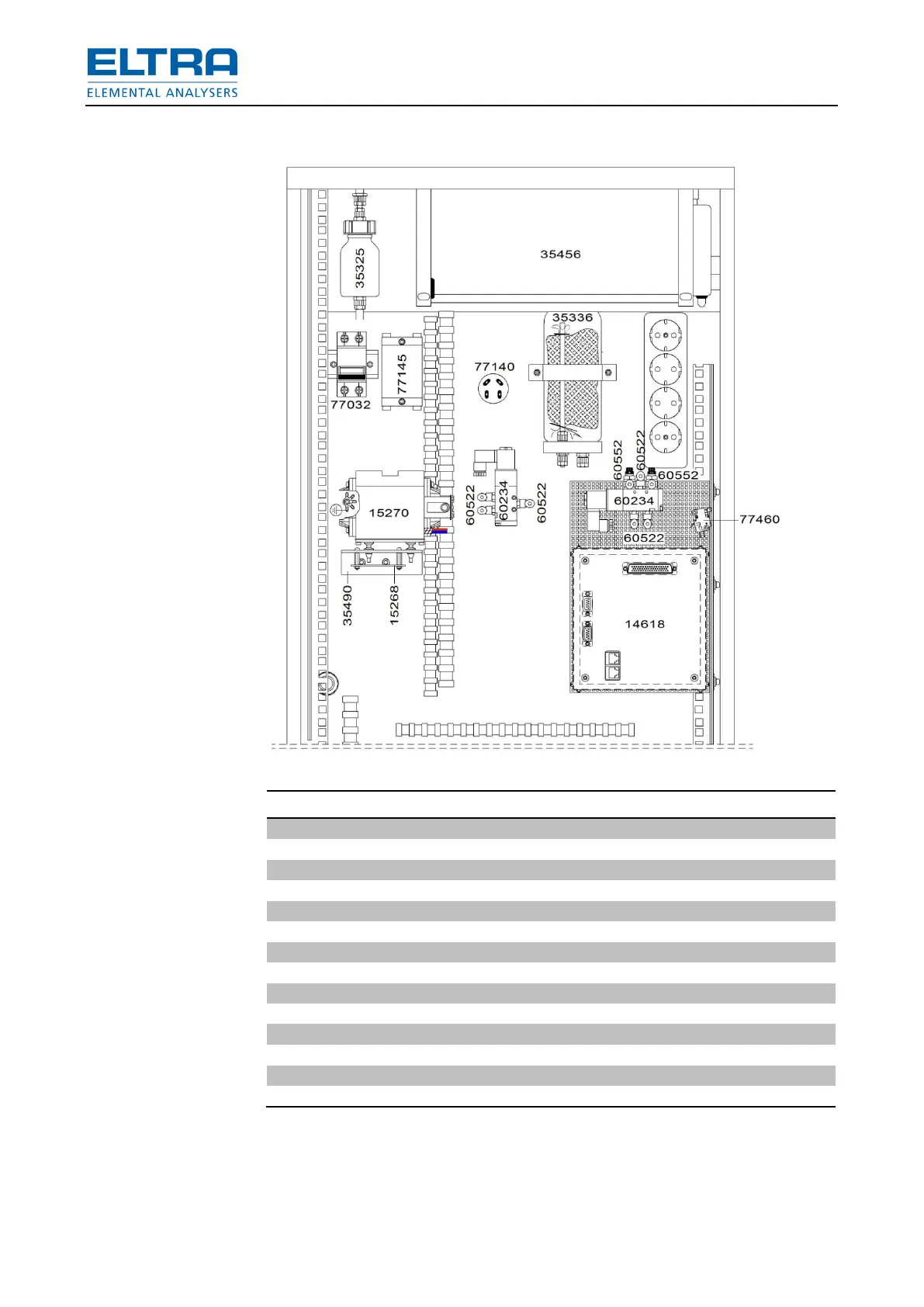

Rear side (outside view)
Part Nr.
Description
14618
Microcontroller board UNI
1.4
15268
Pump control boart
PC1
35490
Pump support
152
70
Gas pump
35325
Attenuator volum
e
35336
Attenuator volum
e
35456
Blower
60234
Pneumatic valve
60522
Fitting 90°
60552
Adjustable restrictor
77032
Circuit breaker
77140
Mains power filter
77145
Mains power filter
77460
Switch
61
63
Table of Contents
Table of Contents
3
Contact Information
5
Notes on the Manual
5
Explanations of the Safety Instructions
6
General Safety Instructions
8
Intended Use
9
Improper Use
9
Explanation of Signs and Symbols
9
Packaging, Transport and Installation
10
Packaging
10
Transport
11
Conditions for the Installation Site
11
Type Plate Description
12
Pre-Installation Guide
13
Installation
16
Setting Check up
16
Front Panel Illustration
18
Installation of Furnace Covers for Manual and Loader Setups
20
Manual Setup
20
Autoloader Setup
21
Mains Power Connections
21
Data Interface
23
Oxygen Connection
24
Operation Modes
26
Adjusting the Gas Flow
27
Temperature Adjustment
28
Preheating the Furnace
28
Configuration of Preheating
28
BIOS-Configuration
29
Analysis
30
Working Procedure
30
Procedure of Carrying out Analyses with Autoloader, Optional
32
Procedure of Carrying out Analyses with Manual Loading of the Sample
33
TIC-Determination (Optional)
34
TIC-Module
34
TIC Analysis
34
TIC-Module Installation
36
TIC-Module Operation Procedure
37
Applications
38
Coal
38
Calcium Carbonate
38
Graphite
38
Limestone
39
Oil, Asphalt and Rubber
39
Wood
39
Maintenance
40
General Information
40
Cleaning
41
Reagent Tubes Filling
42
Reagent Tube Replacing
42
Filling Quantities
44
Moisture Trap Replacing (Furnace)
47
O-Rings Replacement
48
Dust Filter Cartridge Replacing
49
Combustion Tube Replacement
50
Lance Replacing
52
Heating Elements Replacing
53
Function Description
55
Measuring Principle
55
Gas Flow System
56
Infrared Cell
59
Micro-Controller Unit and PC Software
60
Ordering Numbers
61
Analyszer Front View
61
Rear Side (Outside View)
62
Bottom (Outside View)
63
Left Side (Inside View)
64
Furnace Side (Inside View)
66
TIC-Module
67
Disposal
69
