66
9.5

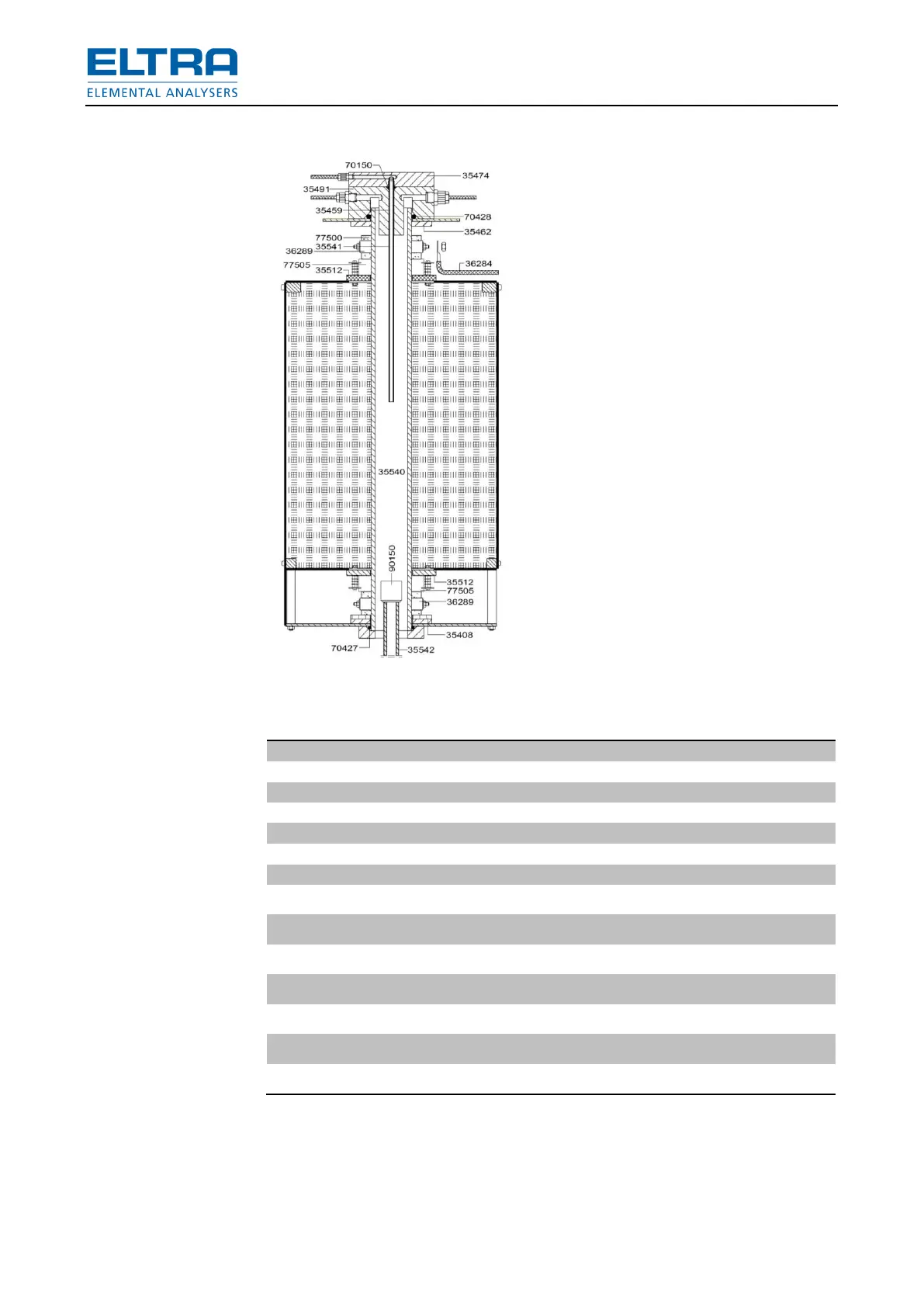

Furnace side (inside view)
Part Nr.
Description
35408
Lower plate insulation
35462
Upper plate
35512
Ceramic plate
35540
Combustion tube
35541
Ceramic lance
35542
Pedestal
36284
Heating elem
ent connector
36289
Heating elem
ent clamp
70150
O-ring
70427
O-ring
70428
O-ring
77501
Heating elem
ents, 4pcs
77505
Ceramic s
pacer
90150
Crucible
65
67
Table of Contents
Table of Contents
3
Contact Information
5
Notes on the Manual
5
Explanations of the Safety Instructions
6
General Safety Instructions
8
Intended Use
9
Improper Use
9
Explanation of Signs and Symbols
9
Packaging, Transport and Installation
10
Packaging
10
Transport
11
Conditions for the Installation Site
11
Type Plate Description
12
Pre-Installation Guide
13
Installation
16
Setting Check up
16
Front Panel Illustration
18
Installation of Furnace Covers for Manual and Loader Setups
20
Manual Setup
20
Autoloader Setup
21
Mains Power Connections
21
Data Interface
23
Oxygen Connection
24
Operation Modes
26
Adjusting the Gas Flow
27
Temperature Adjustment
28
Preheating the Furnace
28
Configuration of Preheating
28
BIOS-Configuration
29
Analysis
30
Working Procedure
30
Procedure of Carrying out Analyses with Autoloader, Optional
32
Procedure of Carrying out Analyses with Manual Loading of the Sample
33
TIC-Determination (Optional)
34
TIC-Module
34
TIC Analysis
34
TIC-Module Installation
36
TIC-Module Operation Procedure
37
Applications
38
Coal
38
Calcium Carbonate
38
Graphite
38
Limestone
39
Oil, Asphalt and Rubber
39
Wood
39
Maintenance
40
General Information
40
Cleaning
41
Reagent Tubes Filling
42
Reagent Tube Replacing
42
Filling Quantities
44
Moisture Trap Replacing (Furnace)
47
O-Rings Replacement
48
Dust Filter Cartridge Replacing
49
Combustion Tube Replacement
50
Lance Replacing
52
Heating Elements Replacing
53
Function Description
55
Measuring Principle
55
Gas Flow System
56
Infrared Cell
59
Micro-Controller Unit and PC Software
60
Ordering Numbers
61
Analyszer Front View
61
Rear Side (Outside View)
62
Bottom (Outside View)
63
Left Side (Inside View)
64
Furnace Side (Inside View)
66
TIC-Module
67
Disposal
69
