6.2.3 TIC-module installation
1. The TIC module is placed next to the analyzer.
2. Connect the mains power plug to a power socket.

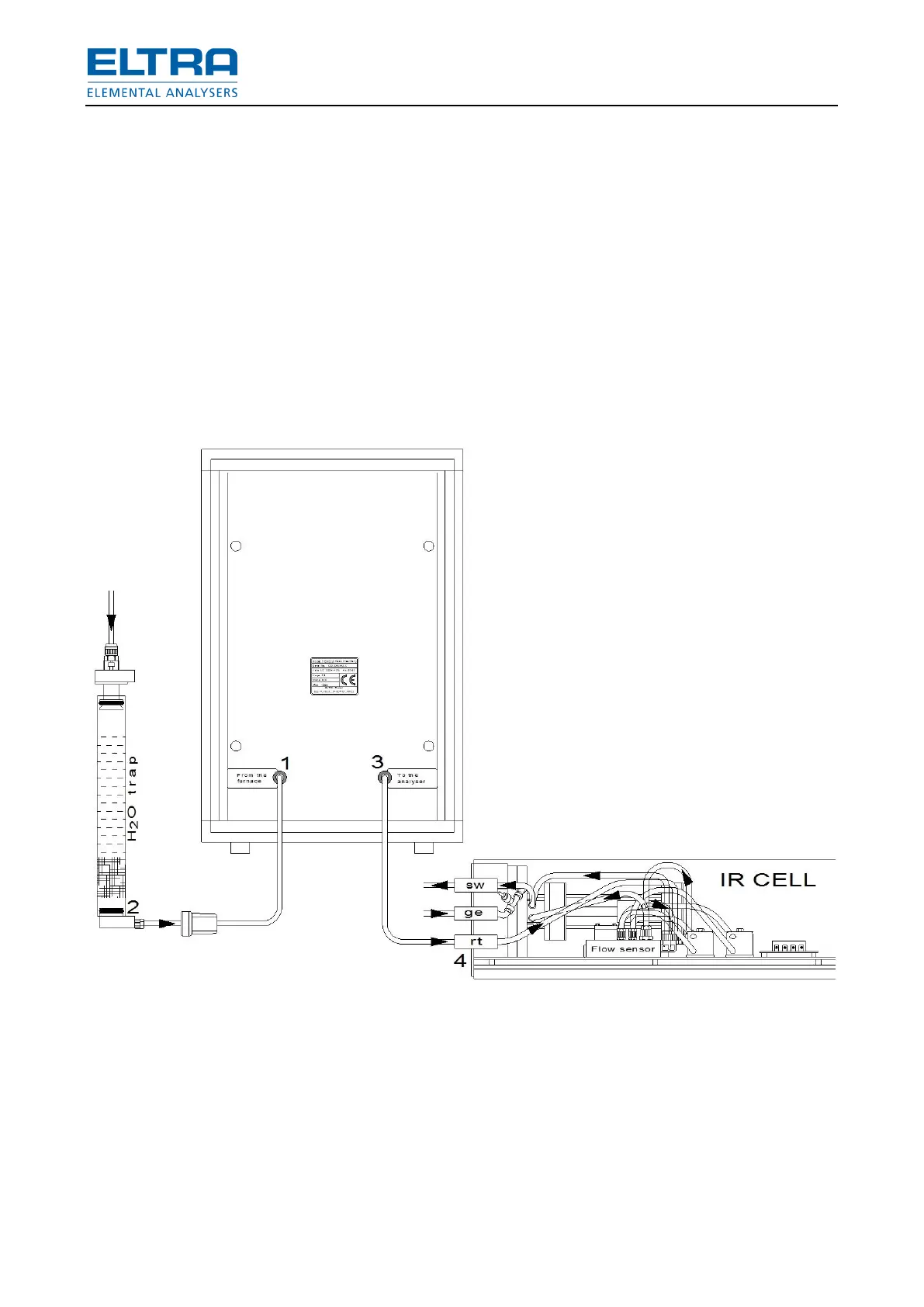

3. Connect the TIC module and the analyzer with the provided tubes. The connectors are
located at the backside of the analyzer and of the TIC-module.
4. The outlet of the furnace is connected via the H
2
O trap to the connection (2) and finally to
the inlet (1) of the TIC module.
5. Inside the TIC module, this tube is connected to the input of the glass distributor (3)
(connection on top tube 4).
6. The bottle of acid with dispenser (9) is placed to the right of the platform (8) and it is
connected to the connection (5) of the glass distributor.
7. The glass distributor (3) with the glass flask (6) is adjusted properly when the whole
surface of the bottom of the glass flask (6) touches the surface of the heater (7).
8. The heater (7) is switched on and the temperature is set to 75°C.
9. The stirrer is set to 400.
