5.9 Temperature adjustment
The furnace temperature is PC-controlled.
The CS-580A is delivered with 1350°C set temperature saved in a software profile. After
switching on the instrument at position 2 and starting of the UNI-software, the heating up to the
set temperature is started automatically. (The cable connection between instrument and PC is
in the scope of supply).

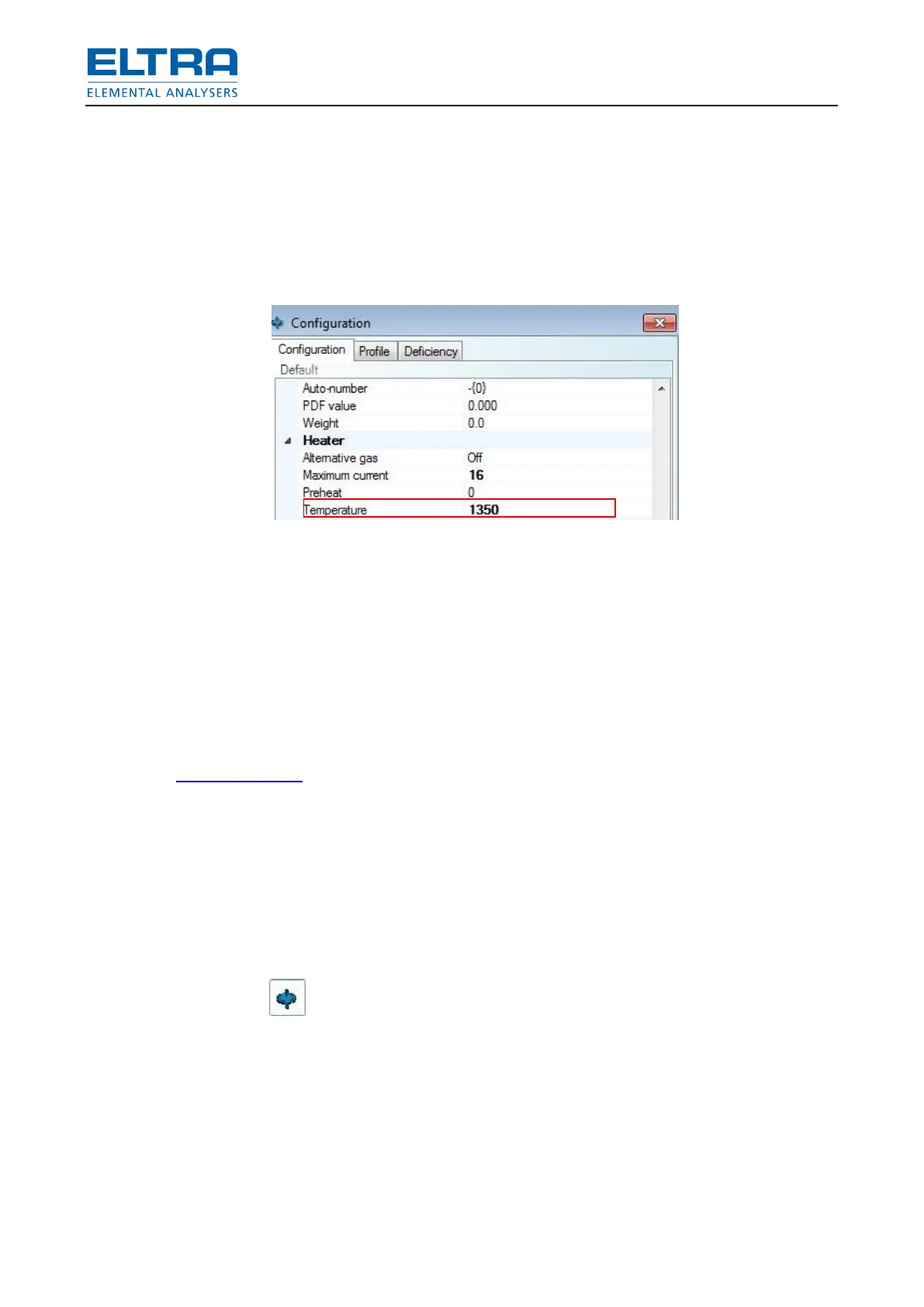

The actual furnace temperature and the set temperature are visible in the window Heater.
You can change the set temperature in the window Configuration.
5.10 Preheating the furnace
NOTICE
For heating up, the mains power switch of the analyzer has to be at position 2 and the PC has
to be switched on. The configuration of the BIOS has to be done by the customer as needed.
During heating up to the set temperature, the ceramic combustion tube is under high thermic
stress. This stress is increased with increasing speed of the heating up process.
For maximum service life of the combustion tube, the furnace can be heated up slowly with a
heating rate of 10°C/min. In order to avoid long waiting time until the furnace heats up, the
heating up of the furnace can be started automatically long before the work begins. See chapter
Bios Configuration
Please note that the automatic preheating can only be started when the analyzer temperature is
below 100°C.
NOTICE
The analyzer is delivered with a default heating rate of 10°C/min. Much higher heating rates are
possible; however with respect to the service life of the combustion tube, higher rates should
only be used when necessary.
5.10.1 Configuration of preheating
1. Open the window Default and choose Configuration.
