3.4.1.2.
Fuses for EUT with smaller nominal currents
The EM Test pulse generators have no built in fuse for the EUT power supply. It is in the scope of responsibility
of the user to protect the EUT external for the rated current.
The design of the external fuse must be match the following rules:
- fuse dimension must be equal or smaller than the rated EUT current of the connected test
generator
- fuse must be designed for protect the connected EUT device under test in malfunction

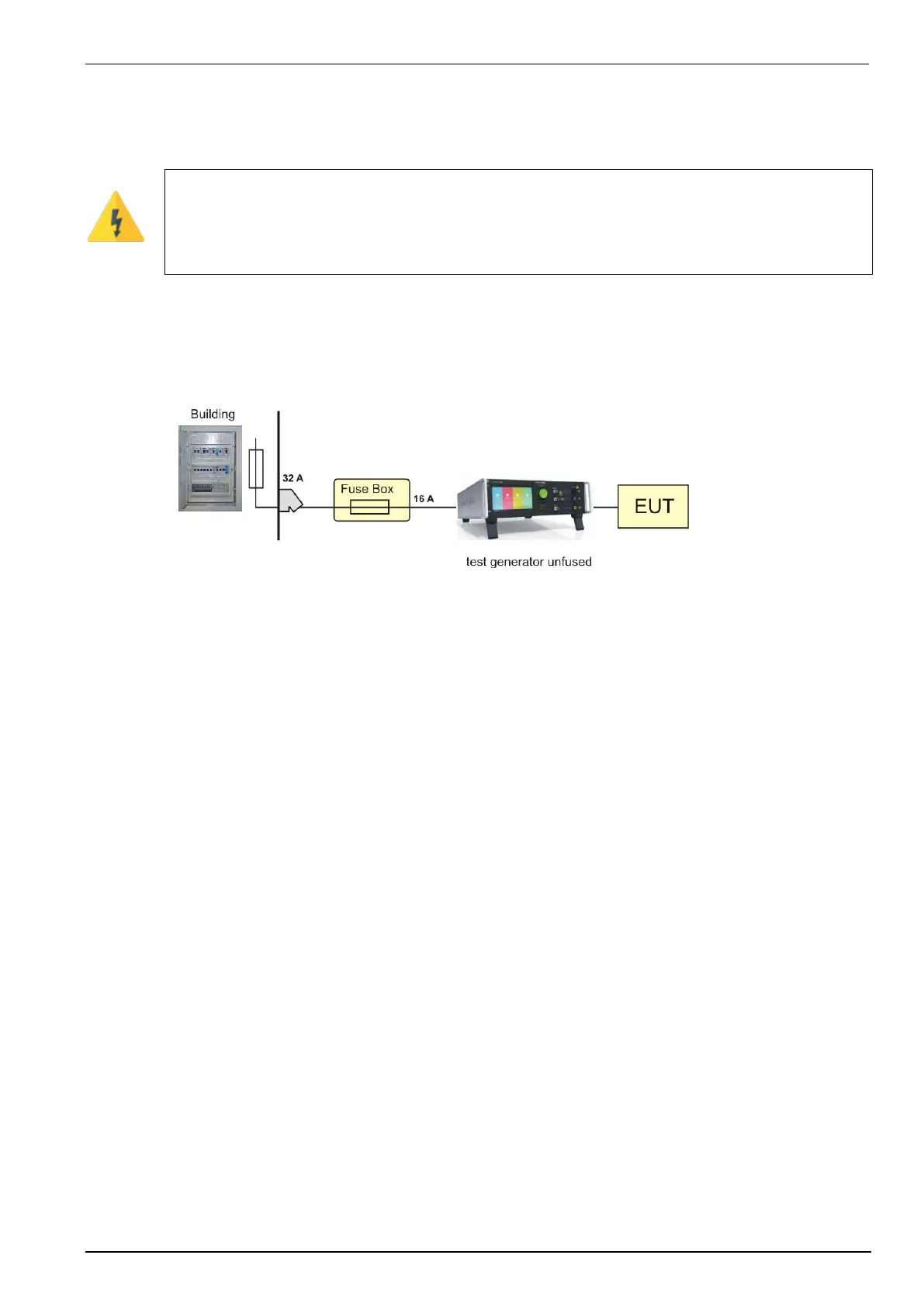

Example of external circuit breaker
Circuit breakers in the building are designed for 32 A. A circuit breaker box with 16 A protection is
installed between the building supply and the test generator.
Test generator and EUT are now fused for 16 A rated current
