EM TEST Compact NX5
Operating Manual V 1.06 22 / 143
System settings
Setup General
System: Language if other than English
Date / Time: modify
Setup Equipment
- Transformers
- External couplers
Transformers
If you have no variac or tapped transformer, you
can skip this paragraph.

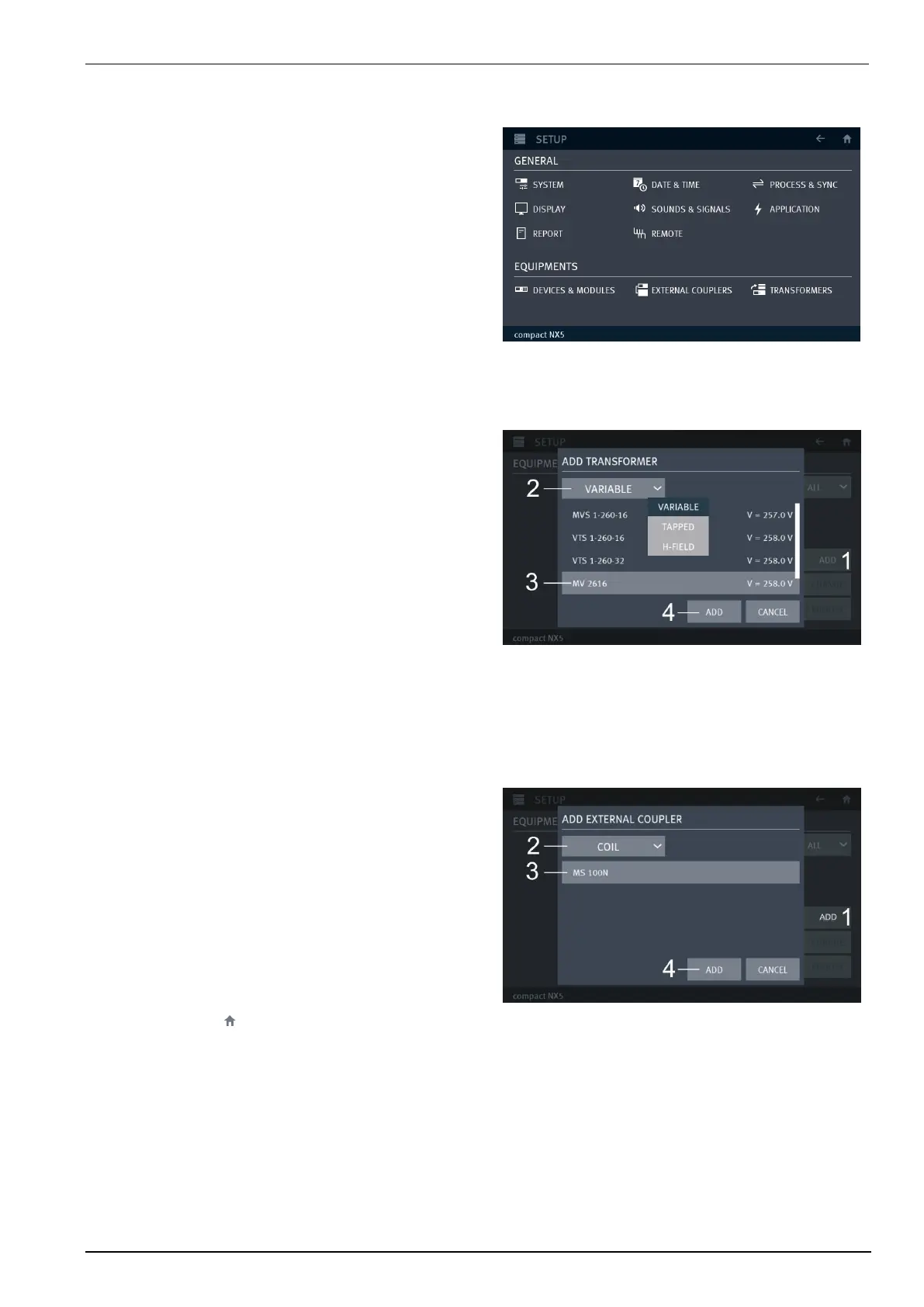

Add a Transformer into the setup
1. Select ADD for open the add transformer
window
2. Select VARIABLE or TAPPED
3. Select the transformer (variac NX1-260-16)
4. Press ADD for close and exit
NOTE: See separate chapter for adjust the
variable transformer parameters.
External couplers
External 3-phase coupling NX series devices are
detected after power up the system
automatically. If you have no magnetic field coil
or external
3-phase coupling network, you can skip this
paragraph.
Add an external coupler into the setup
1. Select ADD for open the add ext. couplers
window
2. Select CDN or COIL
3. Select the transformer (variac NX1-260-16)
4. Press ADD for close and exit
5. Select for return to the Home screen
NOTE: See separate chapter for adjust the
external coupler parameters.
For operate a test see chapter 4.3.3. Test phenomena and 4.3.3.1. Parameter setting
