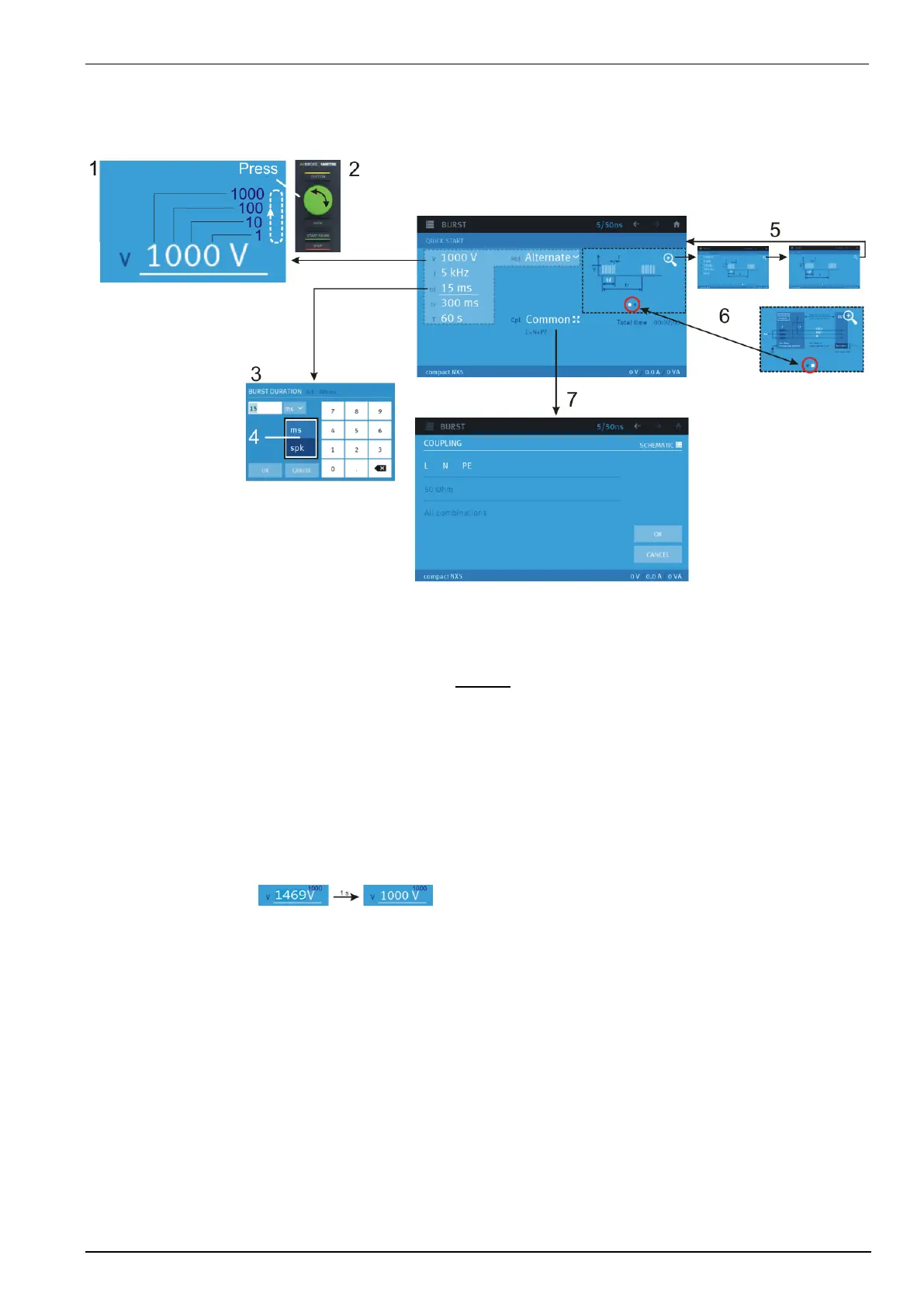

1 Parameter change
All white colored parameters are changeable. Blue colored parameters are normally defined by the used
standard and fixed. For change a parameter proceed the following:
Touch into the parameter you like to modify
The selected parameter is marked with underline 1000 V
1
. The
1
indicates the digit that changes using the
wheel.
2 Parameter modification with the wheel
- Rotate the wheel: Increase or decrease the selected digit. Depend on the parameter the digit is
defined.
- Press the wheel: Will change the digit, press again for the next digit. This will
rotate the digits cyclic
(1, 10, 100, 1000, 1, 10 ,…). A small value indicates the selected digit that will be
controlled by the wheel.
- Long press wheel: All digits right will be replaced by a zero. Example
3 Parameter modification with the touch
A numeric display, with the parameter description and his limits appears at the screen.
- Parameter: Enter the new value of this parameter.
- OK / CANCEL Terminate the parameter input
- OK replaces the parameter with the new input value
- CANCEL keeps the old value
4 Parameter unit modification
Some parameters allow changing the unit as (ms / spikes) or (µs / ms / s) or (% / V) for the test procedure.
Select the desired parameter unit for perform the test
5 Picture Loupe function
Touch the loupe symbol or double tap the figure for magnifying the picture. There are three magnifying
steps rotating the size.
It is possible to add new pictures in this picture gallery.
