EM TEST compact NX5 Series User Manual

EM TEST Compact NX5
Operating Manual V 1.06 51 / 143

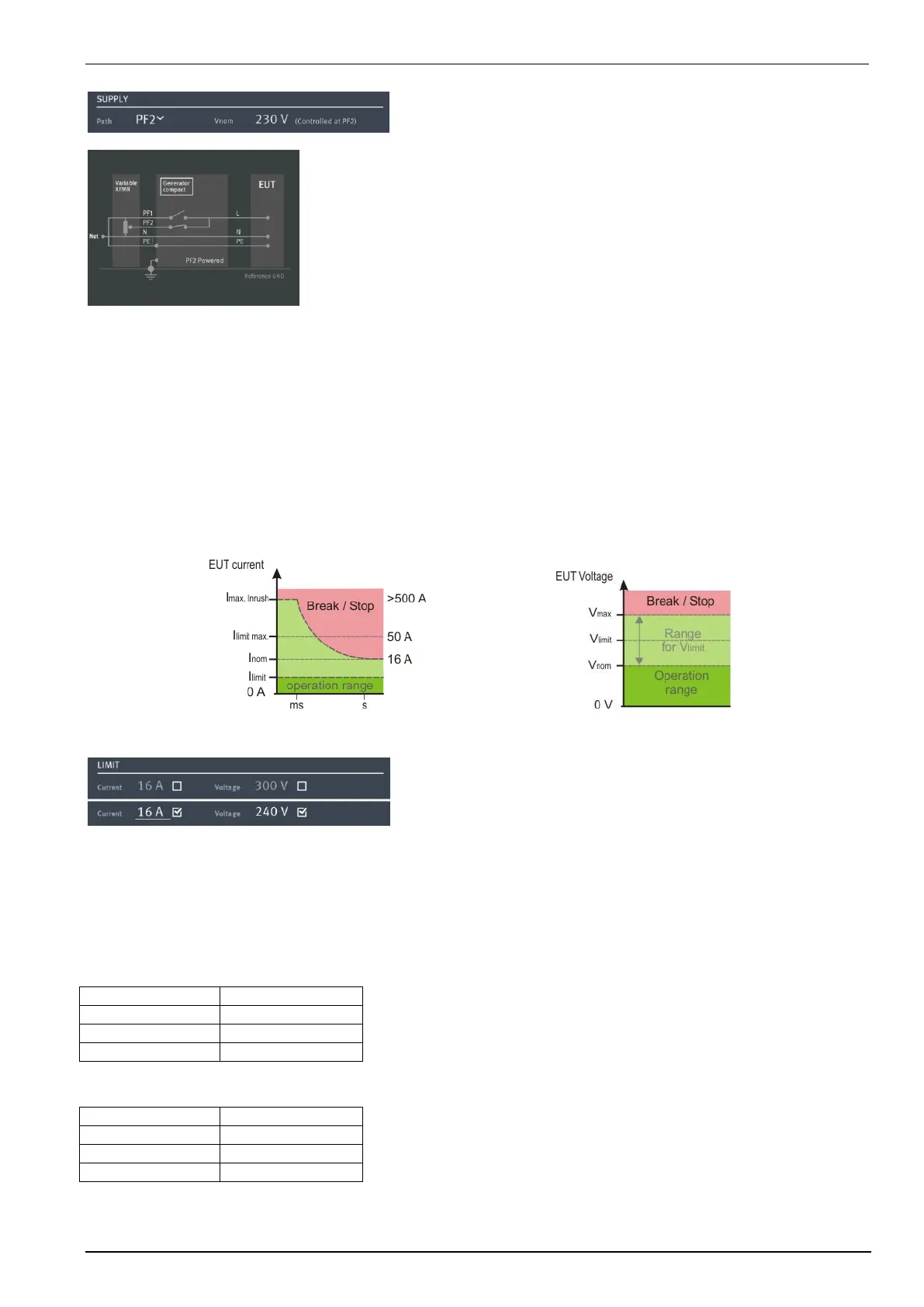

Path Vnom (controlled at PF2)
PF2 Any voltage (example 230 V- 10%)
The variac voltage is set to the following
voltages:
Power Fail: settled DIP voltage
Power magnetic Field: 0 V
All other phenomenon’s: Vnom (PF2)
NOTE: PF2 is used for operate a EUT with different voltage than
the actual mains voltage.
For Power Fail tests only PF2 mode with voltage interrupt
tests are possible.
4.3.5.3.
EUT Setup / LIMIT
LIMIT
Defines the limit for the voltage and current rms measurement for stop the test.
- Enable the box for activate and set the limit
- Current limit will trip if the current is above the settled limit and will break / stop the test
- Voltage limit will trip if the rms voltage is above the settled limit and will break / stop the test
Enabled (white) Disabled (grey)
Current: Range 0 to 50 A no function
Voltage: Range 0 to 300 V no function
Internal hardware current limiter
The built in internal hardware limiter operates as follow. In case of an overcurrent the TEST ON is switched off,
and the user has to confirm a message.
16 A models
I < 23 A
No action
23 A ≤ I < 40 A
Fail after 45 s
40 A ≤ I < 50 A
Fail after 30 s
50 A ≤ I
Fail after 5 s
32 A models
I < 46 A
No action
46 A ≤ I < 80 A
Fail after 45 s
80 A ≤ I < 100 A
Fail after 30 s
100 A ≤ I
Fail after 5 s
