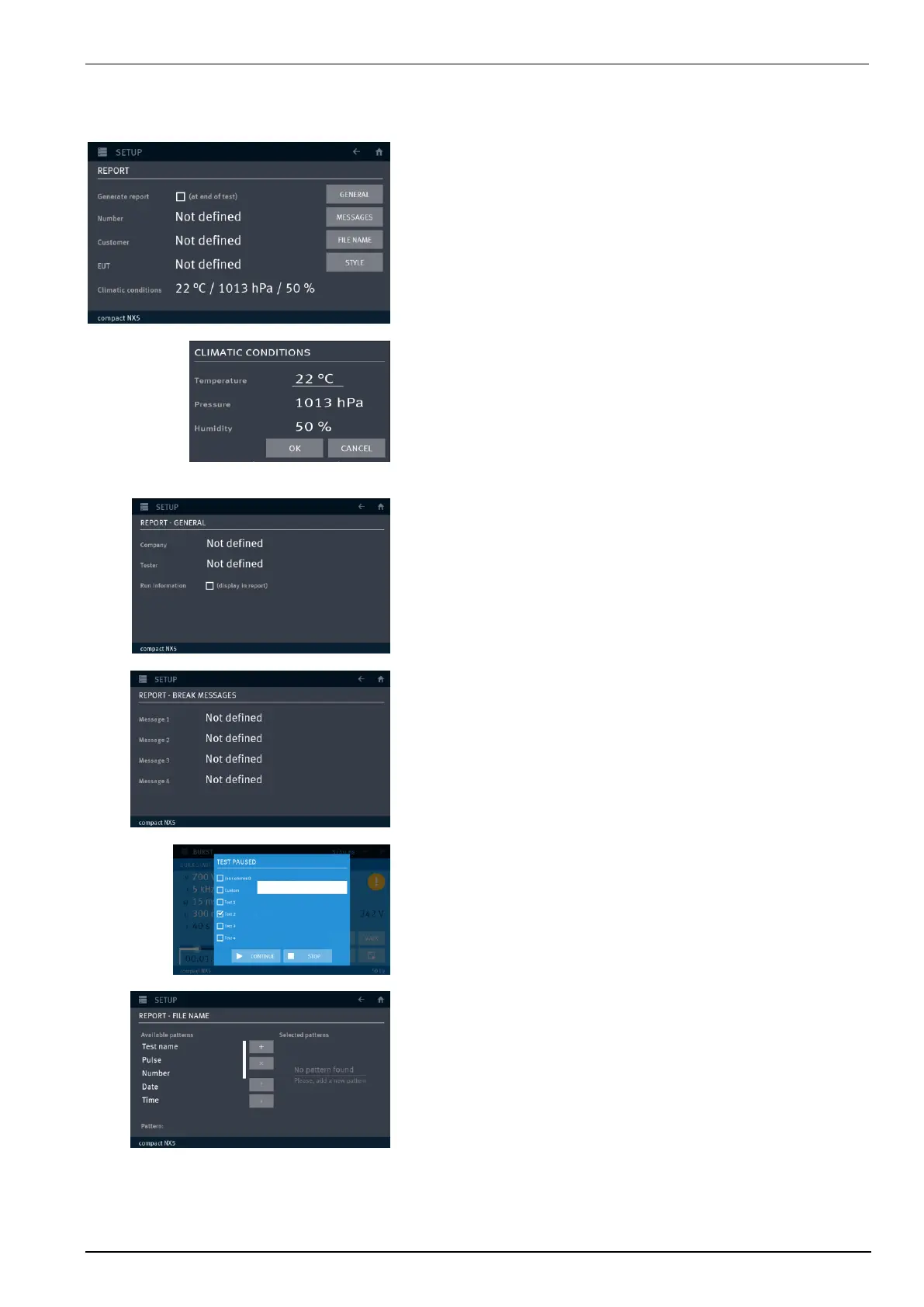

EM TEST Compact NX5
Operating Manual V 1.06 57 / 143
4.3.6.7.
Setup / General / Report
Report menu is implemented on version 3.0.0.0. and higher
Individual setting for:
- Generator report
- Test report number
- Customer name
- EUT name General Report generation,
- Climatic condition of the EUT during test
Parameter Input Range
- Temperature [ºC, ºF, ºK] - 30 ºC - + 80 ºC
- Pressure [h Pascal] 800 hPa 1100 hPa
- Relative humidity [%] 0 % - 100 %
All settings work with Keypad only
Report General
Company Company Name
Tester Name of the tester
Run Information Shows the run information in the report.
Additional actions like settings, Peak
measurements etc..
Report Message
The user can predefine messages that are displayed and
selectable during a pause.
Report Break Messages
Example for the message box during a pause with four
preselected messages. The selected message will be added to
the report.
Report Filename
The user defines the report file name which is displayed as
proposal after the test. The filename is built with the selected
patterns
+ Add the selected pattern into the list
- Removes the selected pattern from the list
Shift the selected symbol in the list
