Assemble components in your cabinet
11
Assemble components in your cabinet
Installing rails
Installing the SPS rails
The standby power supply (SPS) is a 1U component and uses a 1U adjustable rail kit. If possible,
start the installation from the bottommost allowed space in your cabinet.
1. Insert the adjustable rail slide and seat the rail extensions into the rear channel of your
cabinet.
2. Extend the rail and align the front of the rails as shown. Ensure that they are level front to back
and with the companion rail, left to right.
3. Insert two retention screws in the front and two retention screws in the back of each rail as
shown in Figure 1.

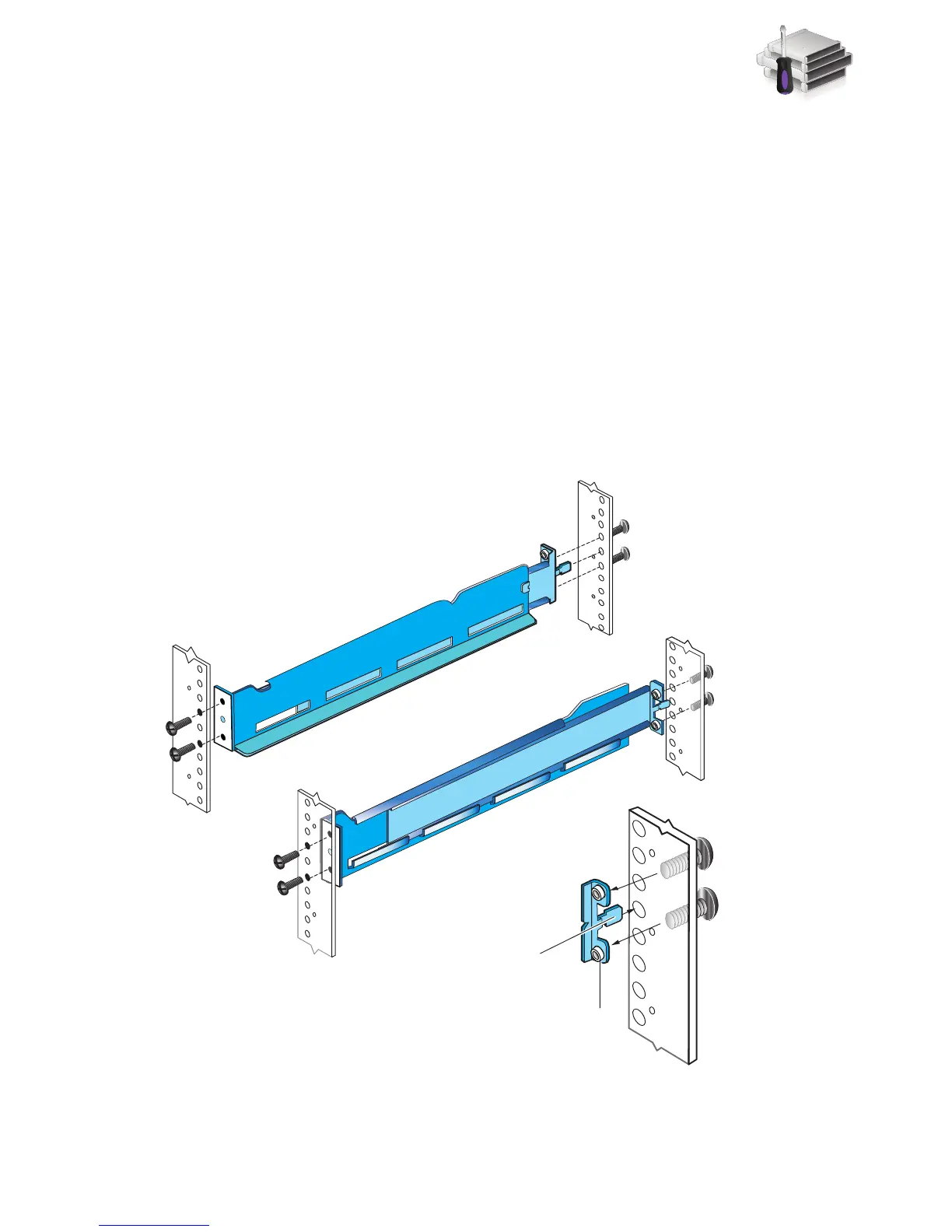

Figure 1 Installing the SPS rails
Alignment pin
Threaded
screw holes
VNX-000750
Rear detail
Front
