EMC VNX5300 Block Installation Guide

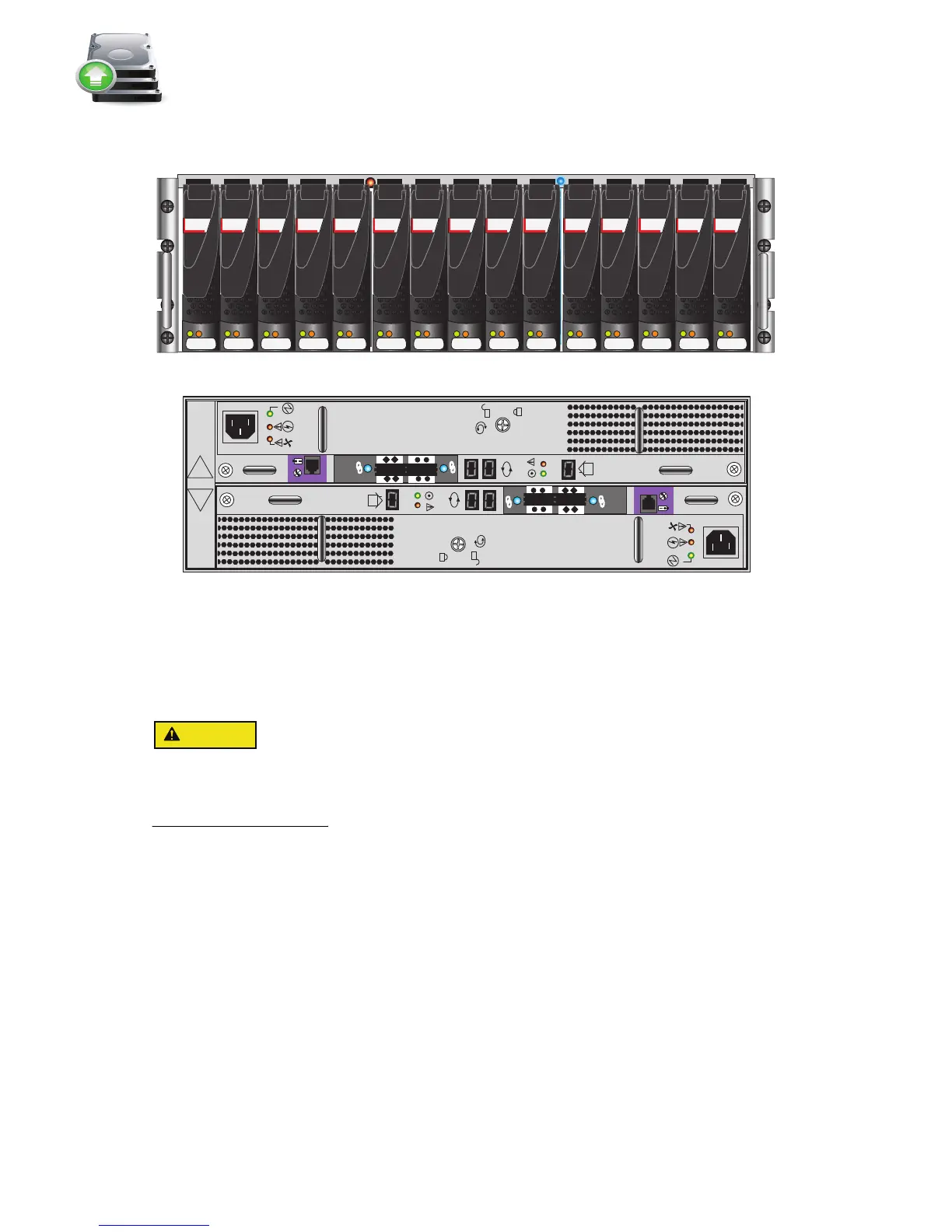

Figure 15 3U, 15 3.5” drive DAE
Assembling DAEs
The DAE is heavy and should be installed into a rack by two people. To avoid personal injury
and/or damage to the equipment, do not attempt to lift and install the enclosure into a rack
without a mechanical lift or help from another person.
1. Unpack the shipping containers.
2. Verify the contents. Each DAE should contain:
•Mounting screws
• Bezel and locking key
•SAS cable kit
•Power cable kit
•Rail kit
A
B
X4
6Gb SAS
X4
6Gb SAS
3U, 15 3.5” drive Disk-array enclosure
Rear
VNX-000266
Front
SAS SAS SAS SAS SAS SAS SAS SAS SAS SAS SAS SAS SAS SAS SAS
