Attach system to the network
Attaching storage processors to the network
The storage processors and the Windows host from which you initialize the storage system must
share the same subnet on your public LAN.
1. Locate your Ethernet cables.

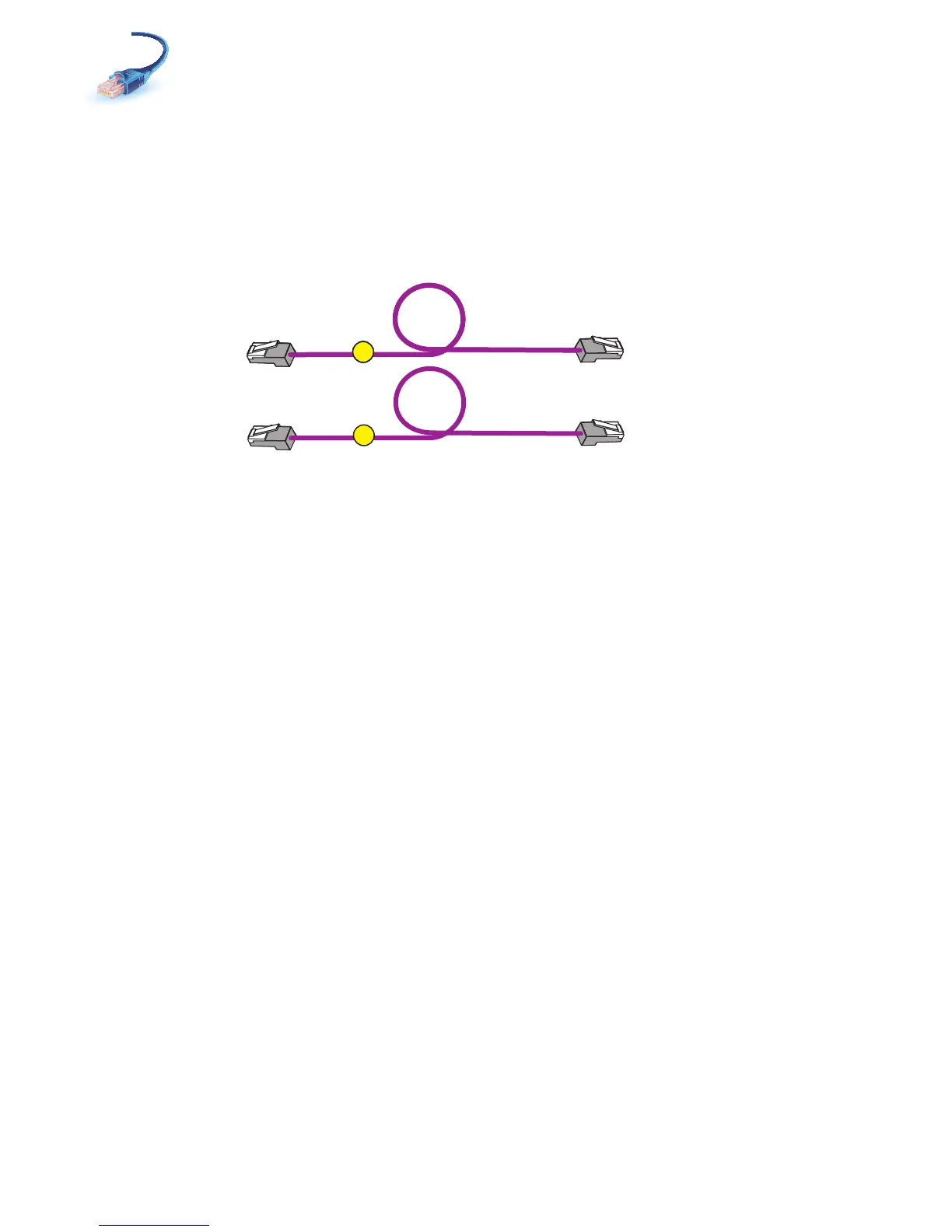

Figure 9 Customer-supplied management cables
2. Connect your public LAN using a CAT 5e or better (customer-supplied) Ethernet cable to the
RJ45 port on SP A . See cable A in Figure 10.
3. Connect your public LAN using a CAT 5e or better (customer-supplied) Ethernet cable to the
RJ45 port on SP B . See cable B in Figure 10.
To public LAN
(customer supplied)
To public LAN
(customer supplied)
AAA
B
VNX-000225
