EMC VNX5300 Block

32 EMC VNX5300 Block Installation Guide
Power up DAEs
Ensure that the cabinet circuit breakers are still on and the PDUs are powered on. The DAE power
cables should be connected directly to the PDUs as shown in Figure 21. After they are connected,
the DAEs will begin to power up.
1. Connect or verify that the DAE 1 power cable is connected to PDU A.
2. Connect or verify that the DAE 1 power cable is connected to PDU B.
3. Connect or verify that the DAE 2 power cable is connected to PDU A.
4. Connect or verify that the DAE 2 power cable is connected to PDU B.

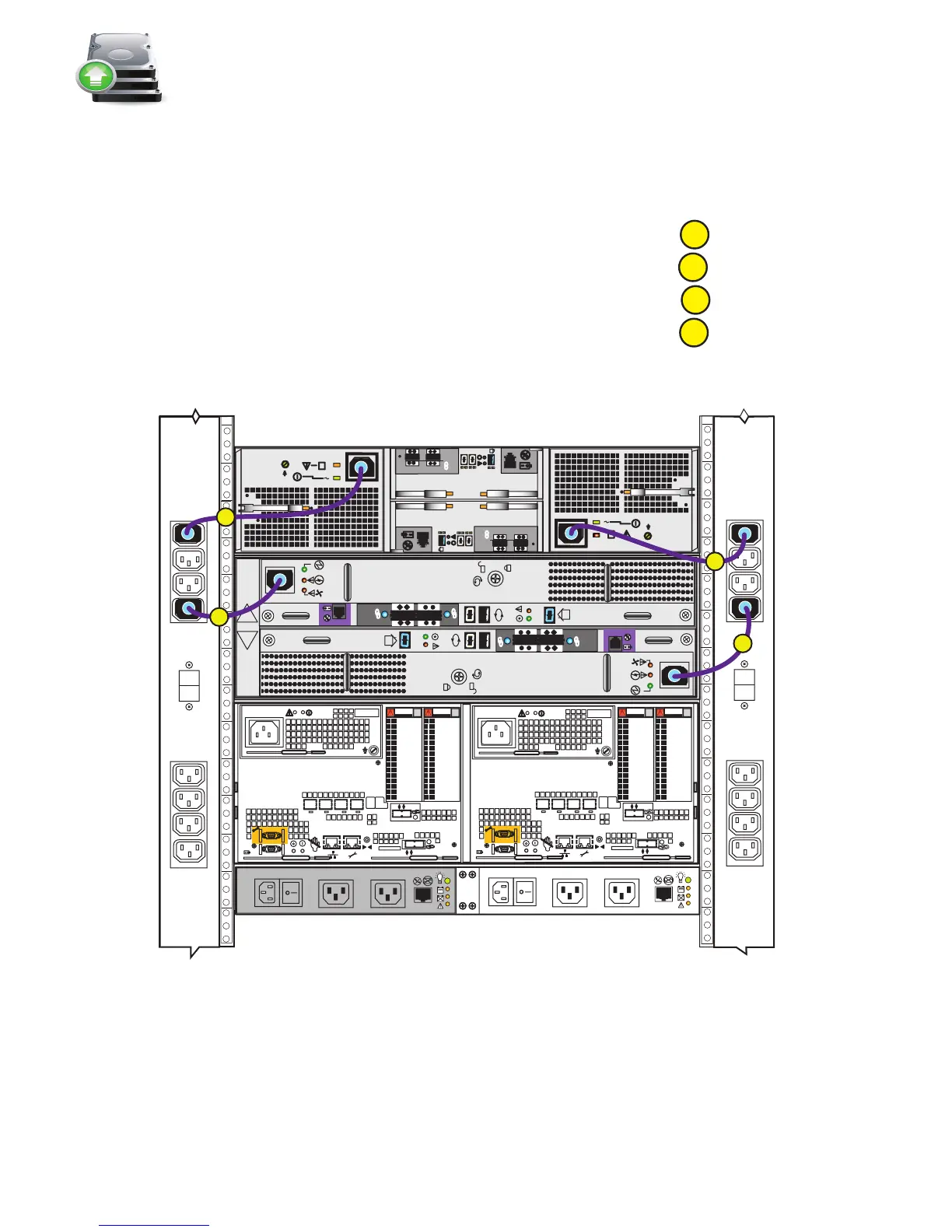

Figure 21 Powering up the DAEs
A
B
C
D
A
B
##
X4
6Gb SAS
#
X4
6Gb SAS
Power
Power
Switch
Power
Power
Switch
X4
2
3
4
5
6Gb
SAS
8Gb
fibre
1
0 X4
6Gb SAS
X4
2
3
4
5
6Gb
SAS
8Gb
fibre
1
0 X4
6Gb SAS
6 Gb SAS
X4
#
6 Gb SAS
X4
#
A
B
C
D
PDU A
PDU B
Disk-array enclosures optional
SPS B Optional
SPS A
Rear
VNX-000173
