EMC VNX5300 Block

Assembling DAEs 31
For steps 2 through 5, connect the following cables by matching the double diamonds on
the DPE and double circles on the DAEs with the single diamonds and single circles
on the cable connectors as shown in Figure 19 on page 30. Ensure that the cables lock into
place.
2. Connect SP A SAS 1 ( ) to DAE 1 LCC A ( ).
3. Connect SP B SAS 1 ( ) to DAE 1 LCC B ( ).
4. Connect SP A SAS 0 ( ) to DAE 2 LCC A ( ).
5. Connect SP B SAS 0 ( ) to DAE 2 LCC B ( ).

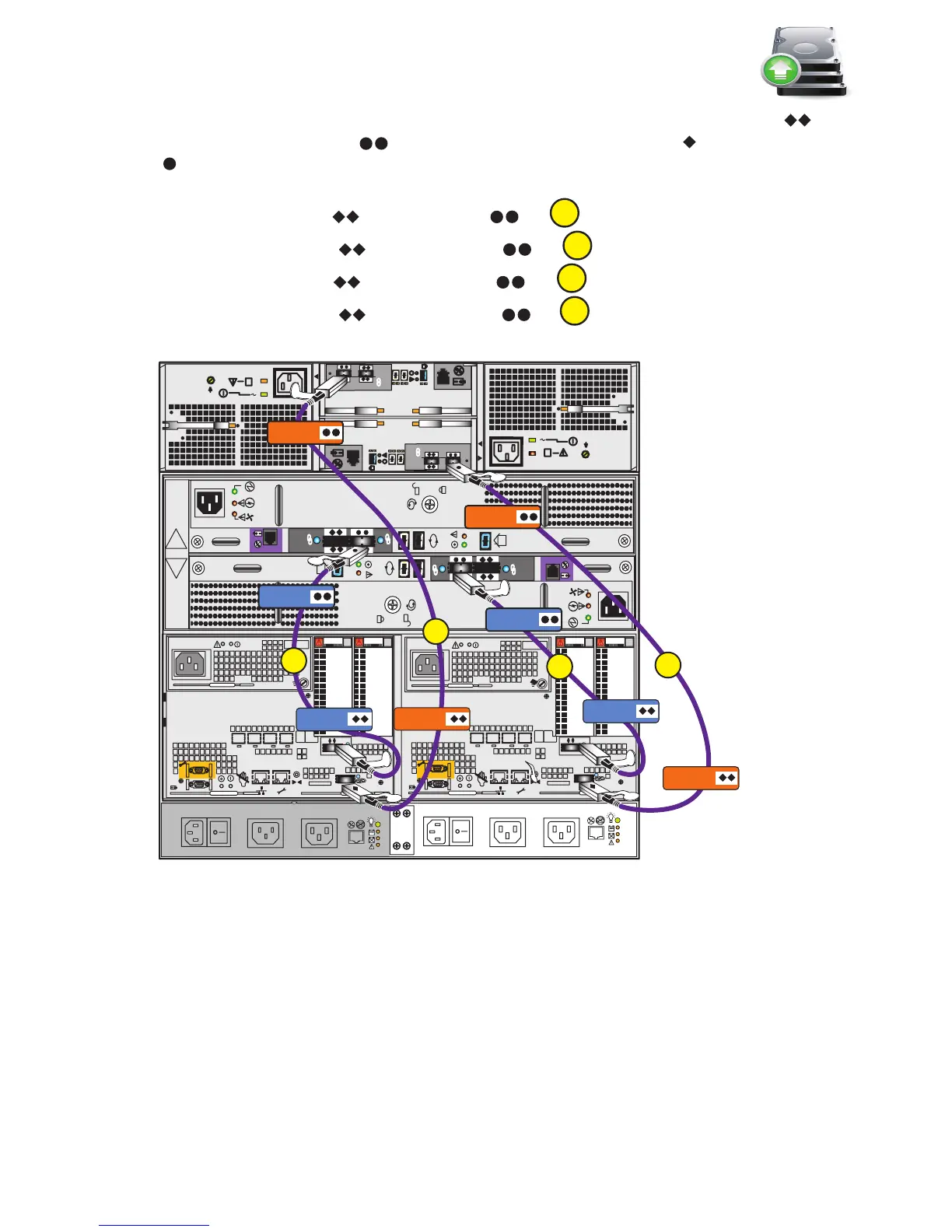

Figure 20 Cabling the first two DAEs to the storage processors
A
B
C
D
A
B
##
X4
6Gb SAS
#
X4
6Gb SAS
#
6 Gb SAS
X4
#
2
3
4
5
6Gb
SAS
8Gb
bre
1 X4
6Gb SAS
X4
2
3
4
5
6Gb
SAS
8Gb
bre
1
0 X4
6Gb SAS
B
A
Power
Power
Switch
Power
Power
Switch
0 X4
B
A
S SAS 1P A
6 Gb SAS
X4
LCC B
D
SP B SAS 0
VNX-000775
LCC A
SPA SAS 0
C
A
LCC A
SPA SAS 1
B
SP B SAS 1
LCC B
