EMC VNX5300 Block

12 EMC VNX5300 Block Installation Guide
Installing the DPE rails
The DPE rails should be installed immediately above the SPS rails.
Note: All rails must be aligned level front to back and with the companion rail, left to right.
1. Insert the adjustable 3U rail slide and seat both alignment pins into the rear channel of your
cabinet.
2. Extend the rail and align the front of the rails as shown in Figure 2.
3. Insert two retention screws in the middle two holes in the front.
4. Insert two retention screws in the back of each rail.

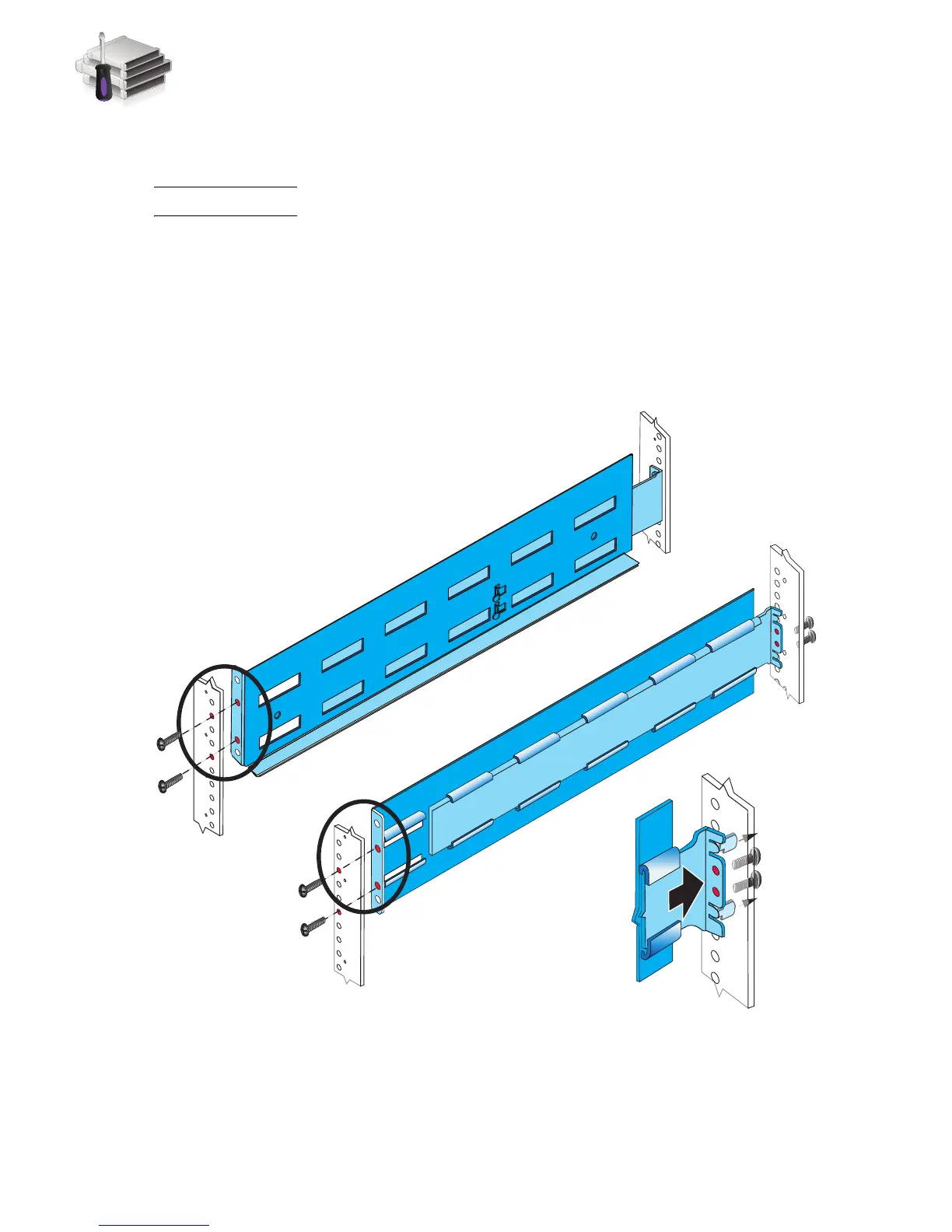

Figure 2 Installing the DPE rails
Rear
Detail
2 Alignment
pins
2 Screws
VNX-000215
R
Front
L
