EMC VNX5300 Block

Assembling DAEs 27
3. Label the cables:
a. Locate a pair of DAE cables and the sheet of labels.
b. Attach the cable labels by matching the icons on the connectors with the icons on the
labels as shown in Figure 16 and Figure 19 on page 30.
c. Continue for all the SAS cables for your system.

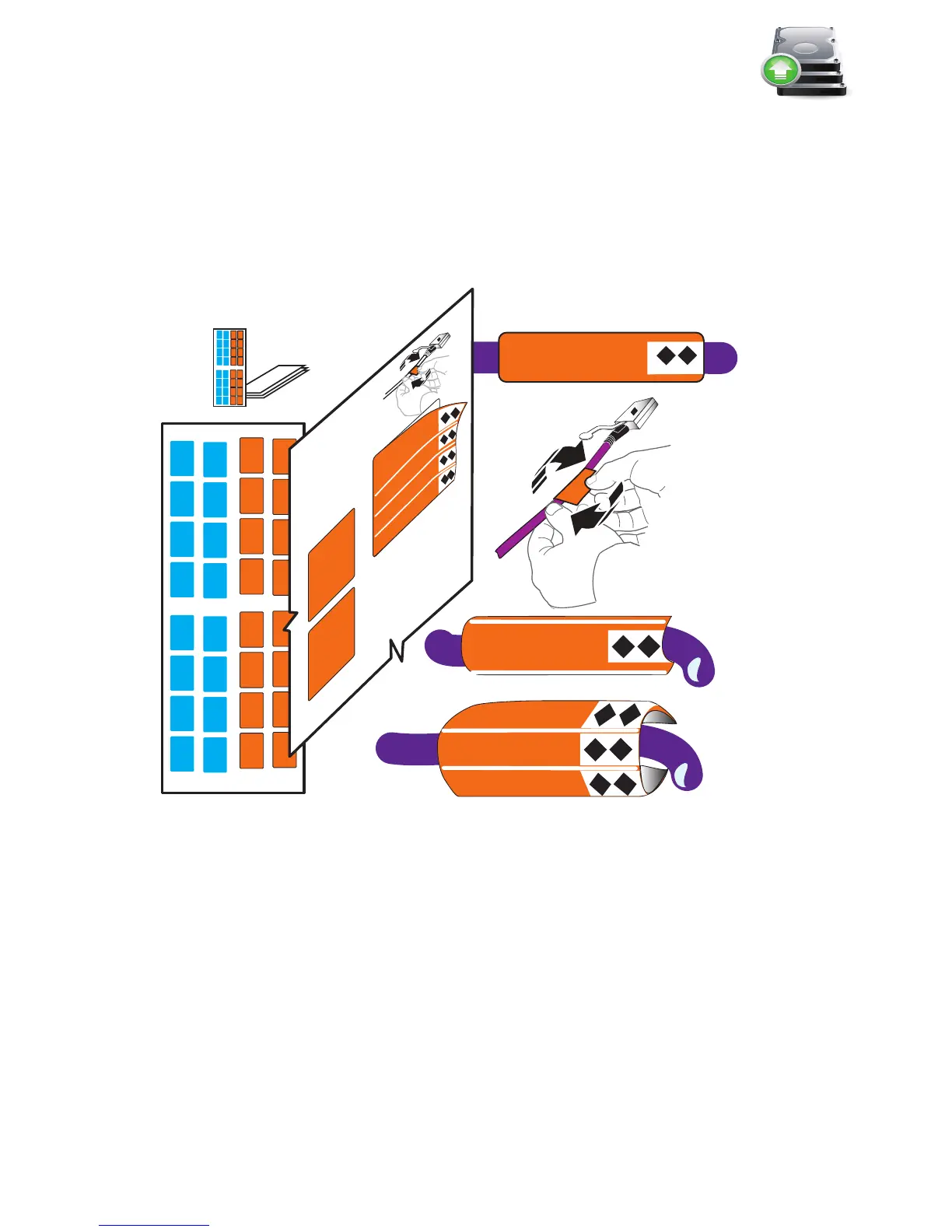

Figure 16 Attach labels to the SAS cables
Install DAE rails
1. Insert the adjustable rail slide and seat both alignment pins into the rear channel of your
cabinet.
2. Extend the rail and align the front of the rails as shown in Figure 17.
Labels
VNX-000687
SPA SAS 0
SP A SAS 0
SP A SAS 0
SP A SAS 0
SP A SAS 0
SP A SAS 0
SPA SAS 0
SPA SAS 0
SPA SAS 0
