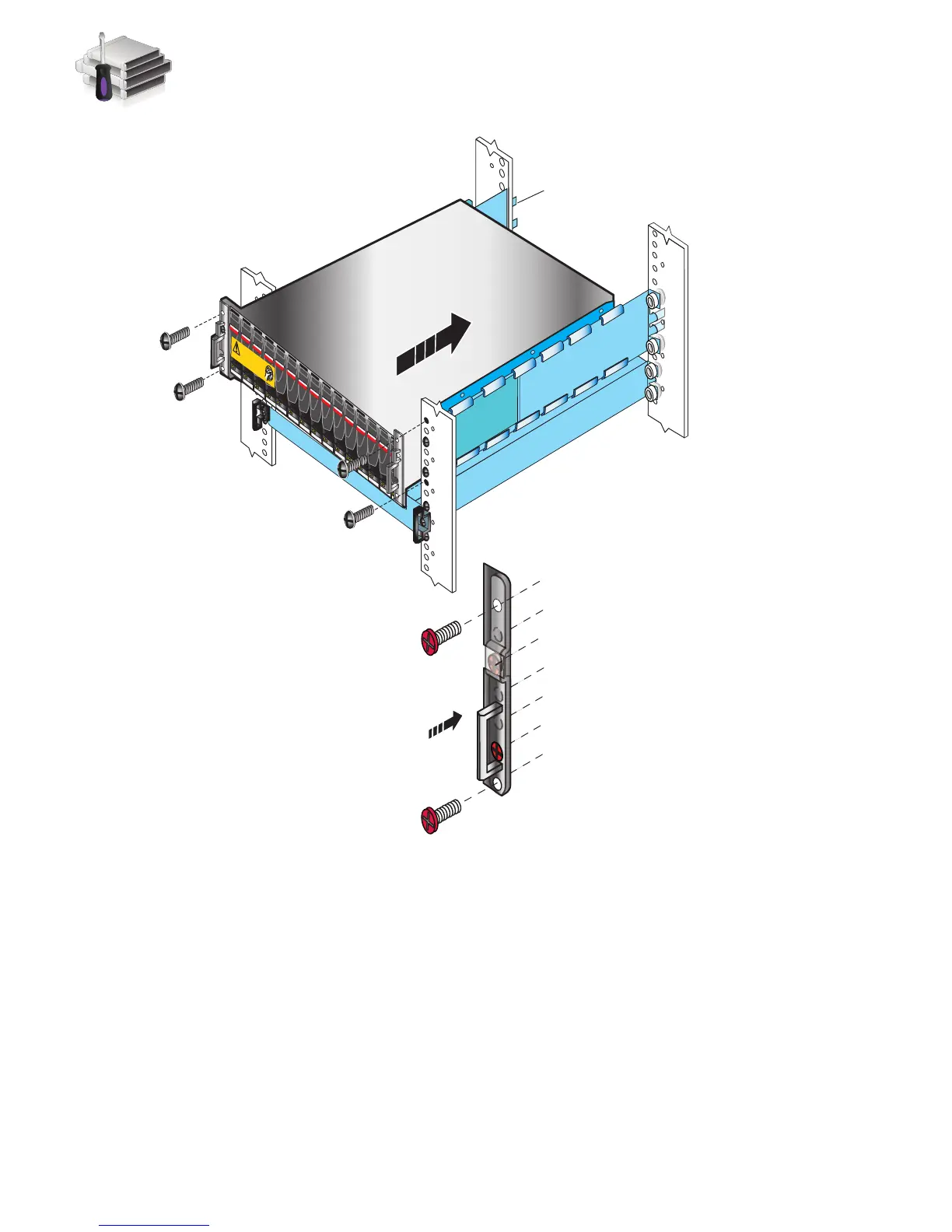

Disk processor enclosure
Standby power supply
Alignment pins
4 screws hold the
component in the cabinet
(2 per side)
VNX-000157
Front
SAS
SAS
SAS
SAS
SAS
SAS
SAS
SAS
SAS
SAS
SAS
SAS
SAS
SAS
SAS
Will Make the Array Unusable
Caution: Array Software on drives 0-4. Removing or relocating them
2 Brackets
4 Screws each side
Right side bracket
Through rack, through rail
Through component, through rack, through rail
Through component, through rack, through rail
Through rack, through rail
Rail hole
Rail hole
Rail hole
To Next Page
