Emec MTOWER PLUS Series User Manual

33

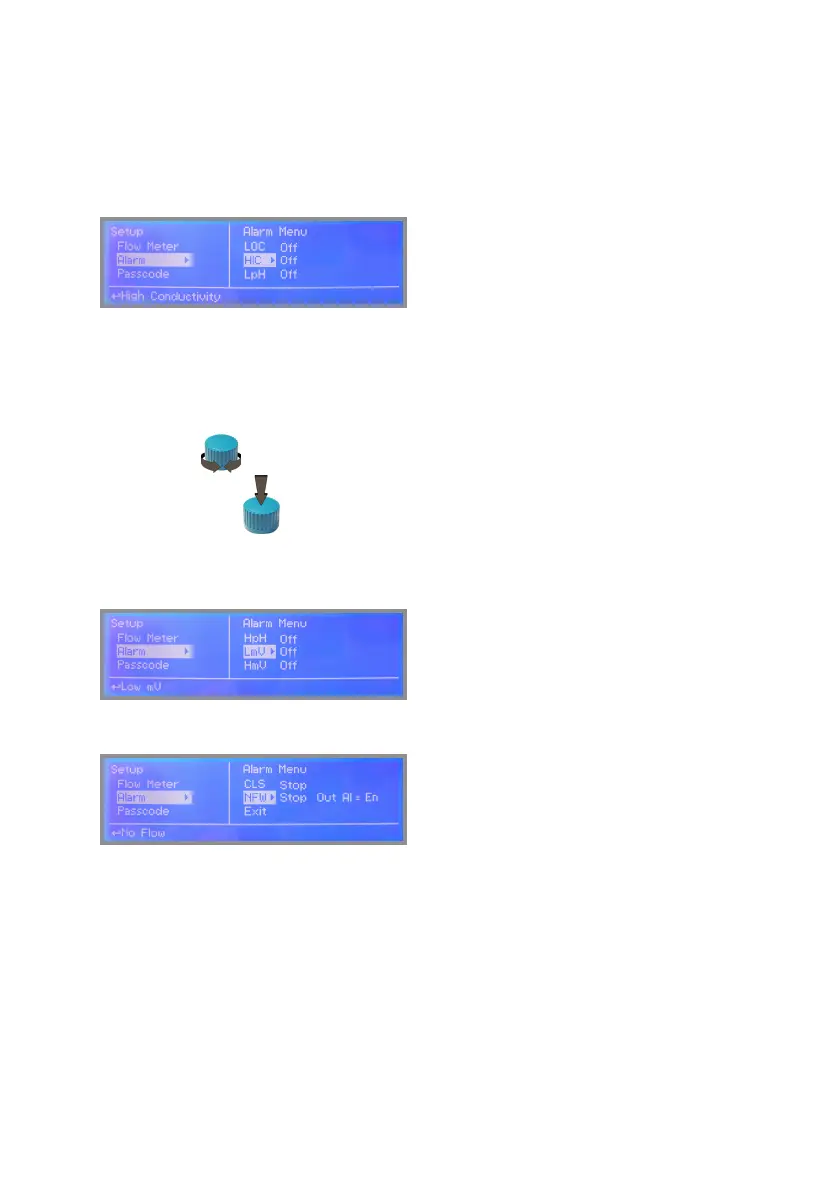

“Alarm” menu.
This menu allows to enable / disable / set all system alarms and related outputs.
To end procedure move cursor on “EXIT” and press wheel to proceed to “Save” request screen. Move wheel on “YES”
to save or “NO” to discard changes.
LOC: “LOW CONDUCTIVITY” alarm.
LPH: “LOW pH” alarm.
LMV: “LOW ORP” alarm.
OFF: alarm disabled
ABS: (absolute) alarm on set value*
TRK: (track) alarm on bleed setpoint minus track value*
Track alarm (TRK) e.g.:
Bleed setpoint is set to 4000 and track alarm is set to 1000.
Alarm will switch on at 3000.
HIC: “HIGH CONDUCTIVITY” alarm.
HPH: “HIGH pH” alarm.
HMV: “HIGH ORP” alarm.
OFF: alarm disabled
ABS: (absolute) alarm on set value*
TRK: (track) alarm on bleed setpoint minus track value*
Track alarm (TRK) e.g.:
Bleed setpoint is set to 4000 and track alarm is set to 1000.
Alarm will switch on at 5000 (4000+1000).
CLS: Chemicals level alarm.
STOP: low chemical tank level alarm is generated and related output disabled
NO: option disabled
NFW: ow sensor alarm
STOP: no ow alarm generated*
NO: option disabled
OUT AL: Alarm contact activation
EN: Alarm contact enabled
DIS: Alarm contact disabled
*Alarm contact (10-11-12) enabled, all outputs disabled.
