Installation, Operation and Maintenance Manual
MAN-02-04-97-0713-EN Rev. 1
October 2019
109
Section 13: Parts List and Drawings
Parts List and Drawings

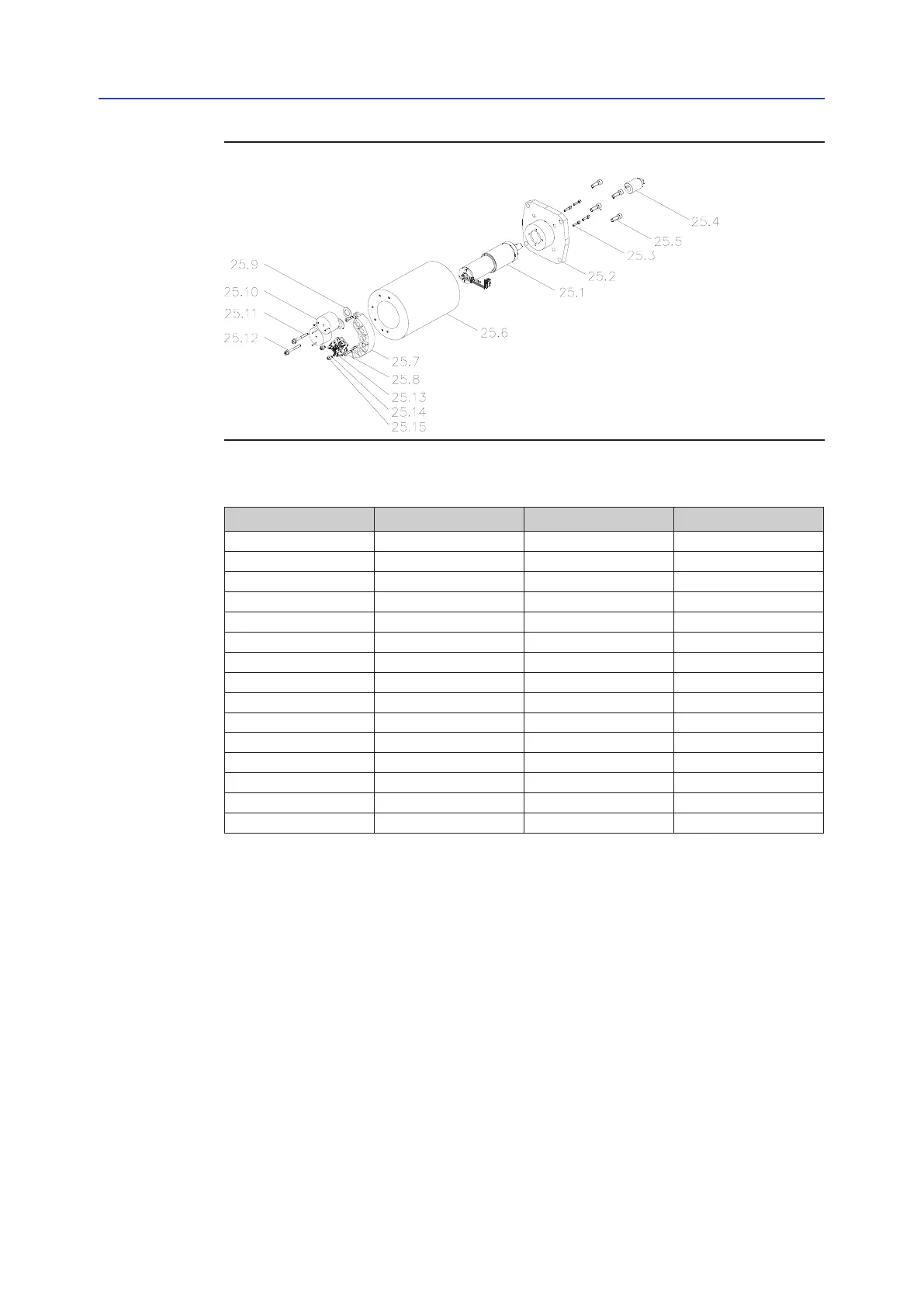

Figure 91 Electric Motor (XTE LP)
Table 23. Electric Motor (XTE LP)
Item Qty Description Material
25.1 * 1 Electric motor -
25.2 1 Flange Carbon steel
25.3 4 Screw Stainless steel
25.4 1 Motor coupling Carbon steel
25.5 4 Screw Stainless steel
25.6 1 Bracket Aluminum
25.7 1 Motor terminals board Plastic
25.8 2 Screw Stainless steel
25.9 2 Washer Plastic
25.10 * 2 Inductance coil -
25.11 2 Screw Stainless steel
25.12 2 Washer Plastic
25.13 * 1 Electronic card -
25.14 2 Screw Stainless steel
25.15 2 Washer Plastic
To Next Page
