Emerson Bettis XTE3000 - Removing the Terminal Board Enclosure

Installation, Operation and Maintenance Manual
MAN-02-04-97-0713-EN Rev. 1 October 2019
19
Installation
Section 3: Installation

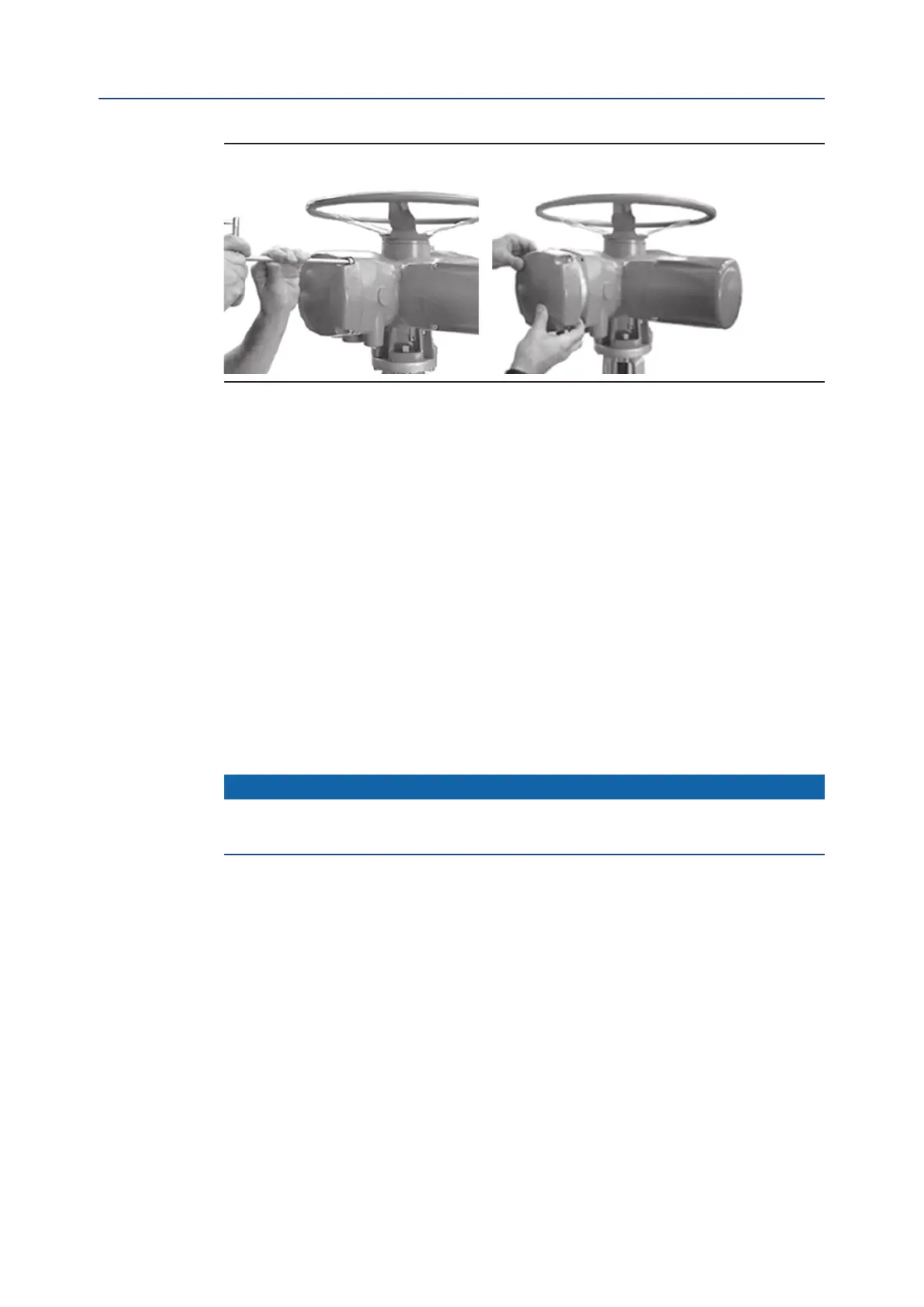

Figure 22
3.7 Removing the Terminal Board Enclosure
The sealing of cables and conduit entries should be carried out in accordance with the
relevant national standards or the regulatory authorities that certied the actuators. This is
especially true for units that are certied for use in hazardous areas, where the method of
sealing must be to an approved standard and cable glands, reducers, plugs, and adapters
must be approved and separately certied.
Standard cable entries (housing)
1" NPT, Qty 2
1-1/2" NPT, Qty 1
Optional: 3/4" NPT, up to Qty 2
On request, certied conduit entry adapters may be added
(Metric, Pg, Rc, ASA, etc.)
Remove the conduit entry plugs.
NOTICE
All accessories (including cable glands) must comply with approved specications for the
site requirements and be certied according to the standard directive.
To guarantee a weather-proof and explosion-proof t, screw the cable glands tightly
(at least 5 turns) and coat them with a thread sealant. The use of a thread sealant is
necessary in explosion-proof and weather-proof applications.
