B.7.2.2 Base Actuator With Extension [A] on the Control Compartment
Extension [A] provides an additional entry for a cable or conduit connection or for
connection of an external ATEX-certied apparatus.
With reference to Figure B-6, the thread form/size for the entry is as follows:
Table B-5.
Entry Standard Size
Optional
6 M25x1.5
3/4" NPT

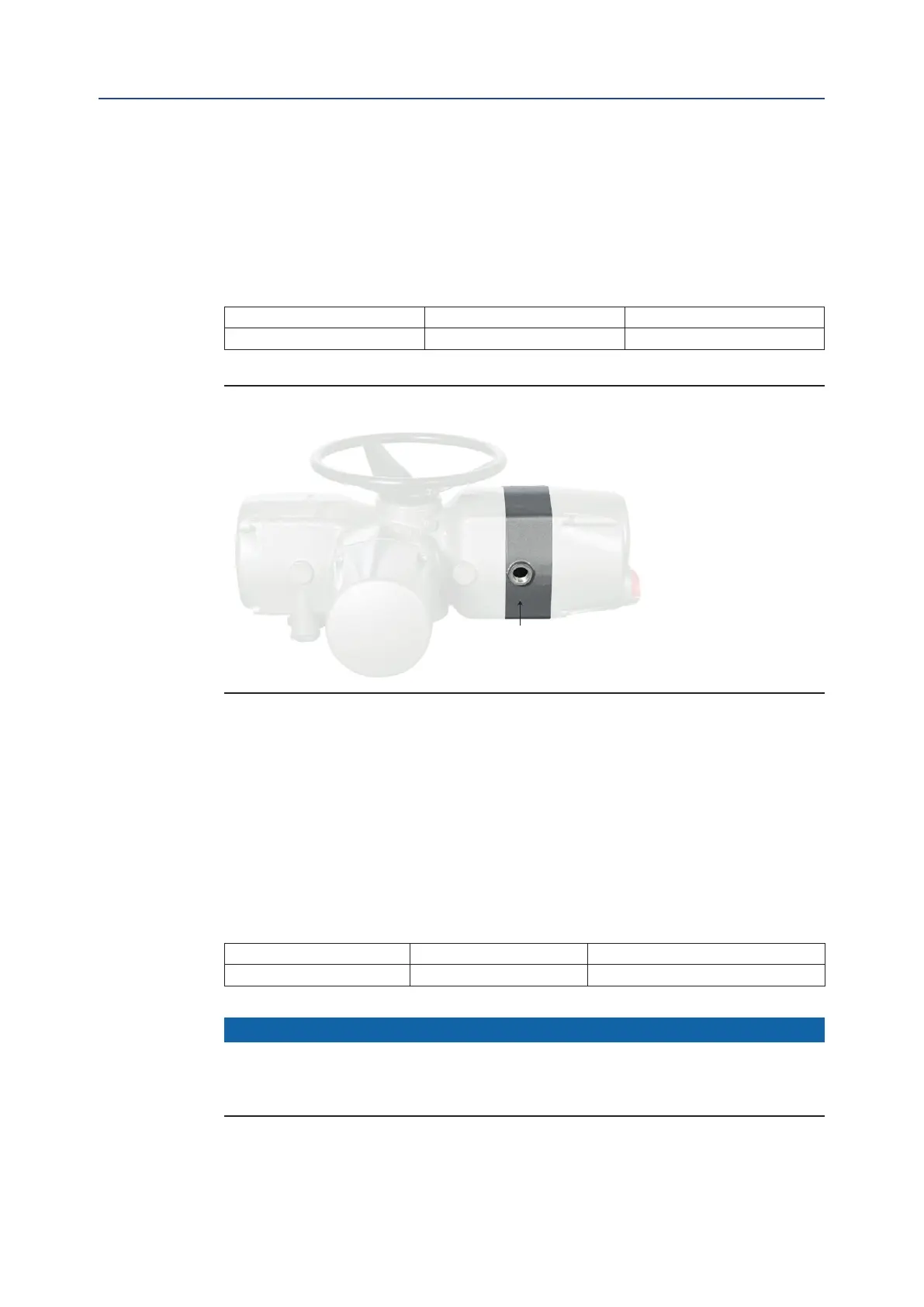

Figure B-6 Base actuator with extension [A] on the control compartment
Entry 6
B.7.2.3 Base Actuator with Extensions [B] or [C] on the
Terminal Board Compartment
Extension B provides up to 9 additional entries for cable or conduit connection.
Extension [C] is equipped with an electronic card (Probus or Lonworks Removable
Connection Modules) and provides up to 6 additional entries.
With reference to Figure B-7, the thread form/size for the entries is as follows:
Table B-6.
Entries Option 1 Standard Entries
Option 2 Alternative Entries (ISO 965)
A, B, C, D, E, F, G, H, K 1/2" NPT
M20x1.5
NOTICE
When alternative entries according to ISO 965 are used, indication of the dimensions is
imprinted on the adapter bush or directly on the housing when ISO 965 entries are created
by machining the housing.
