Section 10: View Routines
View Routines

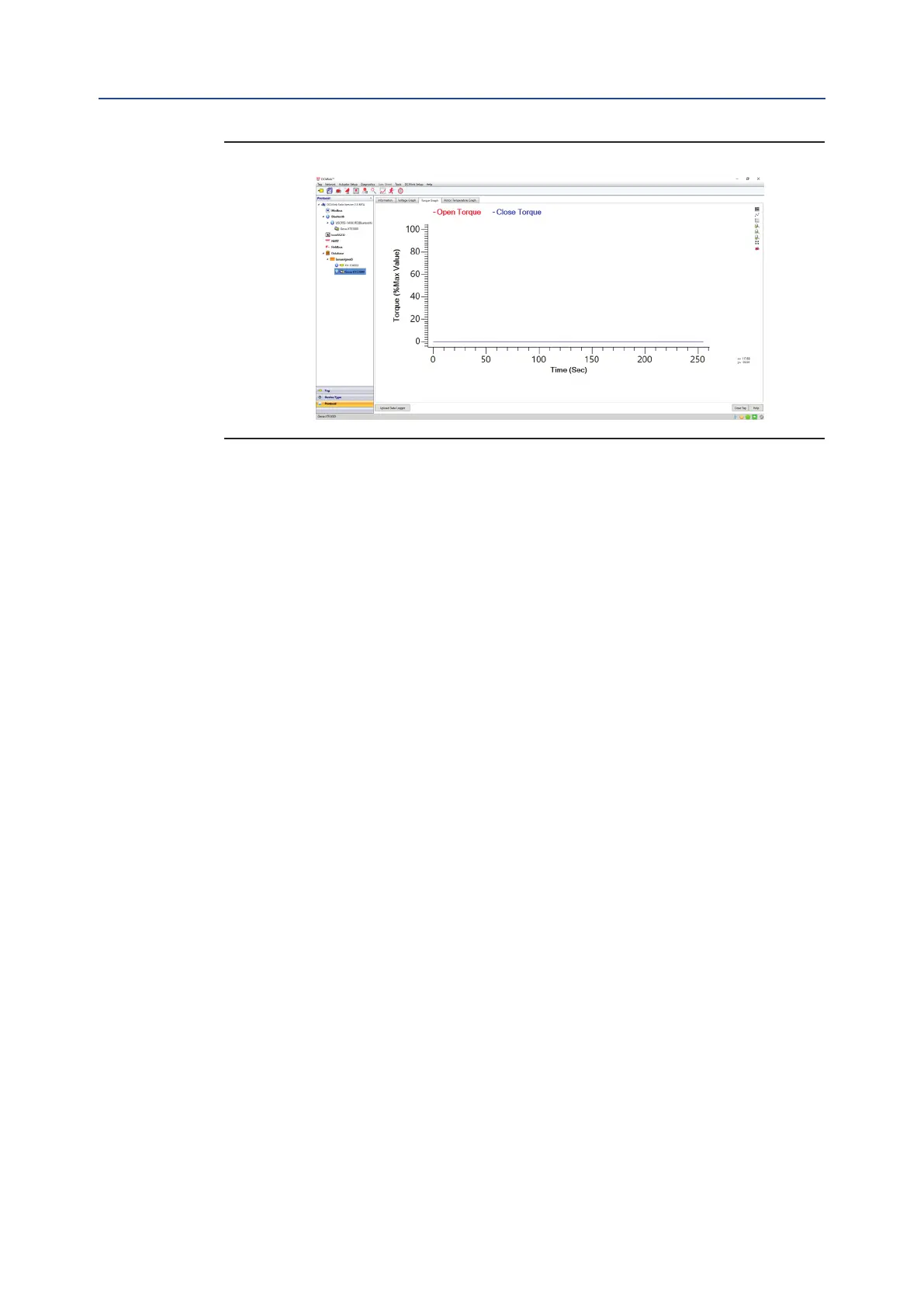

Figure 69 T-Recorder Mode
T-logger stops recording if a torque alarm is triggered. The last 256 samples remain in the
actuator memory until a new start of the logger is initiated.
EVENT mode: the XTE3000 detects the type of received command (OPEN or CLOSE),
the source of the command (local controls, remote controls, bus, etc.), and the date
and time of the command. Up to 128 EVENTS can be memorized. As the memory
becomes full, the logger stops memorizing events or overwrites the previous data
according to the selected MEMORY MODE (“stop when full” or “continuous”). If
“continuous” was selected, old events are canceled in place of new events and the
newest event becomes the latest. Up to 50 cycles of full memory overwriting are
possible before the logger stops. The START DATE and START TIME x date and
time to start a recording operation. By using a PDA or PC, the collected data can be
viewed via a graph or event table. The parameter “sampling time” is not used.
Figure 70 shows an example of a report in EVENT mode.
View procedure
Move the local selector to OFF and then simultaneously press OPEN and STOP. Select
the language according to the instructions (see “Entering the view mode”). When
the message displayed is “VIEW MODE OK?” press YES. Press NO to scroll through
the list of available menus and press YES to select the "Maintenance" menu.
Press NO to scroll through the list of routines and press YES to select "Data logger".
Press YES to view the MODE, the SAMPLING time, the MEMORY mode, the start
DATE, and the start TIME.
Press YES to return to the data logger. Press NO to exit.
