10 Chapter3 Mechanical Installation
Liebert. PEX+Series Precision Air Conditioner User Manual

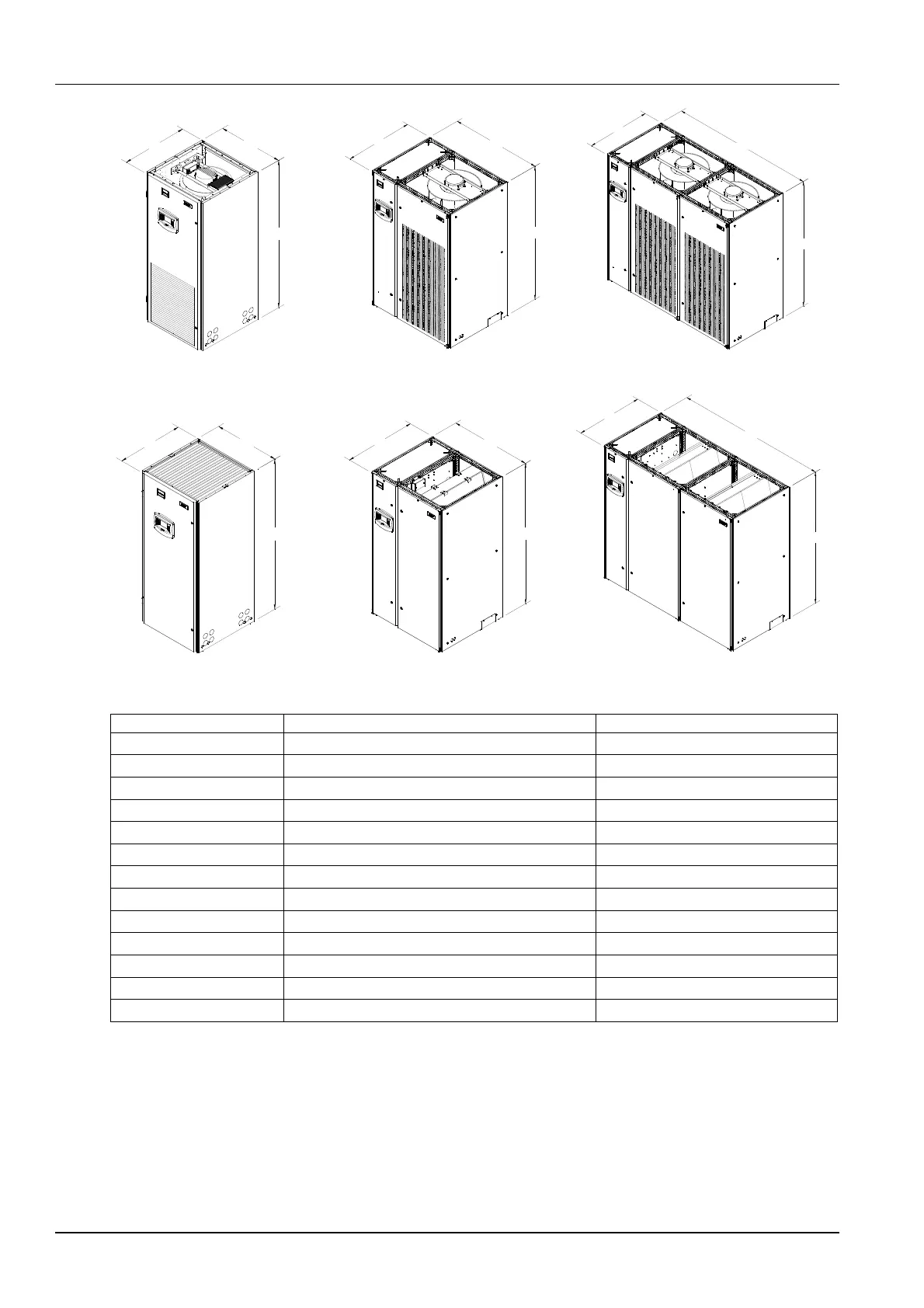

Figure 3-4 Outline drawings of the upflow indoor unit (unit: mm)
Figure 3-5 Outline drawings of the downflow indoor unit
Table 3-1 Dimensions and weight of indoor unit
Model
Dimensions (W×D×H)(mm)
Net weight (kg)
P1020U(D)A13C
853×874×1970
320
P1025U(D)A13C
853×874×1970
340
P1030U(D)A13C
1130×995×1975
400
P1035U(D)A13C
1130×995×1975
420
P1040U(D)A13C
1330×995×1975
460
P1040U(D)A13S
1330×995×1975
480
P1050U(D)A13C
1330×995×1975
530
P1050U(D)A13S
1330×995×1975
570
P2060U(D)A13S
1830×995×1975
690
P2070U(D)A13S
1830×995×1975
730
P2080U(D)A13S
2230×995×1975
770
P2090U(D)A13S
2230×995×1975
805
P2100U(D)A13S
2230×995×1975
810
3.3.2 Dimensions and weight of condenser
Refer to condenser user manual for the condenser dimensions and weight.
3.3.3 Plenum dimensions (for upflow unit)
The dimensions of plenum are shown in Table 3-2.
D
H
W
W
D
H
W
D
H
W
D
H
W
D
H
W
H
D
