Table 3-2 Plenum dimensions (unit: mm)
Model
D(Depth)
W(Width)
H(Height)
P1020 to P1025
857
863
400(600, optional)
P1030 to P1035
995
1130
400(600, optional)
P1040 to P1050
995
1330
400(600, optional)
P2060 to P2070
995
1830
400(600, optional)
P2080 to P2100
995
2230
400(600, optional)
 Note
 If the height of the plenum selected for air conditioner unit exceeds 600mm, consult Emerson for non-standard
production.
3.3.4 Positions and dimensions of air outlet
Base pallet cut-out location dimensions

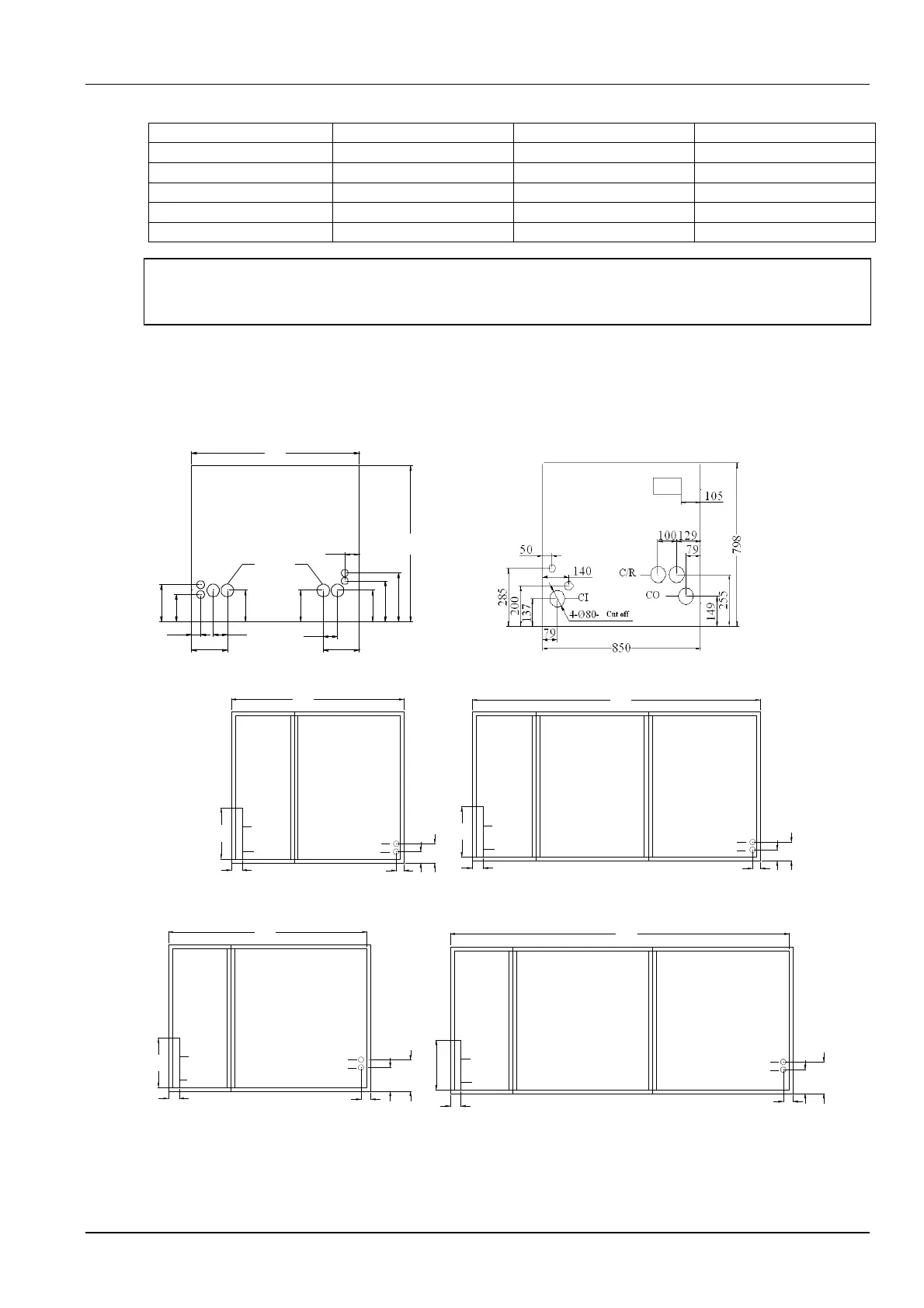

The cutout position and dimensions are shown in Figure 3-6.
140
45
181
72
161 161
181
72
72
210
250
161
C/R
P
C/R
850
798
190
P1020 and P1025 unit cut-out location
1130mm/1830mm unit cut-out location
1330mm/2230mm unit cut-out location
P: Cable inlet/outlet
D: Drain pipe hole
H: Humidifier incoming water pipe hole
C/R: cooling water inlet and outlet pipe holes/refrigerant inlet and outlet pipe holes
Figure 3-6 Base pallet cut-out locations of upflow series (unit: mm)
70
120
49
H
D
69
320
C / R
P
1130
70
120
49
H
D
69
320
C / R
P
1830
H
D
205
63
69
320
C / R
P
155
1330
H
D
320
205
C / R
P
155
69
63
2230
