Chapter 6 Application Of INTELLISLOT 63
Liebert. PEX+Series Precision Air Conditioner User Manual

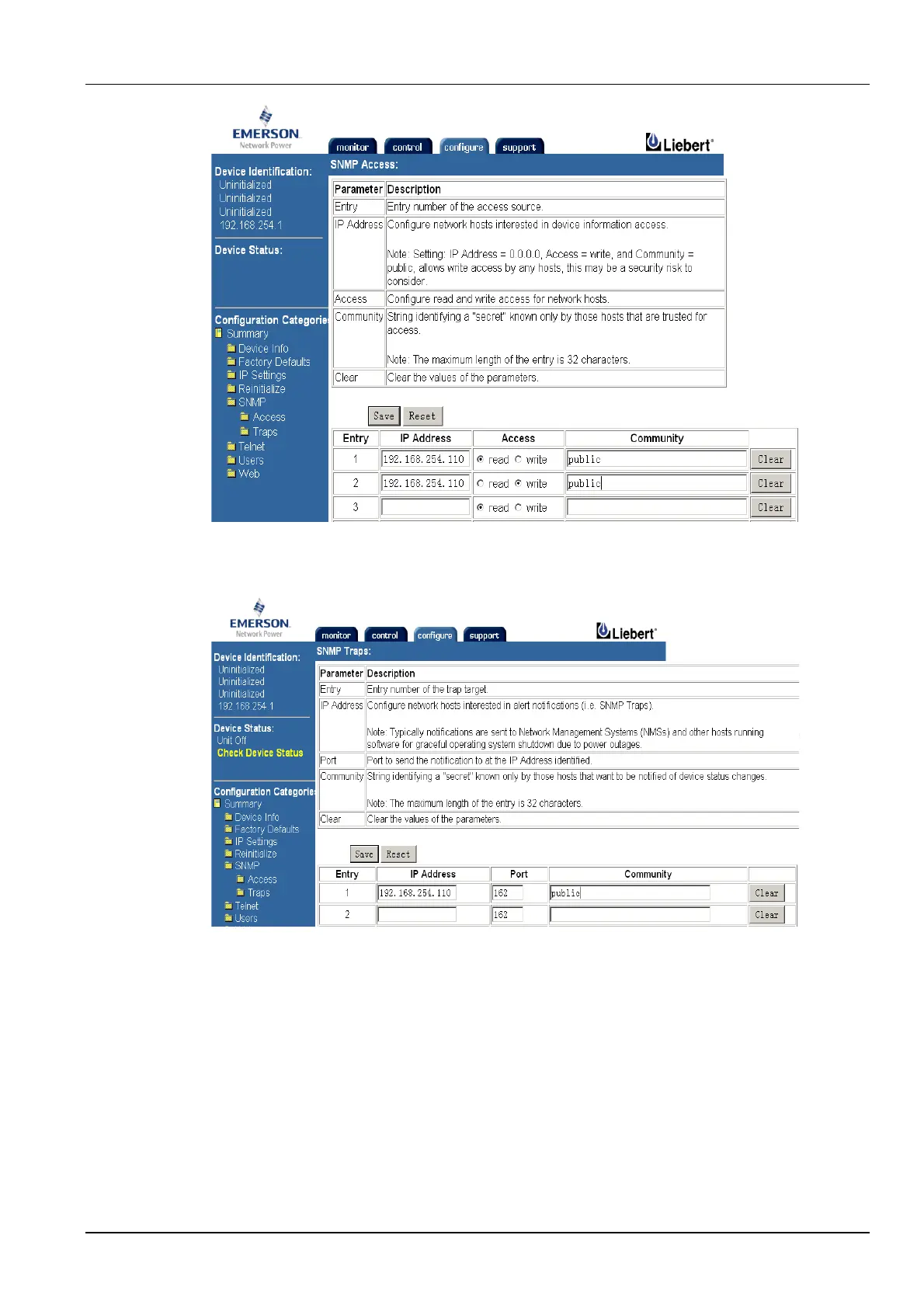

Figure 6-12 NMS configuration interface of SNMP host monitoring center (1)
5. Expand the SNMP node at the left side of the interface shown in Figure 6-13 and click Traps to set IP Address,
Port and Community of the NMS used for receiving Traps. After modifying, you must click Save to save the setting.
Figure 6-13 NMS configuration interface of SNMP host monitoring center (2)
6.4 Host Communication Networking Diagram
The networking diagram of the TCP/IP communication card (SNMP protocol) is shown in Figure 6-14. The connection
number of air conditioner is not limited.
