Position and dimensions of air outlet on top cover

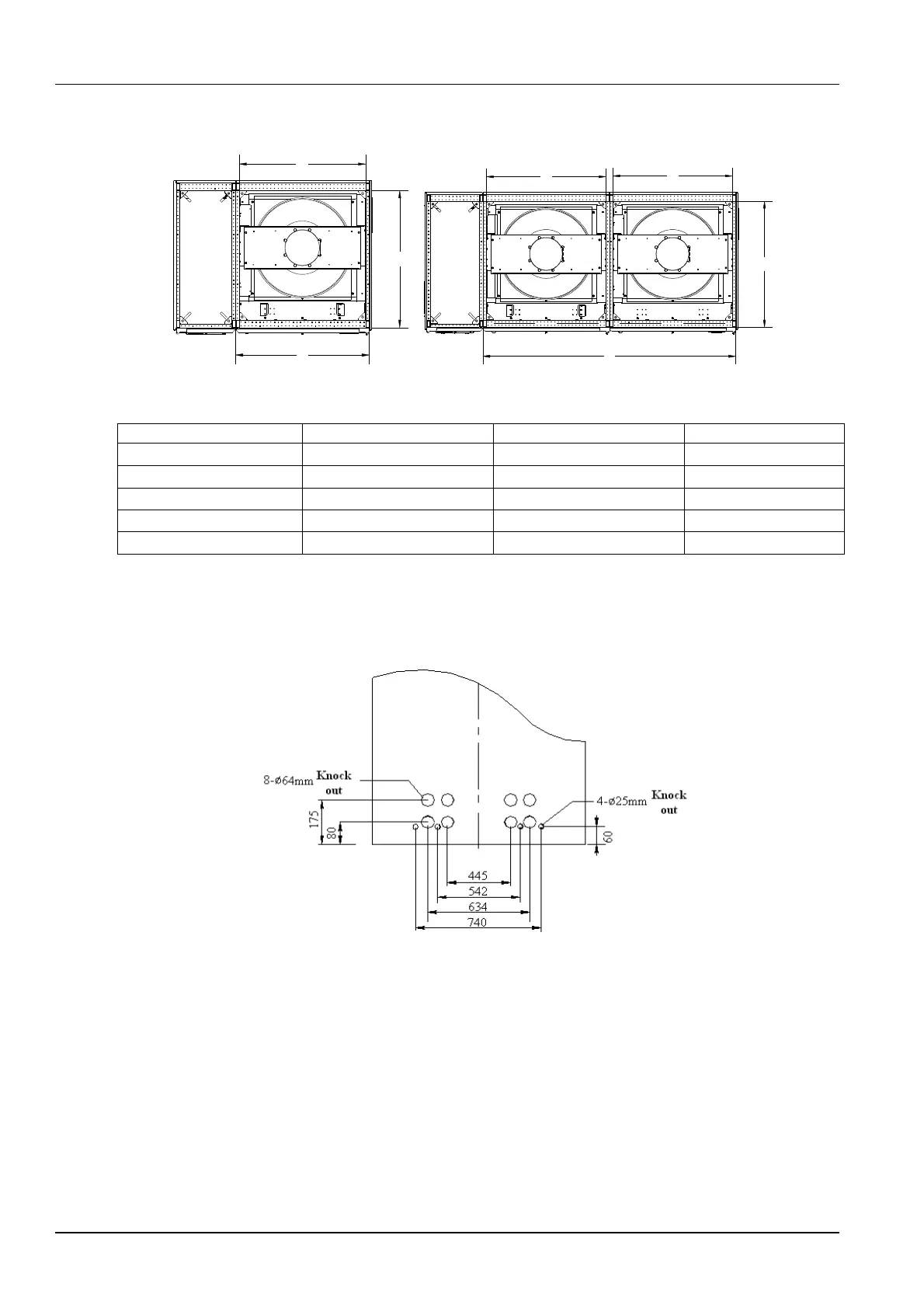

The position and dimensions of air outlet on top cover of upflow unit are shown in Figure 3-7 and Table 3-3.
Figure 3-7 Position of air outlet on top cover of upflow unit
Table 3-3 Dimensions of air outlet on top cover of upflow unit (unit:mm)
Side panel knock-out locations
If piping and wiring from the base are difficult, connection from side panel can be selected. The locations and
dimensions of knock-out holes are shown in Figure 3-8.You should select the inlet and outlet holes according to the
actual needs. Ensure only one service is used per opening.
P1020 and P1025 series knock-out
