ROC800-Series Instruction Manual
Revised July-2017 Installation and Use 2-7
2. Unscrew the two captive screws on the face of the cover.
3. Using the tab at the left side of the removable terminal block, pull
the module cover straight out from the ROC800 housing.
Note: If you remove a module for an extended period, install a module
cover plate over the empty module slot to keep dust and other
matter from getting into the ROC800.
To install a module cover:
1. Place the module cover over the module slot.
2. Screw the two captive screws on the module cover plate.
3. Replace the wire channel cover.

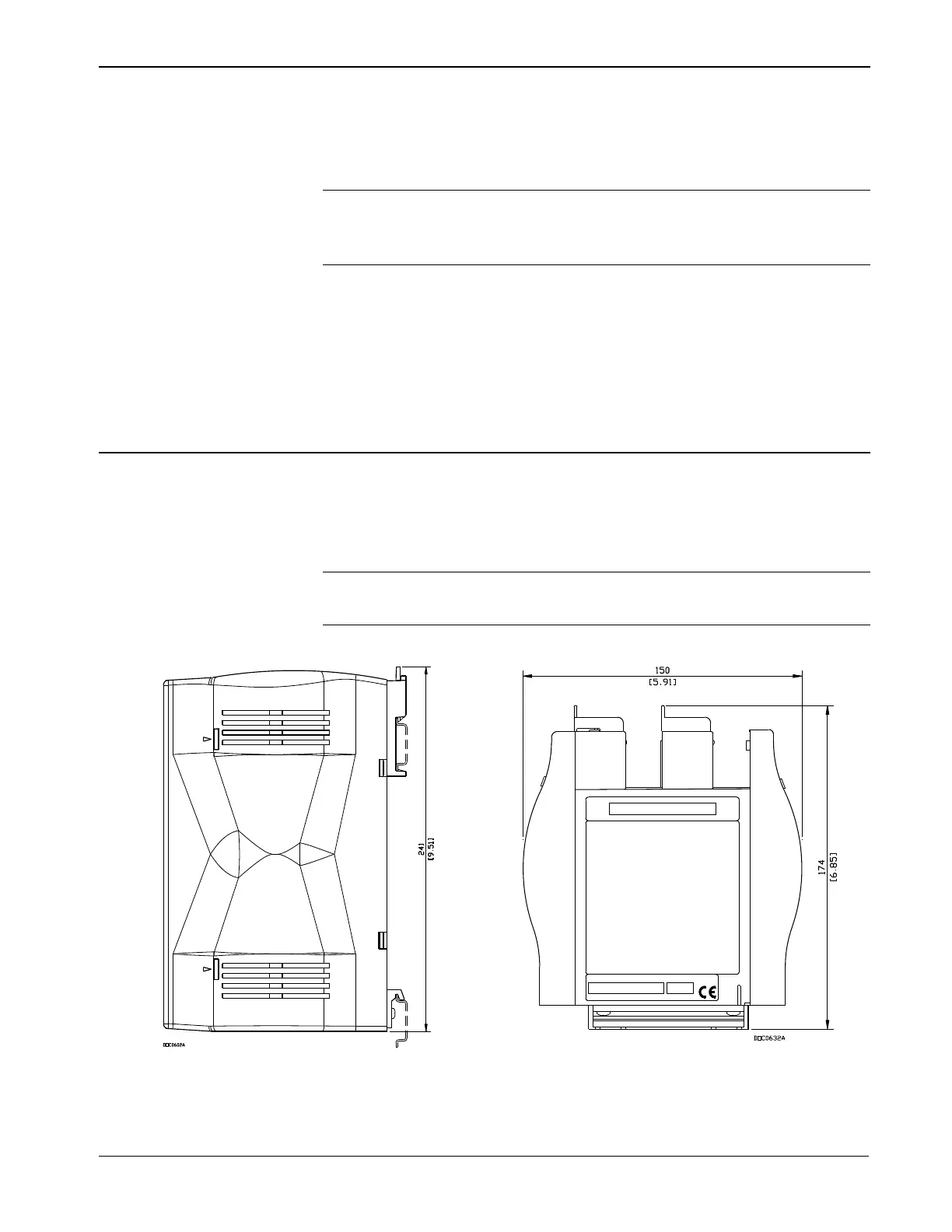

2.4 Mounting the ROC800 on a DIN Rail
When choosing an installation site, be sure to check all clearances.
Provide adequate clearance for wiring and service. The ROC800 mounts
on Type 35 DIN rails and requires two strips of DIN rail. Refer to
Figures 2-1, 2-2, and 2-3.
Note: English measurement units (inches) appear in brackets in the
following figures.
