Revised July-2017 Power Connections 3-7
VOLTAGE
DISCONNECT
LOW
POWER
REGULATOR
SOLAR
SOLAR
PANEL

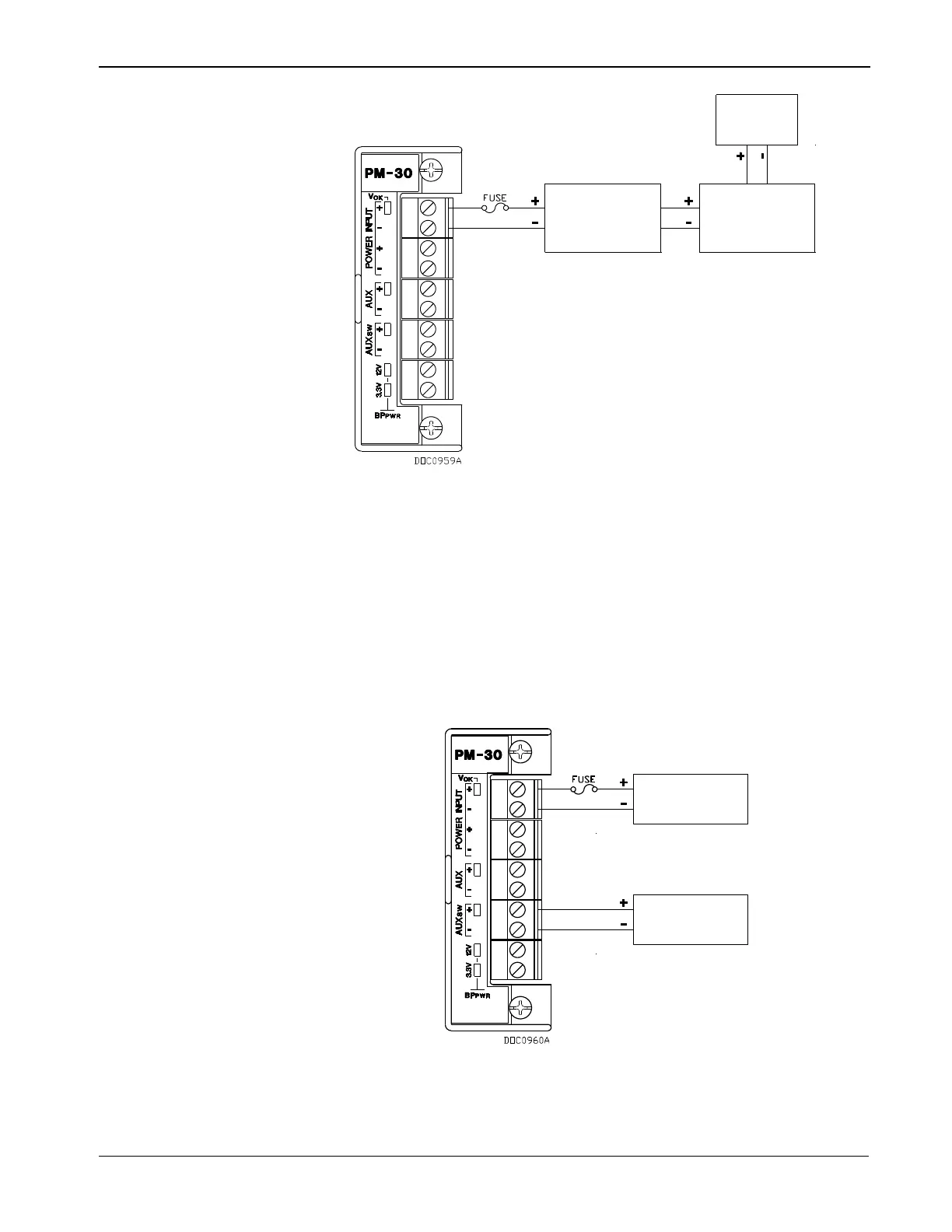

Figure 3-5. Low voltage disconnect device between the solar regulatory
circuitry and the ROC800
 Use the Auxiliary Switch (AUX SW) output terminals on the
PM-30. If shutting down power to an external device is sufficient,
then connecting to the Auxiliary Switch (AUX SW) terminals on the
PM-30 power module ensures power is cut off when the LoLo alarm
is triggered. This may be the preferred solution if the ROC800
provides critical controls. When the LoLo alarm is triggered and the
ROC800 CPU goes into sleep mode, it cuts power to the Auxiliary
Switch (AUX SW) terminals.
POWER
SUPPLY
EXTERNAL
DEVICE
Figure 3-6. Auxiliary Switch (AUX SW) output terminals on the PM-30
